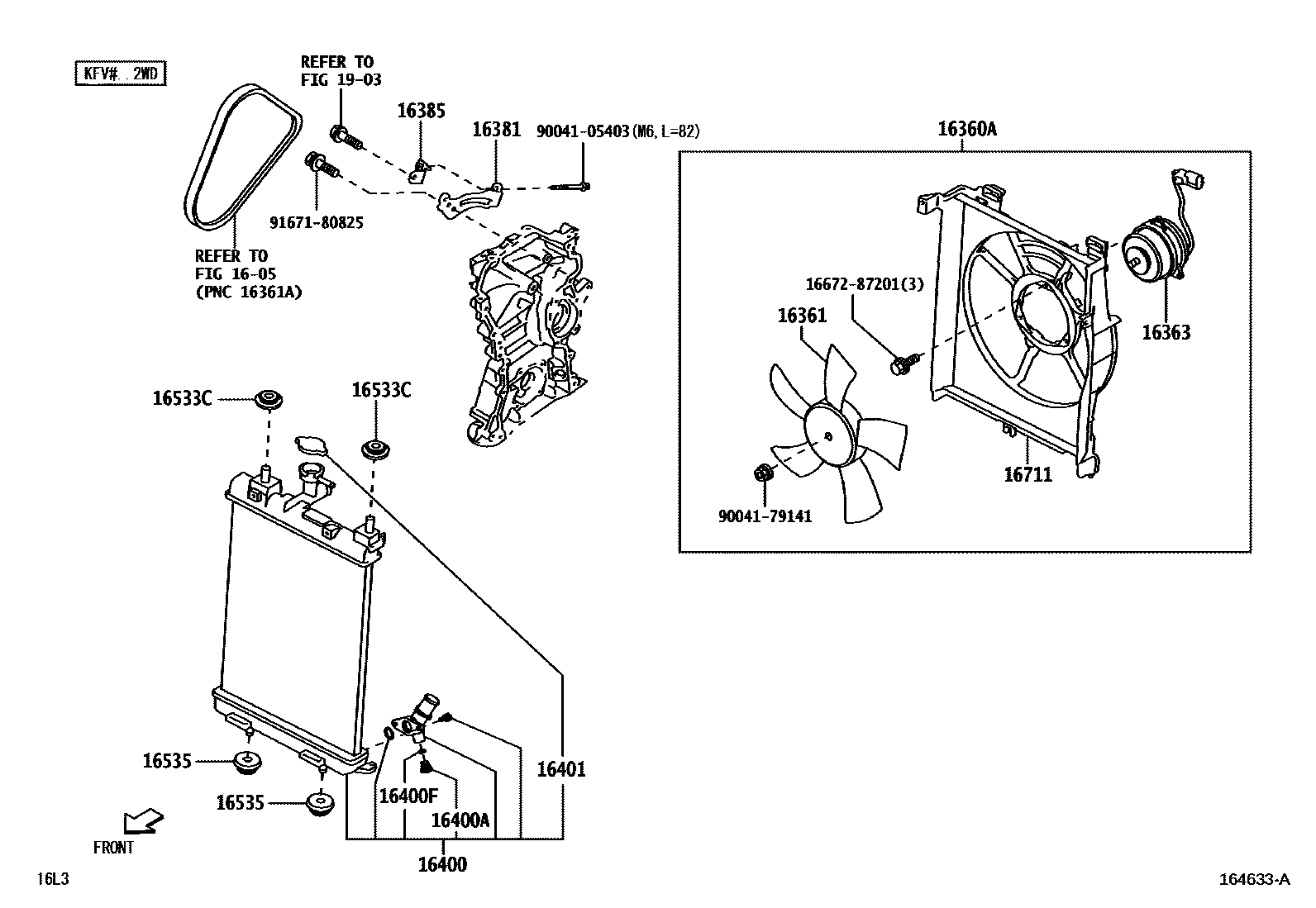

RADIATOR & WATER OUTLET

0001 12WD 0002 14WD 0003 1 0004 1 0005 1 0006 1

1605V-BELT

→ Go to FIG 16-05

16360AFAN ASSY, W/MOTOR

main16360-B2071iKFDET..L585201306-201508

main16360-B2141iKFVE..L585..PS2;KFDET..L575..PS2201109-201306

main16360-B2151iKFVE..L575..PS2201109-201306

main16360-B2210iKFDET..L585201508

16361FAN

main16361-B2030iKFDET..L585201306

main16361-B2060iKF#..L575;KFVE..L585201306

16363MOTOR, COOLING FAN

main16363-B2020iKFDET..L585201109-201205

main16363-B2030iKFDET..L575201109-201205

main16363-B2060iKFDET..L585201508

16381BAR, FAN BELT ADJUSTING

main16381-B2011iKFDET..L575,585201109-201205

16385SLIDER, FAN BELT ADJUSTING

main16385-B2021iKFDET..L575,585201109-201205

16400RADIATOR ASSY

main16400-B2140iKFVE..L585201306-201603

main16400-B2141iKFVE..L585201604

main16400-B2190iKFVE..L575201306-201402

main16400-B2201iKFVE..L575..PS2201109-201306

main16400-B2312iKFVE..L585..PS2201109-201306

main16400-B2320iKFDET..L575,585..PS2201109-201306

main16400-B2370iKFVE..L575201403

16400ACOCK SUB-ASSY, RADIATOR DRAIN

main16417-B2010iKFVE..L575201109-201204

main16417-B2020iKFVE..L585..PS2;KFDET..L575,585..PS2201109-201306

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16442-97201iKFVE..L575201306

main16442-B2010iKFVE..L585201306-201603

16401CAP SUB-ASSY, RADIATOR

main16401-87211iKFVE..L575201109-201204

main16401-B2010iKFDET..L575,585201306

16533CGROMMET(FOR RADIATOR SUPPORT)

main90044-80621×2iKFVE..L575,585201109-201204

16535SUPPORT, RADIATOR, LOWER

main90044-80592×2iKFVE..L575,585201109-201204

16711SHROUD, FAN

main16711-B2080iKFVE..L585..PS2;KFDET..L575,585..PS2201109-201306

main16711-B2090iKFVE..L575201109-201204

1903ALTERNATOR

→ Go to FIG 19-03

1667287201

main16672-87201

9004105403

main90041-05403

9004179141

main90041-79141

9167180825

main91671-80825
