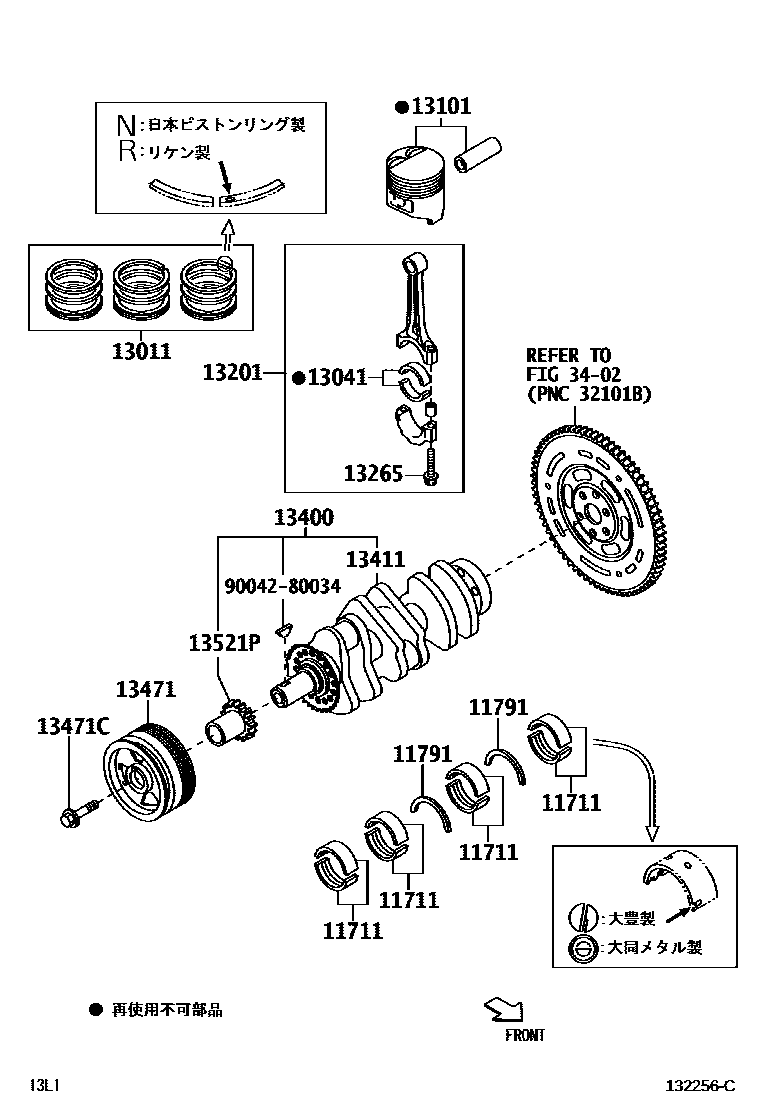

CRANKSHAFT & PISTON

0001 1 0002 1

11711BEARING, CRANKSHAFT

main11701-B2011-02×4iKF#..L575,585201109-201306

main11701-B2011-03×4iKF#..L575,585201109-201306

main11701-B2011-04×4iKF#..L575,585201306-201701

main11701-B2011-05×4iKF#..L575,585201306-201701

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B2010×2iKFVE..L575,585201109-201204

13011RING SET, PISTON

main13011-B2041iKFDET..L575,585;KFVE..L575,585..PS1201109-201306

main13011-B2043iKFVE..L575,585201307-201505

main13011-B2091×3iKFVE..L575,585201306-201307

13041BEARING, CONNECTING ROD

main13041-B2010-01×3iKF#..L575,585201109-201306

main13041-B2010-02×3iKF#..L575,585201306-201701

main13041-B2010-03×3iKF#..L575,585201306-201701

13101PISTON SUB-ASSY, W/PIN

main13101-B2050×3iKFVE..L575,585201109-201204

main13101-B2060×3iKFDET..L575,585201205-201306

main13101-B2061×3iKFDET..L575,585201307

main13101-B2080×3iKFDET..L575,585201109-201205

main13101-B2230×3iKFVE..L575,585201204-201306

main13101-B2231×3iKFVE..L575,585201307-201509

main13101-B2232×3iKFVE..L575,585201510

13201ROD SUB-ASSY, CONNECTING

main13201-B9060×3iKFVE..L575,585201109-201204

13265BOLT, CONNECTING ROD

main13265-B9020×6iKF#..L575,585201109-201306

13400CRANKSHAFT ASSY

main13401-B2901iKF#..L575,585201109-201111

13411CRANKSHAFT

main13401-B2010iKF#..L575,585201109-201306

13471PULLEY, CRANKSHAFT

main13470-B2011iKFVE..L575,585201109-201204

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90041-05369iKF#..L575,585201306

13521PPULLEY, CRANKSHAFT TIMING

main13521-B2010iKFDET..L575,585201109-201205

main13521-B2020iKFVE..L575,585201306

3402TORQUE CONVERTER, FRONT OIL PUMP(CVT)

→ Go to FIG 34-02

9004280034

main90042-80034

14 parts on this diagram · 2 diagrams in section
