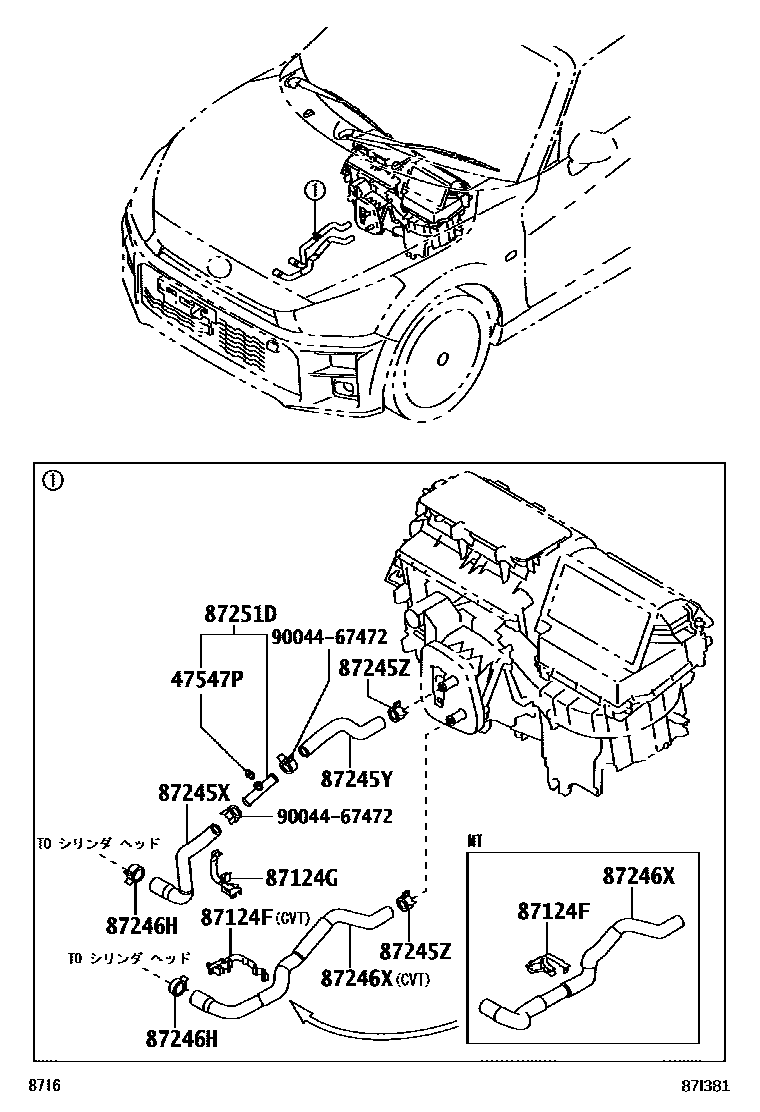

Toyota COPEN — HEATING & AIR CONDITIONING - WATER PIPING
47547PPLUG, BLEEDER(FOR WATER JOINT)
87124FCLAMP, HEATER HOSE, NO.1
87124GCLAMP, HEATER HOSE, NO.2
87245XHOSE, HEATER WATER
87245YHOSE, HEATER WATER
87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)
87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)
87246XHOSE, HEATER WATER
87251DJOINT, WATER, NO.1
9004467472
10 parts on this diagram · 1 diagram in section
HEATING & AIR CONDITIONING - WATER PIPING for Toyota COPEN
This section contains 10 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota COPEN. Key components include: PLUG, BLEEDER(FOR WATER JOINT), CLAMP, HEATER HOSE, NO.1, CLAMP, HEATER HOSE, NO.2, HOSE, HEATER WATER.
