HEADLAMP

81107COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH

main81107-B2090iLA400201910

81108COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH

main81107-B2090iLA400201910

81110BBULB(FOR HEADLAMP, NO.1)

main90049-51176iLA400201910

81119SCREW, HEADLAMP

main90041-59473iLA400201910

81134GASKET, HEADLAMP

main9004C-30005iLA400201910

81135UNIT ASSY, HEADLAMP, RH

main81145-B2080iLA400201910

81135CCOVER, HEADLAMP BACK, NO.1

main81135-B2030iLA400201910

81136ECOVER, HEADLAMP, NO.2

main81136-B2050iLA400201910

81175UNIT ASSY, HEADLAMP, LH

main81185-B2080iLA400201910

81195SCREW, HEADLAMP

main93540-54012iLA400201910

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90049-51179iLA400201910

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81945-B1010iLA400201910

9004119965

main90041-19965

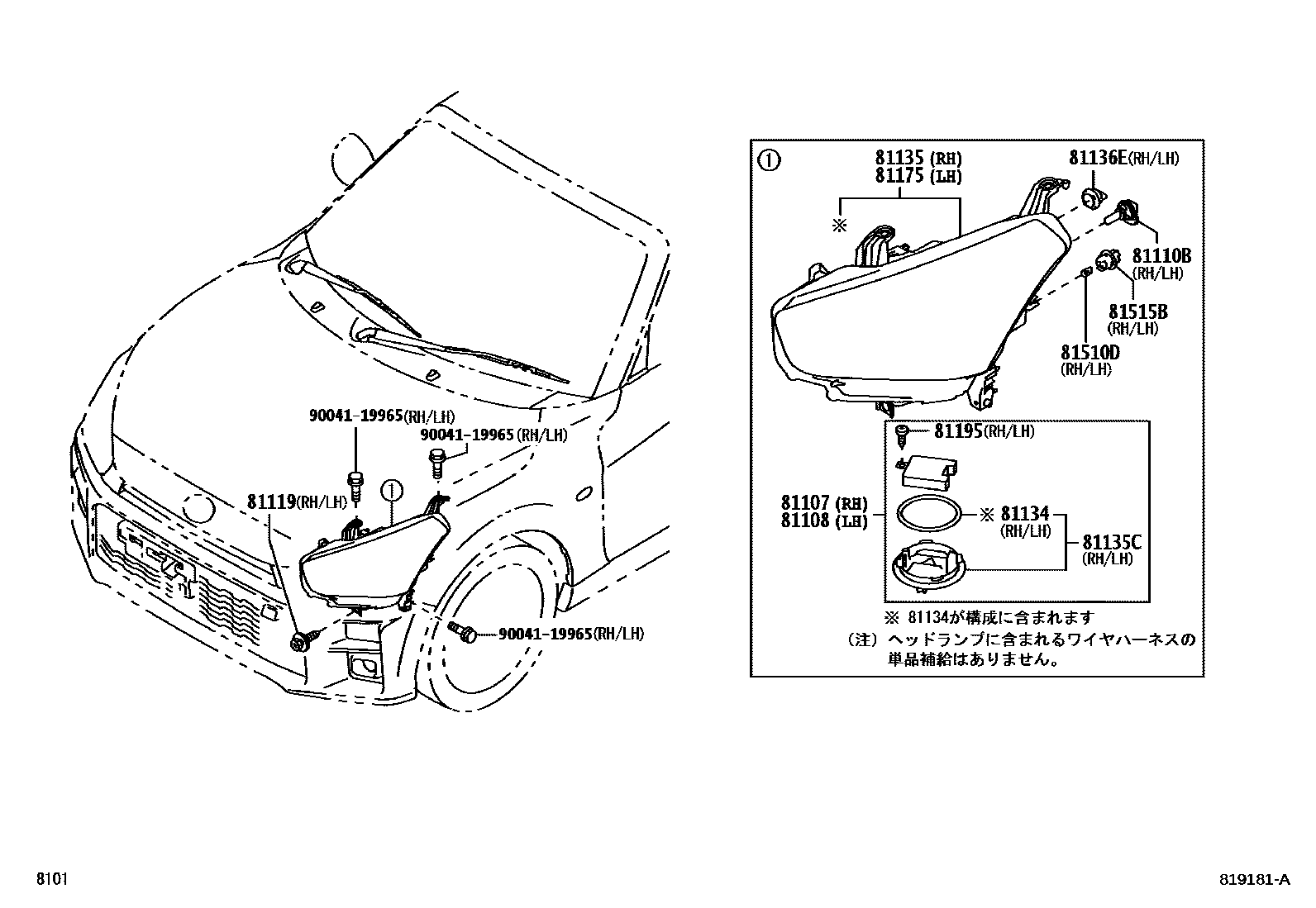

13 parts on this diagram · 1 diagram in section
