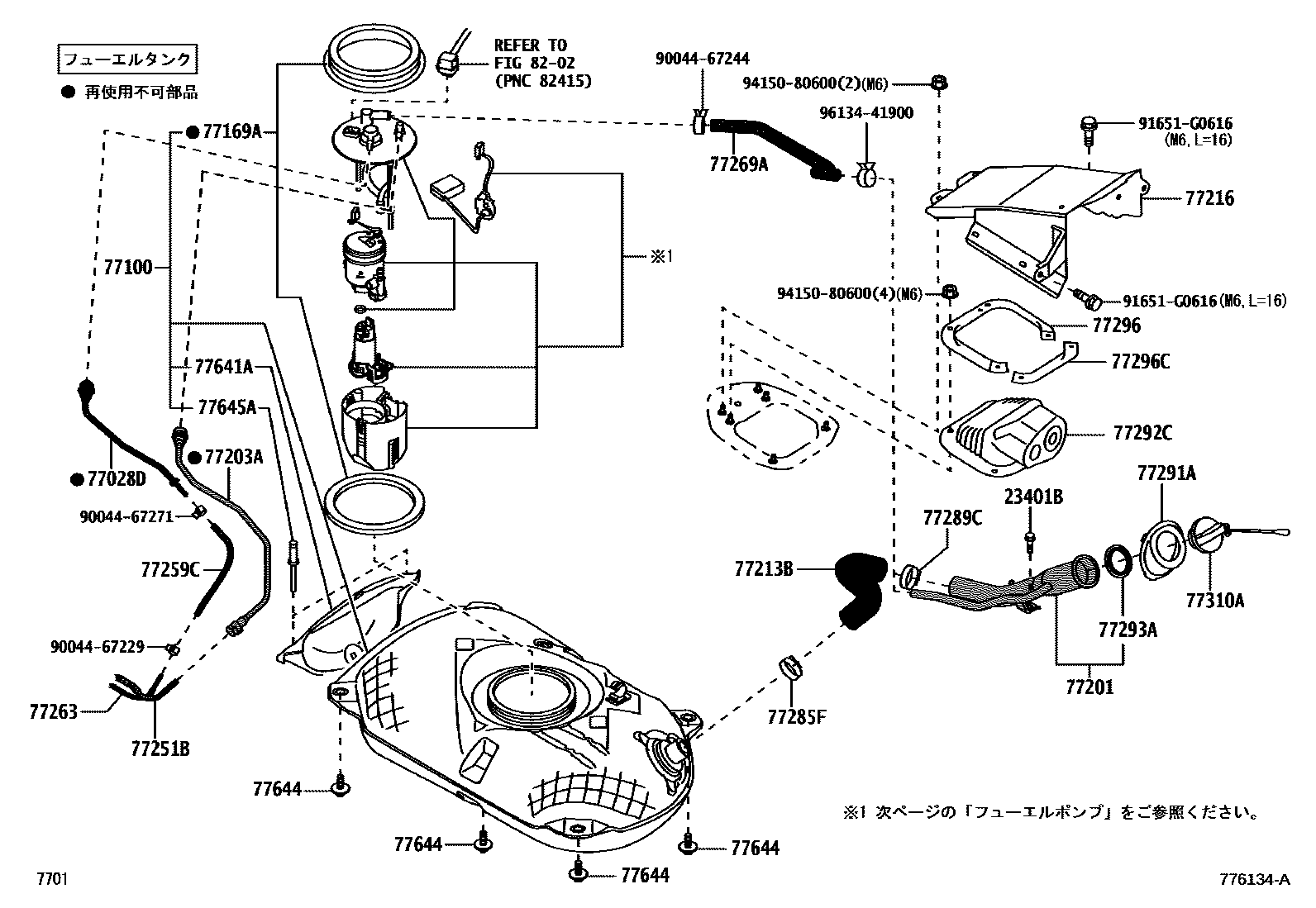

FUEL TANK & TUBE

0001 1�������� 0002 1���������� 0003 1���������� 0004 1��������������

23401BBOLT

main90041-20137iKFVET..LA400201910

77028DTUBE SUB-ASSY, FUEL EMISSION, REAR

main77028-B2010iLA400201910

77100TANK ASSY, FUEL

main77001-B2180iLA400201910

77169AGASKET, FUEL SUCTION TUBE SET

main77169-B2030iLA400201910

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-B2300iLA400201910

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-B2060iLA400201910

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-B2080iLA400201910

77216COVER, FUEL PIPE

main61069-B2010iLA400201910

77251BTUBE, FUEL MAIN

main77251-B2160iLA400201910

77259CHOSE, FUEL

main77259-B2050iLA400201910

77263TUBE, FUEL TANK TO CANISTER, NO.3

main77263-B2240iLA400201910-202209

main77263-B2340iLA400202209

77269AHOSE, FUEL TANK BREATHER

main77269-B2050iLA400201910

77285FCLAMP, FUEL TUBE, NO.1

main90044-60129iLA400201910

77289CCLAMP, FUEL TUBE, NO.4

main90044-66004iLA400201910

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-B2070iLA400201910

77292CSHIELD, FUEL TANK FILLER PIPE, NO.2

main77292-B2010iLA400201910

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77291-B2100iLA400201910

77296PLATE, FUEL TUBE GROMMET SUPPORT

main77296-B2030iLA400201910

77296CPLATE, FUEL HOSE GROMMET SUPPORT

main77296-B2040iLA400201910

77310ACAP ASSY, FUEL TANK

main77300-52030iLA400201910

77641APROTECTOR, FUEL TANK, NO.1

main77641-B2050iLA400201910

77644BOLT, FUEL TANK

main90041-20292iLA400201910

77645ARETAINER, FUEL TANK PROTECTOR

main77645-B2030iLA400201910

8202WIRING & CLAMP

→ Go to FIG 82-02

9004467229

main90044-67229

9004467244

main90044-67244

9004467271

main90044-67271

91651G0616

main91651-G0616

9415080600

main94150-80600

9613441900

main96134-41900

30 parts on this diagram · 4 diagrams in section
