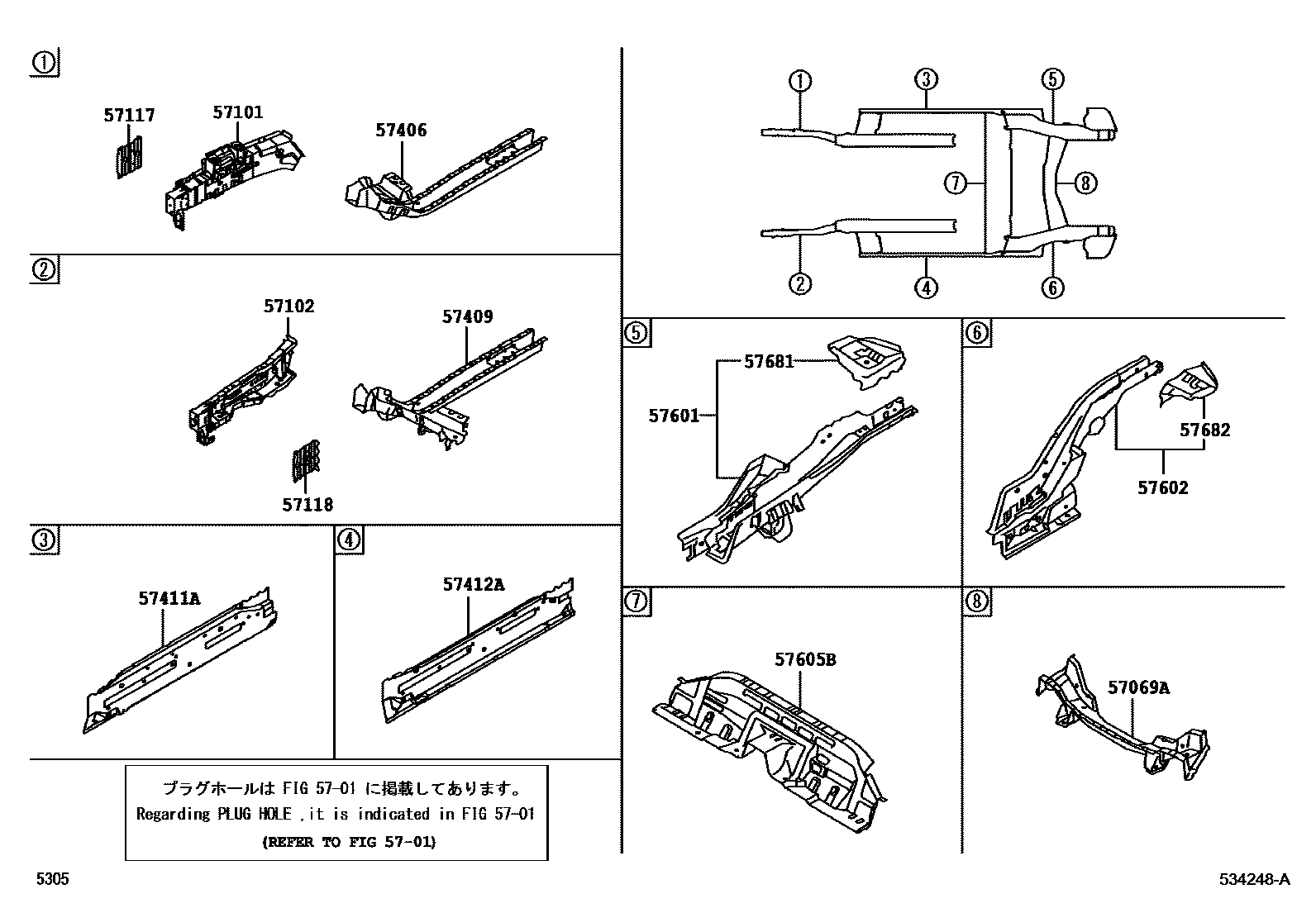

FLOOR SIDE MEMBER

0001 1 0002 1

5701HOLE PLUG

→ Go to FIG 57-01

57069AMEMBER, REAR FLOOR, CENTER

main57069-B2340iLA400201910

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-B2220iLA400201910

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-B2200iLA400201910

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-B2030iLA400201910

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-B2030iLA400201910

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-B2180iLA400201910

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-B2100iLA400201910

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-B2070iLA400201910

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-B2080iLA400201910

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-B2420iLA400201910

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-B2410iLA400201910

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-B2220iLA400201910

57681BRACKET, REAR SHOCK ABSORBER, RH

main61063-B2080iLA400201910

57682BRACKET, REAR SHOCK ABSORBER, LH

main61064-B2070iLA400201910

15 parts on this diagram · 2 diagrams in section
