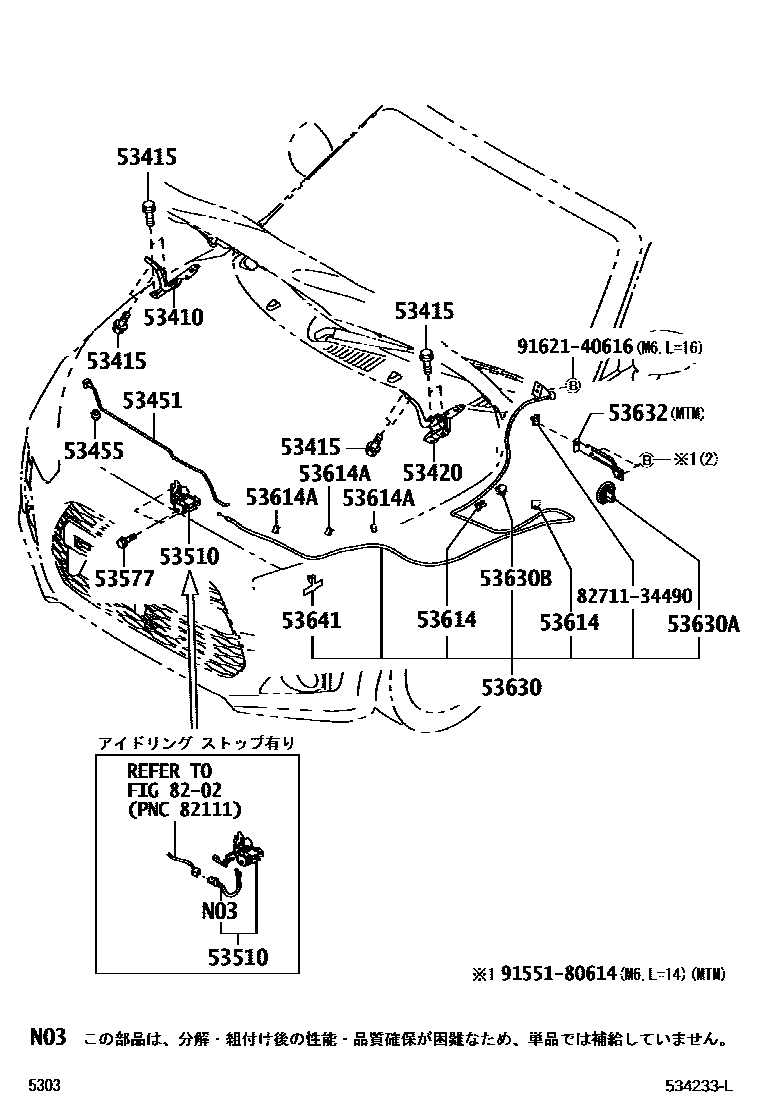

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53401-B2110iLA400201910

53415BOLT, HOOD HINGE

main90041-05525iLA400201910

53420HINGE ASSY, HOOD, LH

main53402-B2110iLA400201910

53451ROD, HOOD SUPPORT

main53451-B2131iLA400201910

53455CLAMP, HOOD SUPPORT ROD

main53455-B2190iLA400201910

53510LOCK ASSY, HOOD

main53510-B2360iLA400..5FC201910

main53510-B2400iLA400..CVT201910

53577BOLT, HOOD LOCK

main91551-80620iLA400201910

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-2D380iLA400201910

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-B2010iLA400201910

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-B2340iLA400201910

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main85373-B2010iLA400201910

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main82711-16820iLA400201910

53632HOLDER, HOOD LOCK CONTROL CABLE

main53632-B2010iLA400..5FC201910

53641CLAMP, HOOD LOCK CONTROL WIRE

main53616-B2010iLA400201910

8202

8271134490WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34490

9155180614

main91551-80614

9162140616

main91621-40616

18 parts on this diagram · 1 diagram in section
