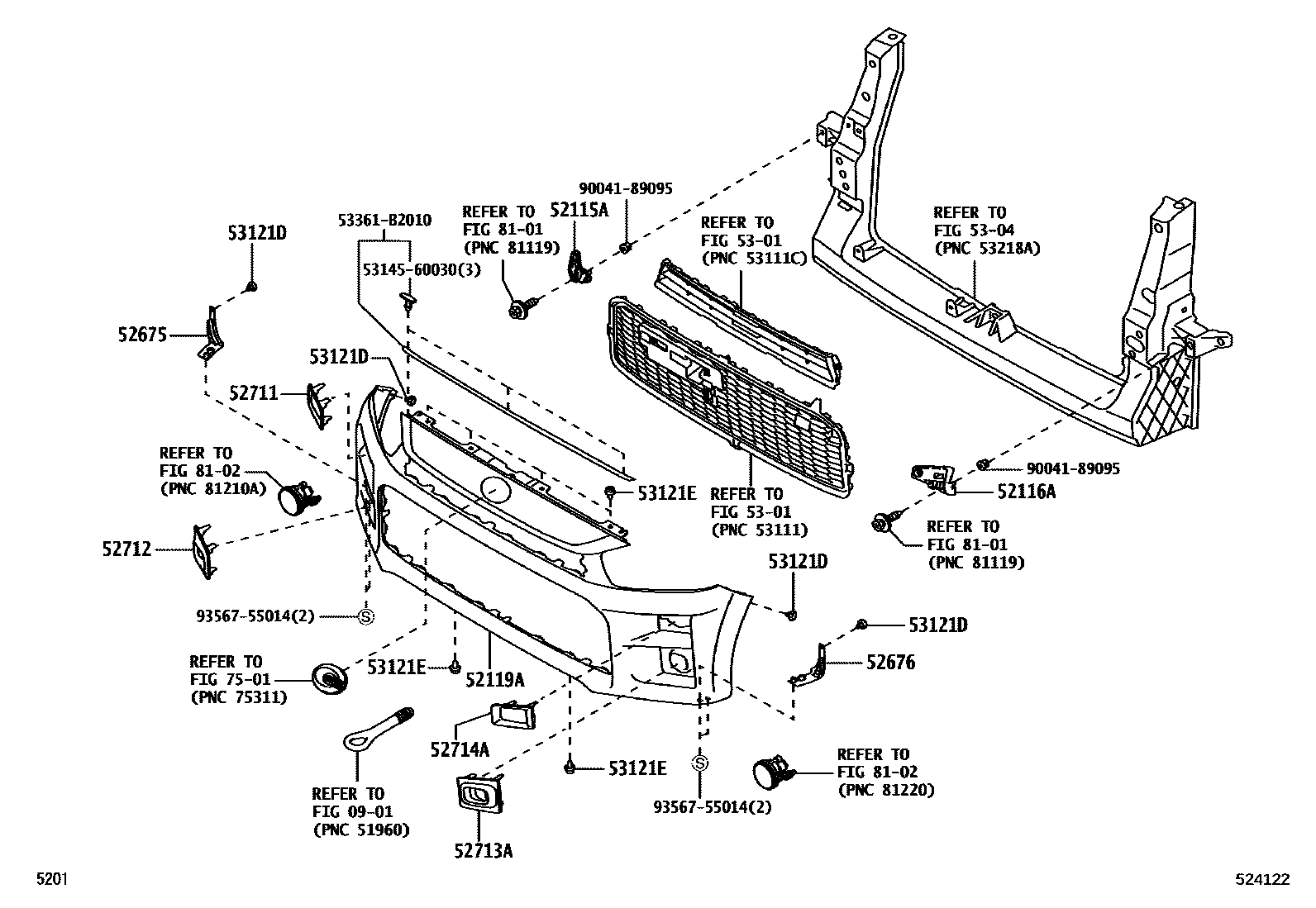

FRONT BUMPER & BUMPER STAY

0901STANDARD TOOL

→ Go to FIG 09-01

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-B2400iLA400201910

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-B2400iLA400201910

52119ACOVER, FRONT BUMPER

main52119-B2G10-A0iLA400201910

WHITE PEARL MC.CS,W24

main52119-B2G10-B0iLA400201910

SILVER ME.,S28

main52119-B2G10-B1iLA400201910

BLUE SILVER ME.,S39

main52119-B2G10-C0iLA400201910

BLACK M.M.,X07

main52119-B2G10-D0iLA400201910

RED PEARL,R70

main52119-B2G10-D1iLA400201910

ORANGE ME.,R71

main52119-B2G10-F0iLA400201910

YELLOW,Y07

main52119-B2G10-J0iLA400201910

BLUE ME.CS,B63

52675SUPPORT, FRONT BUMPER LOWER SIDE, RH

main52675-B2010iLA400201910

52676SUPPORT, FRONT BUMPER LOWER SIDE, LH

main52676-B2010iLA400201910

52711MOULDING, FRONT BUMPER

main52721-B2110iLA400201910

52712MOULDING, FRONT BUMPER SIDE, RH

main52712-B2360iLA400201910

52713AMOULDING, FRONT BUMPER SIDE, LH

main52713-B2360iLA400201910

52714AMOULDING, FRONT BUMPER, NO.2

main52722-B2110iLA400201910

5301RADIATOR GRILLE

→ Go to FIG 53-01

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53121DCLIP(FOR FRONT BUMPER), NO.2

main90044-67555×4iLA400201910

53121ECLIP(FOR FRONT BUMPER), NO.1

main90044-68378×6iLA400201910

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8101HEADLAMP

→ Go to FIG 81-01

8102FOG LAMP

→ Go to FIG 81-02

5314560030BRACKET,RADIATOR GRILLE MOUNTING, RH

main53145-60030

53361B2010WEATHERSTRIP, HOOD

main53361-B2010

9004189095

main90041-89095

9356755014

main93567-55014

21 parts on this diagram · 1 diagram in section
