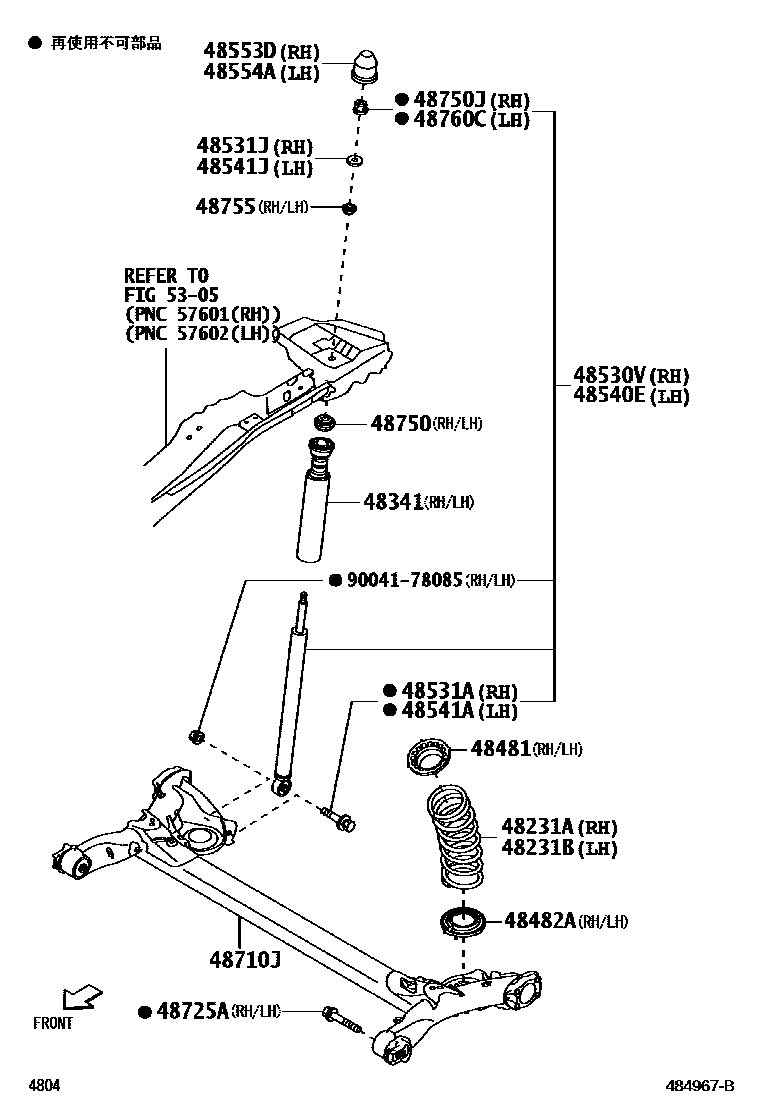

REAR SPRING & SHOCK ABSORBER

48231ASPRING, COIL, REAR RH

main48231-B2E50iLA400201910

48231BSPRING, COIL, REAR LH

main48231-B2E50iLA400201910

48341BUMPER, REAR SPRING

main48341-B2111×2iLA400201910

48481SEAT, REAR SPRING, UPPER

main48481-B2020×2iLA400201910

48482ASEAT, REAR SPRING, LOWER

main48482-B2030×2iLA400201910

48530VABSORBER SET, SHOCK, REAR RH

main48530-B9330iLA400201910

48531ABOLT, UNION(FOR REAR SHOCK ABSORBER RH)

main90041-19A06iLA400201910

48531JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH

main90042-01758iLA400201910

48540EABSORBER SET, SHOCK, REAR LH

main48530-B9330iLA400201910

48541ABOLT, UNION(FOR REAR SHOCK ABSORBER LH)

main90041-19A06iLA400201910

48541JWASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH

main90042-01758iLA400201910

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-52010iLA400201910

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-52010iLA400201910

48710JARM ASSY, REAR SUSPENSION, NO.1

main48710-B2240iLA400201910

48725ABOLT(FOR LOWER CONTROL ARM)

main48718-B2031×2iLA400201910

48750SUPPORT ASSY, REAR SUSPENSION

main48750-B2030×2iLA400201910

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94188-01001iLA400201910

48755SUPPORT, REAR SUSPENSION

main48755-B2020×2iLA400201910

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94188-01001iLA400201910

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9004178085

main90041-78085

21 parts on this diagram · 1 diagram in section
