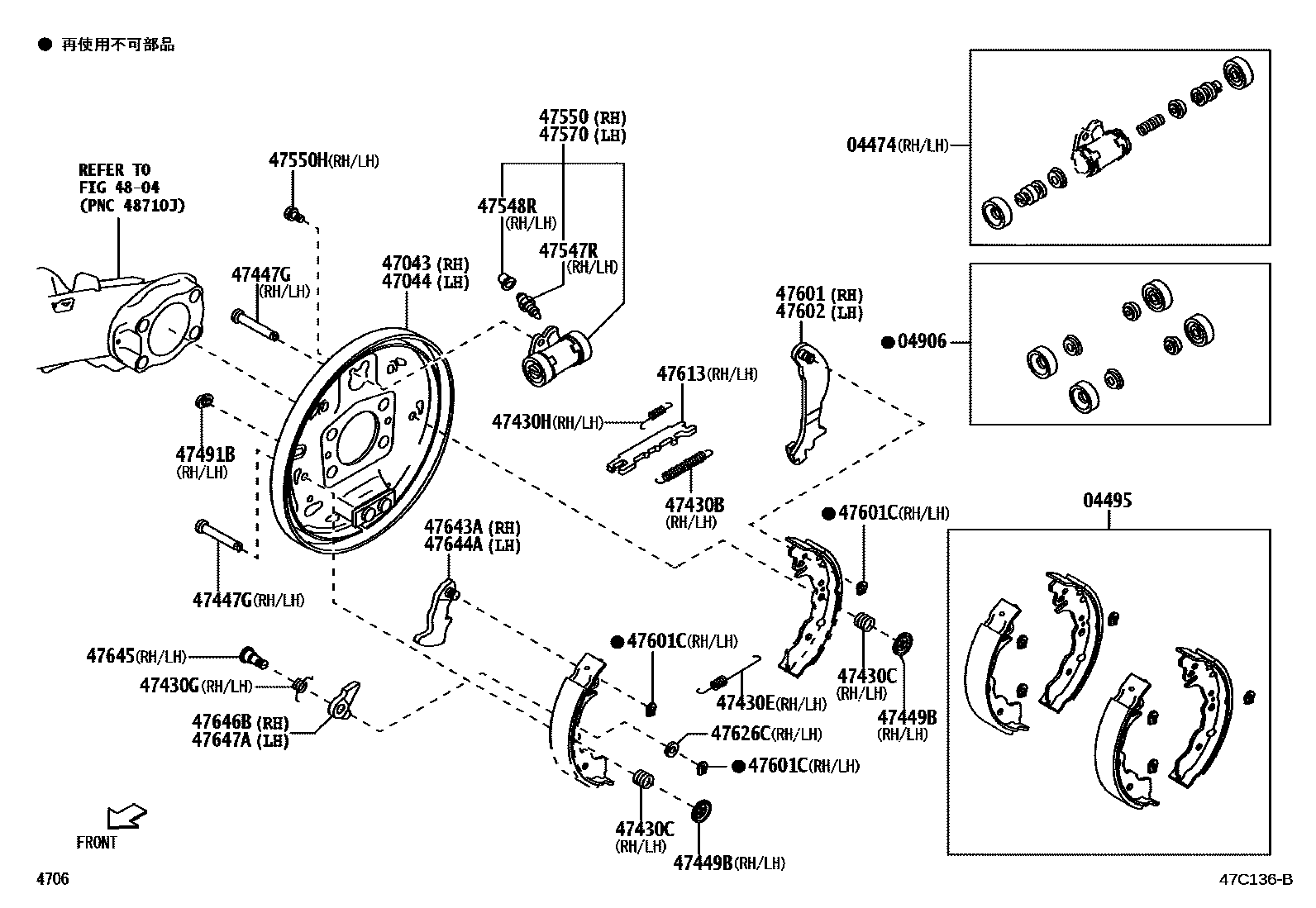

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-B1030×2iLA400201910

04495SHOE KIT, REAR BRAKE

main04495-B1270iLA400201910

04906CUP KIT, REAR WHEEL CYLINDER

main04906-B1030iLA400201910

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-B1010iLA400201910

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-B1010iLA400201910

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90045-06197×2iLA400201910

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90045-01848×4iLA400201910

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90045-06257×2iLA400201910

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90045-08361iLA400201910

main90045-08362iLA400201910

47430HSPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)

main90045-06196iLA400201910

main90045-06199iLA400201910

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87204×4iLA400201910

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-97201×4iLA400201910

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-B1010×2iLA400201910

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-87204×2iLA400201910

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-87501×2iLA400201910

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-B1010iLA400201910

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90041-19848×2iLA400201910

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-B1010iLA400201910

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-97501iLA400201910

47601CWASHER, C(FOR REAR BRAKE)

main90042-13007×6iLA400201910

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-97501iLA400201910

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47613-B1010×2iLA400201910

47626CWASHER, WAVE

main90042-06041×2iLA400201910

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47608-87501iLA400201910

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47609-87501iLA400201910

47645PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)

main47645-87201×2iLA400201910

47646BLATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47646-97201iLA400201910

47647ALATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47647-97201iLA400201910

4804REAR SPRING & SHOCK ABSORBER
