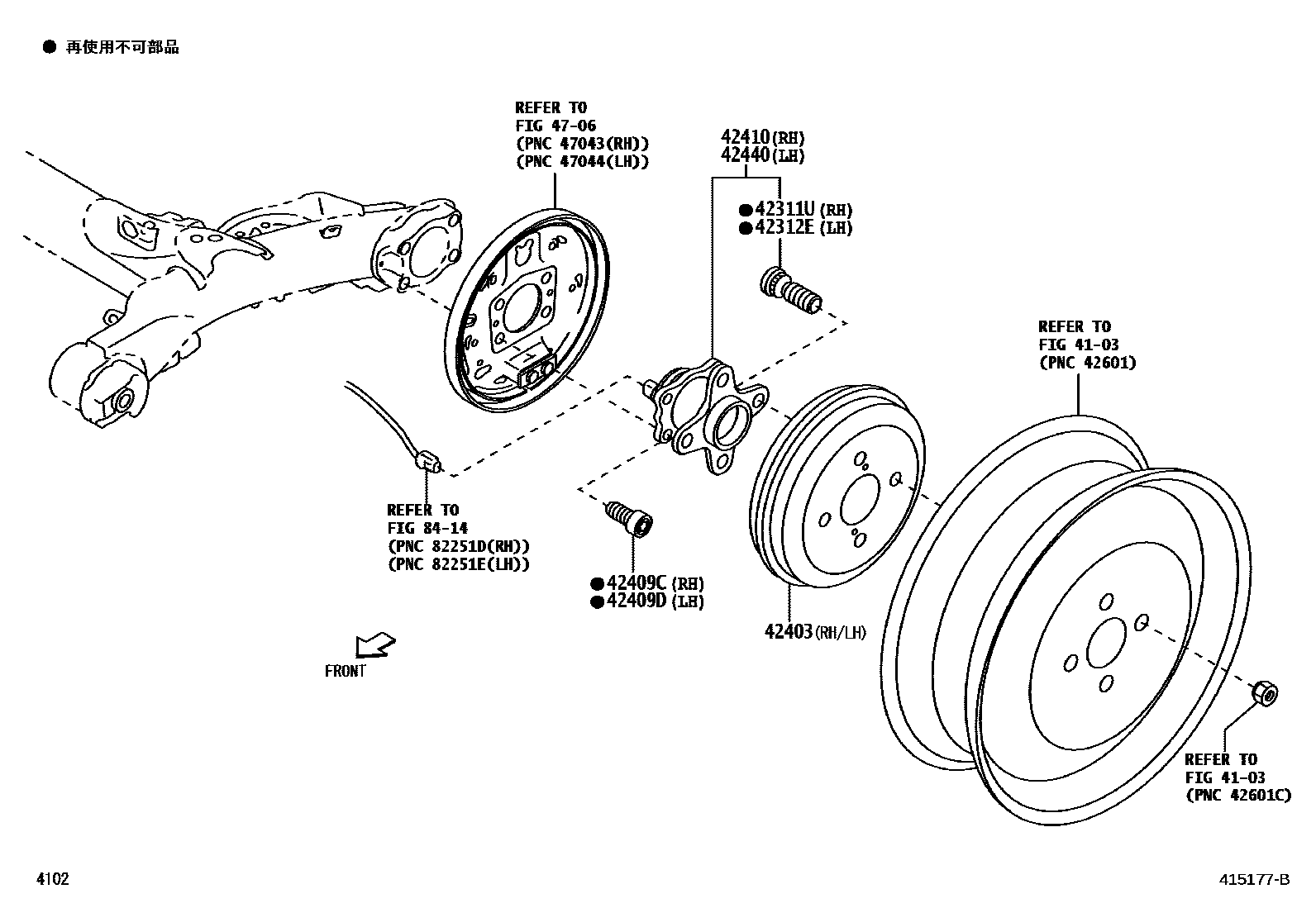

REAR AXLE SHAFT & HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311UBOLT, HUB(FOR REAR AXLE RH)

main90049-12062×4iLA400201910

42312EBOLT, HUB(FOR REAR AXLE LH)

main90049-12062×4iLA400201910

42403DRUM SUB-ASSY, REAR BRAKE

main42431-B1021×2iLA400201910

42409CBOLT (FOR REAR AXLE BEARING RH)

main90041-01650×4iLA400201910

42409DBOLT (FOR REAR AXLE BEARING LH)

main90041-01650×4iLA400201910

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-B2080iLA400201910-202006

main42410-B2081iLA400202007

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-B2080iLA400201910-202006

main42410-B2081iLA400202007

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

8414ABS & VSC

→ Go to FIG 84-14

10 parts on this diagram · 1 diagram in section
