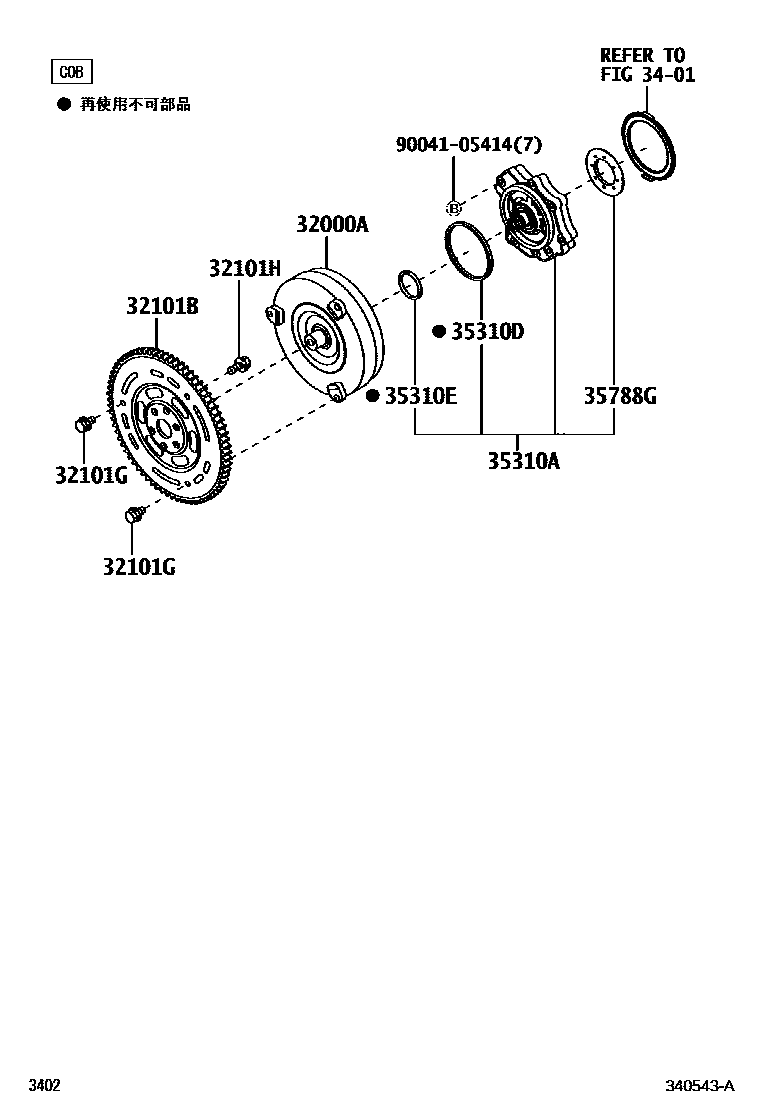

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-B2210iLA400..CVT201910

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-B2021iLA400..CVT201910

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90041-05280iLA400..CVT201910

main90041-05281×2iLA400..CVT201910

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90048-01037×6iLA400..CVT201910

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-B9052iLA400..CVT201910

35310DRING, O (FOR FRONT OIL PUMP)

main90043-01332iLA400..CVT201910

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main90043-11423iLA400..CVT201910

35788GRACE, THRUST BEARING

main35789-B2061iLA400..CVT201910

main35789-B2071iLA400..CVT201910

main35789-B2081iLA400..CVT201910

main35789-B2091iLA400..CVT201910

main35789-B2101iLA400..CVT201910

main35789-B2111iLA400..CVT201910

9004105414

main90041-05414

10 parts on this diagram · 1 diagram in section
