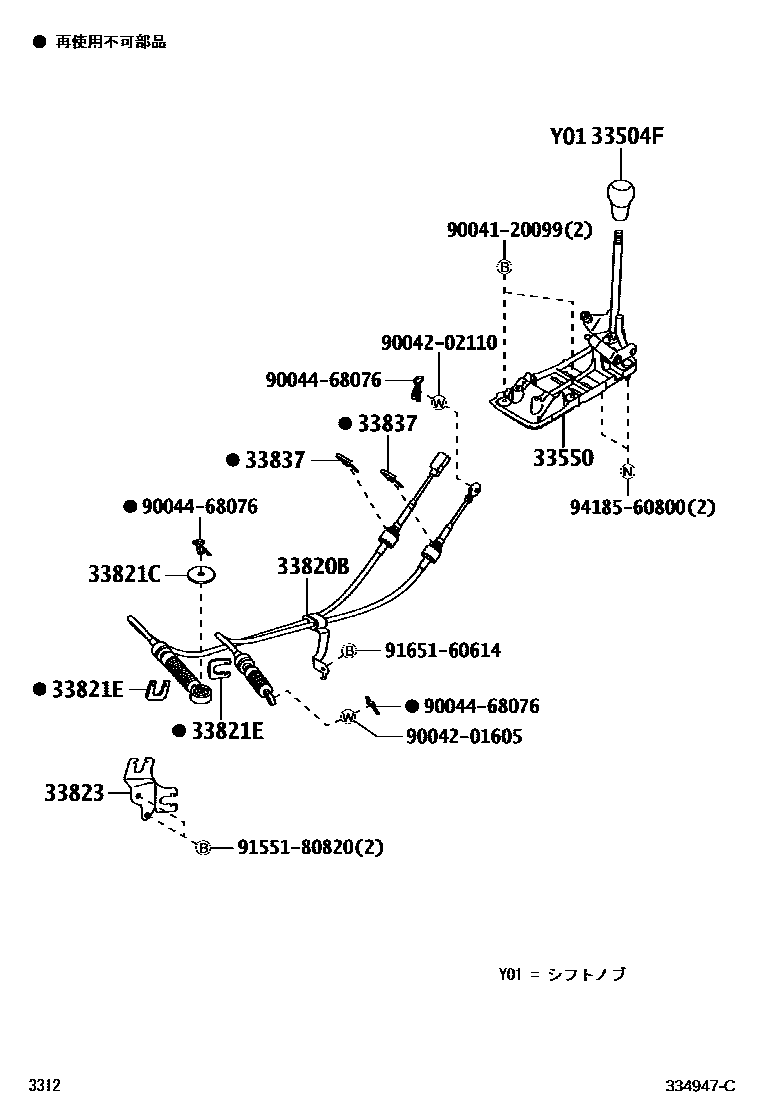

SHIFT LEVER & RETAINER

0001 1 0002 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-97203-C0iLA400..CVT201910

BLACK,TRIM2#

main33504-B1010-B0iLA400..5FC201910-201912

DK.GRAY,TRIM2#

sub33504-B1010

main33504-B1010-C1iLA400..5FC201912

BLACK,TRIM2#

sub33504-B1010

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-B2670-B0iLA400..5FC201910-201912

DK.GRAY,TRIM2#

sub33550-B2670

main33550-B2670-C0iLA400..5FC201912

BLACK,TRIM2#

sub33550-B2670

main33550-B2682-C0iLA400..CVT201910-202409

BLACK,TRIM2#

main33550-B2683-C0iLA400..CVT202410

BLACK,TRIM2#

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-B2440iLA400..5FC201910

main33820-B2452iLA400..CVT201910

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90042-01763iLA400..5FC201910

33821ECLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE)

main33567-B1010iLA400..5FC201910

main90044-68153iLA400..CVT201910

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-B2010iLA400..5FC201910

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main90044-68364iLA400..CVT201910

9004120099

main90041-20099

9004201605

main90042-01605

9004202110

main90042-02110

9004468076

main90044-68076

9155180820

main91551-80820

9165160614

main91651-60614

9418560800

main94185-60800

14 parts on this diagram · 2 diagrams in section
