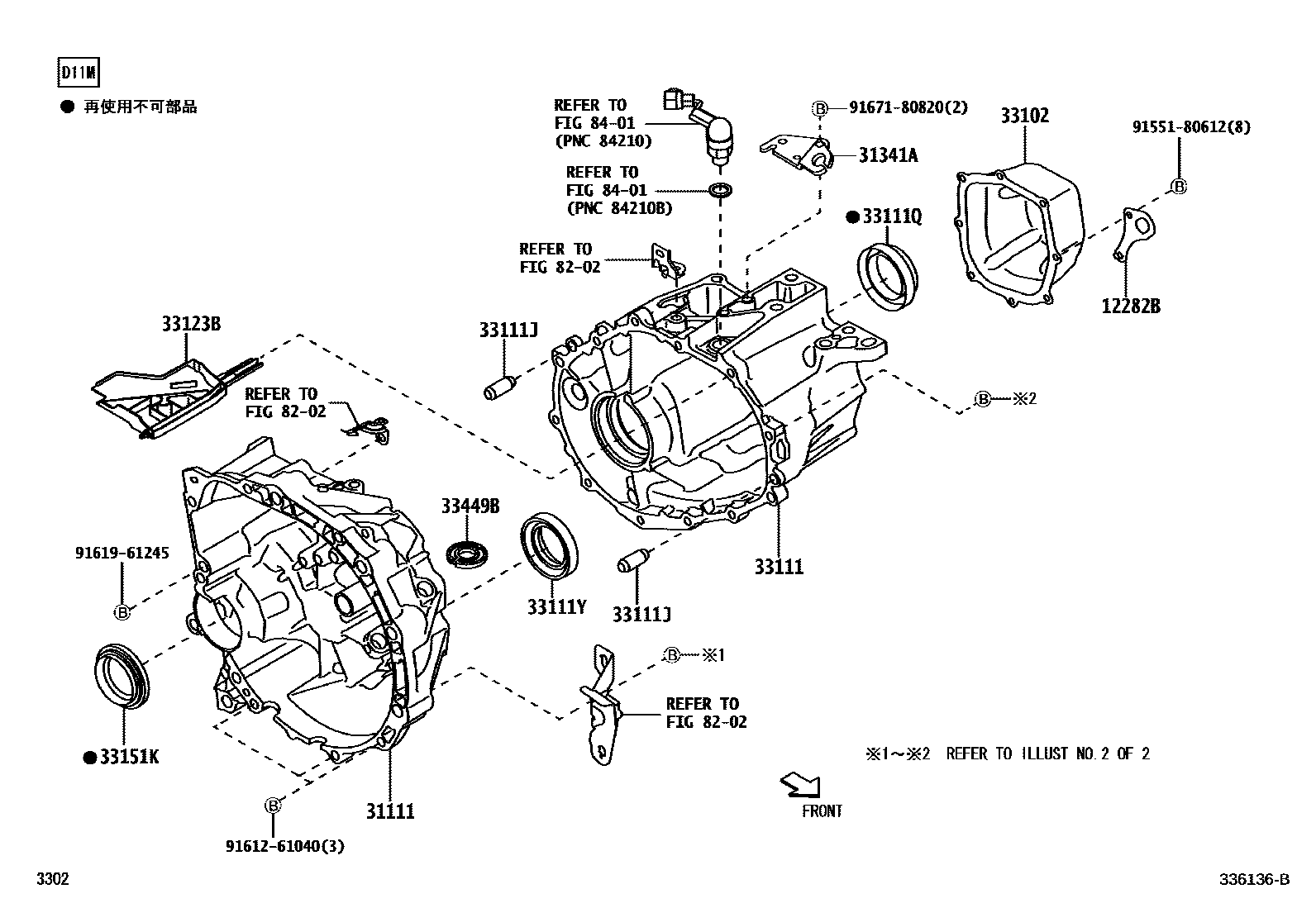

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1�������� 0002 1��������

12282BHANGER, TRANSAXLE

main12282-B2090iKFVET..LA400..5FC201910

31111HOUSING, CLUTCH

main31115-B2030iLA400..5FC201910

31341ABRACKET, CLUTCH CABLE

main31341-B2040iLA400..5FC201910

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-B2010iLA400..5FC201910

33111CASE, MANUAL TRANSMISSION

main33111-B2040iLA400..5FC201910

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90042-50157×2iLA400..5FC201910

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90043-11430iLA400..5FC201910

33111YSEAL, OIL(FOR TRANSMISSION CASE)

main90043-10051iLA400..5FC201910

33123BRECEIVER, CASE COVER OIL, NO.1(MTM)

main33123-B2010iLA400..5FC201910

33151KSEAL, TYPE T OIL

main90043-11317iLA400..5FC201910

33449BMAGNET, TRANSMISSION

main33449-87502iLA400..5FC201910

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9155180612

main91551-80612

9161261040

main91612-61040

9161961245

main91619-61245

9167180820

main91671-80820

17 parts on this diagram · 2 diagrams in section
