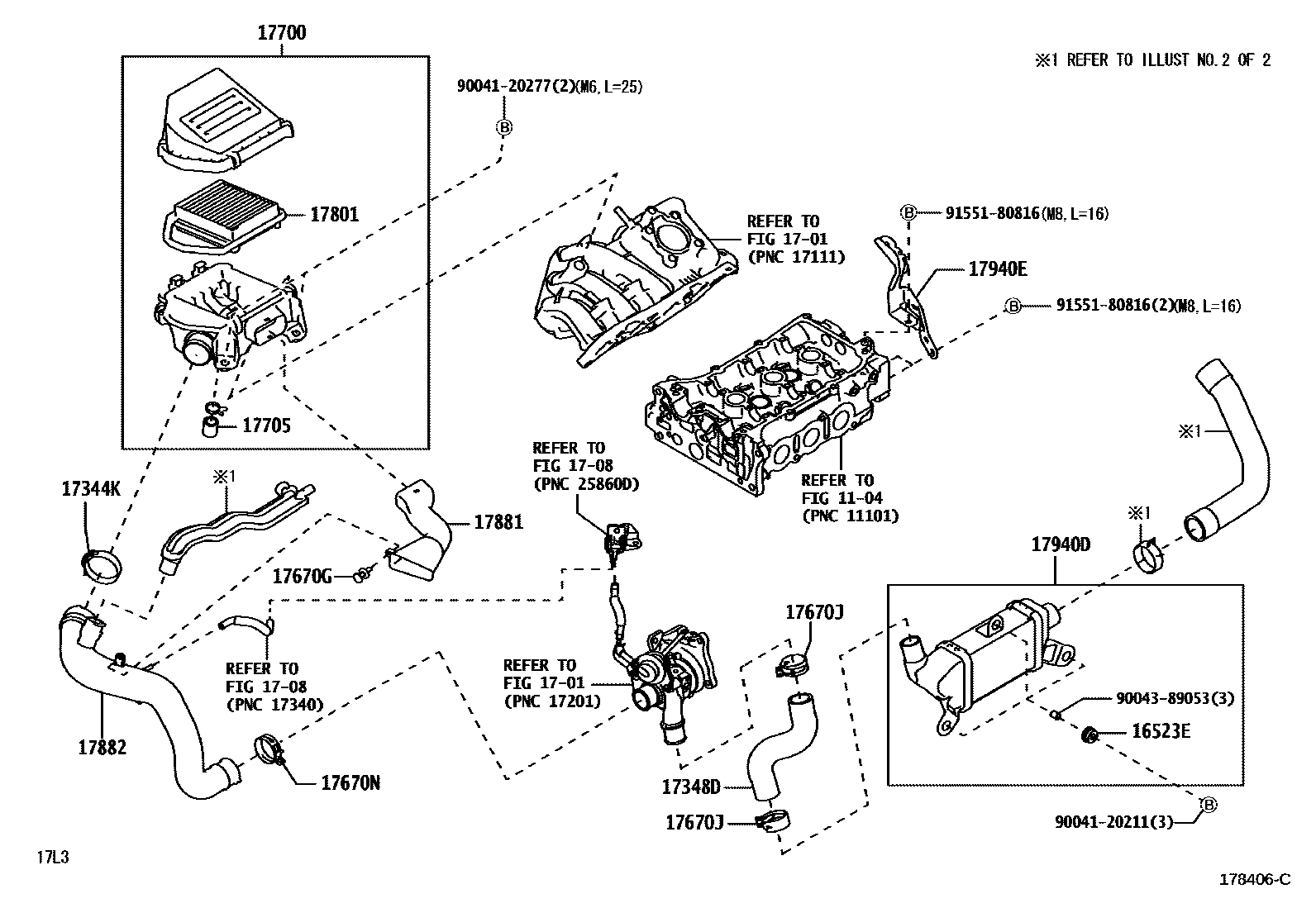

AIR CLEANER

0001 1������ 0002 1���,�����

1104CYLINDER HEAD

→ Go to FIG 11-04

16523ECUSHION, INTERCOOLER SUPPORT

main47131-B2062×3iKFVET..LA400201910

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

17344KCLIP(FOR AIR HOSE, NO.4)

main90044-66008iKFVET..LA400201910

17348DHOSE, AIR, NO.8

main17342-B2050iKFVET..LA400201910

17670GCLIP(FOR AIR HOSE NO.1)

main90044-67568iKFVET..LA400201910

17670JCLIP(FOR AIR HOSE NO.3)

main96136-44301×2iKFVET..LA400201910

17670NCLIP(FOR AIR HOSE NO.4)

main90044-66004iKFVET..LA400201910

17700CLEANER ASSY, AIR

main17700-B2180iKFVET..LA400201910

17705CAP SUB-ASSY, AIR CLEANER

main17705-B2140iKFVET..LA400201910

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-B2110iKFVET..LA400201910

17881HOSE, AIR CLEANER, NO.1

main17881-B2150iKFVET..LA400201910

17882HOSE, AIR CLEANER, NO.2

main17882-B2080iKFVET..LA400201910

17940DINTERCOOLER ASSY

main17940-B2060iKFVET..LA400201910

17940EBRACKET, INTERCOOLER SUPPORT

main17960-B2030iKFVET..LA400201910

9004120211

main90041-20211

9004120277

main90041-20277

9004389053

main90043-89053

9155180816

main91551-80816

20 parts on this diagram · 2 diagrams in section
