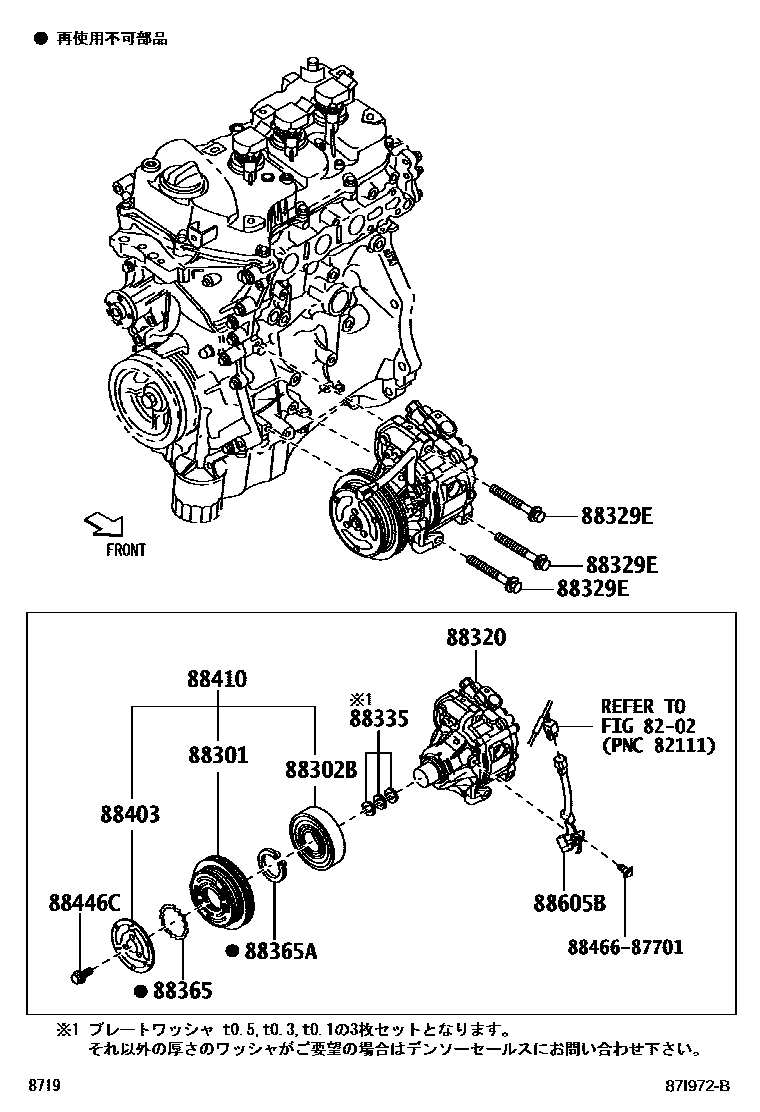

HEATING & AIR CONDITIONING - COMPRESSOR

8202WIRING & CLAMP

→ Go to FIG 82-02

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-B2060iLA350,360201705

88302BSTATOR, MAGNET CLUTCH

main88411-B1010iLA350,360201705

88320COMPRESSOR ASSY, COOLER

main88320-B2100iLA350,360201705-201807

main88320-B2140iLA350,360201808-202207

main88320-B2180iLA350,360202207

88329EBOLT, COMPRESSOR, NO.1

main88899-12400×3iLA350,360201705

88335GASKET KIT, OVERHAUL

main88335-14020iLA350,360201705

88365RING, SNAP

main90099-07125iLA350,360201705

88365ARING, SNAP (FOR COMPRESSOR)

main88365-87201iLA350,360201705

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-B2020iLA350,360201705-201801

main88403-B2040iLA350,360201802

88410CLUTCH ASSY, MAGNET

main88410-B2100iLA350,360201705-201801

main88410-B2130iLA350,360201802

88446CBOLT, MAGNET CLUTCH SETTING

main90099-04349iLA350,360201705

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-B2270iLA350,360201705

8846687701

main88466-87701

13 parts on this diagram · 1 diagram in section
