HEATING & AIR CONDITIONING - COOLER PIPING

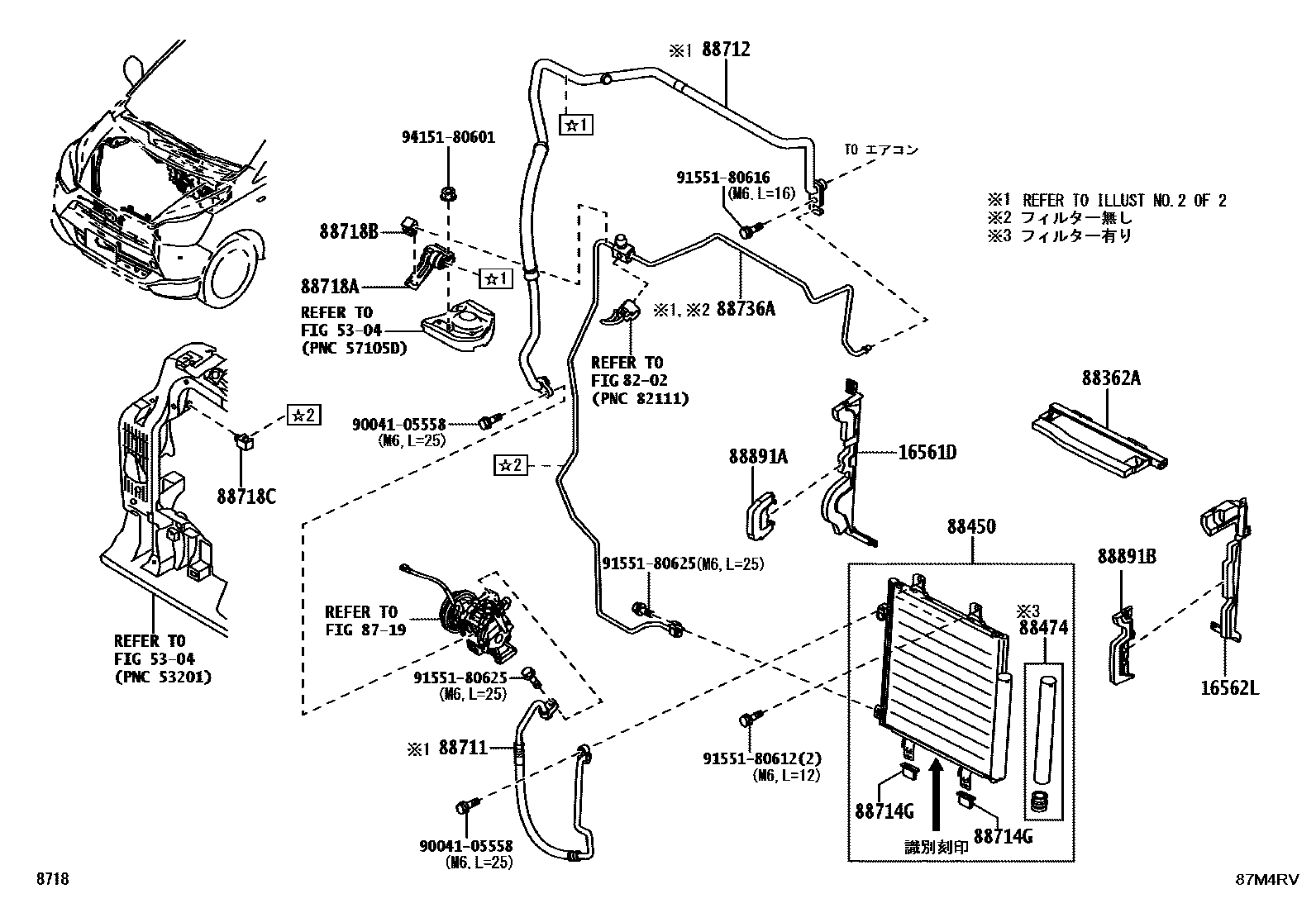

0001 1ILLUST NO.1 OF 2/������ 0002 1ILLUST NO.2 OF 2/��������,���0003 1ILLUST NO.2 OF 2/��������,���

16561DSEAL, RADIATOR TO SUPPORT, NO.1

main53037-B2030iKFVE..LA350,360201705-202406

16562LSEAL, RADIATOR TO SUPPORT, NO.2

main53038-B2030iKFVE..LA350,360201705-202406

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

8202WIRING & CLAMP

→ Go to FIG 82-02

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88362APLATE,SEAL

main53039-B2010iLA350,360201705

88450CONDENSER ASSY, W/RECEIVER

main88460-B2020iLA350,360201705-202207

main88460-B2021iLA350,360202207

88474DRYER, COOLER

main88474-B2010iLA350,360201705

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-B2260iLA350,360201705

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-B2430iLA350,360201705-202207

main88712-B2431iLA350,360202207

88714GINSULATOR, COOLER REFRIGERANT PIPE, NO.1

main88714-B2010×2iLA350,360201705

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-B2220iLA350,360201705

88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)

main88718-13060iLA350,360201705

88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)

main88718-13060iLA350,360201705

88736ATUBE, LIQUID, A(FOR COOL BOX)

main88716-B2610iLA350,360201705-202207

main88716-B2611iLA350,360202207

88891APACKING A (FOR COOLER)

main88629-B2040iLA350,360201705

88891BPACKING B (FOR COOLER)

main88893-B2050iLA350,360201705

9004105558

main90041-05558

9155180612

main91551-80612

9155180616

main91551-80616

9155180625

main91551-80625

9415180601

main94151-80601

22 parts on this diagram · 3 diagrams in section
