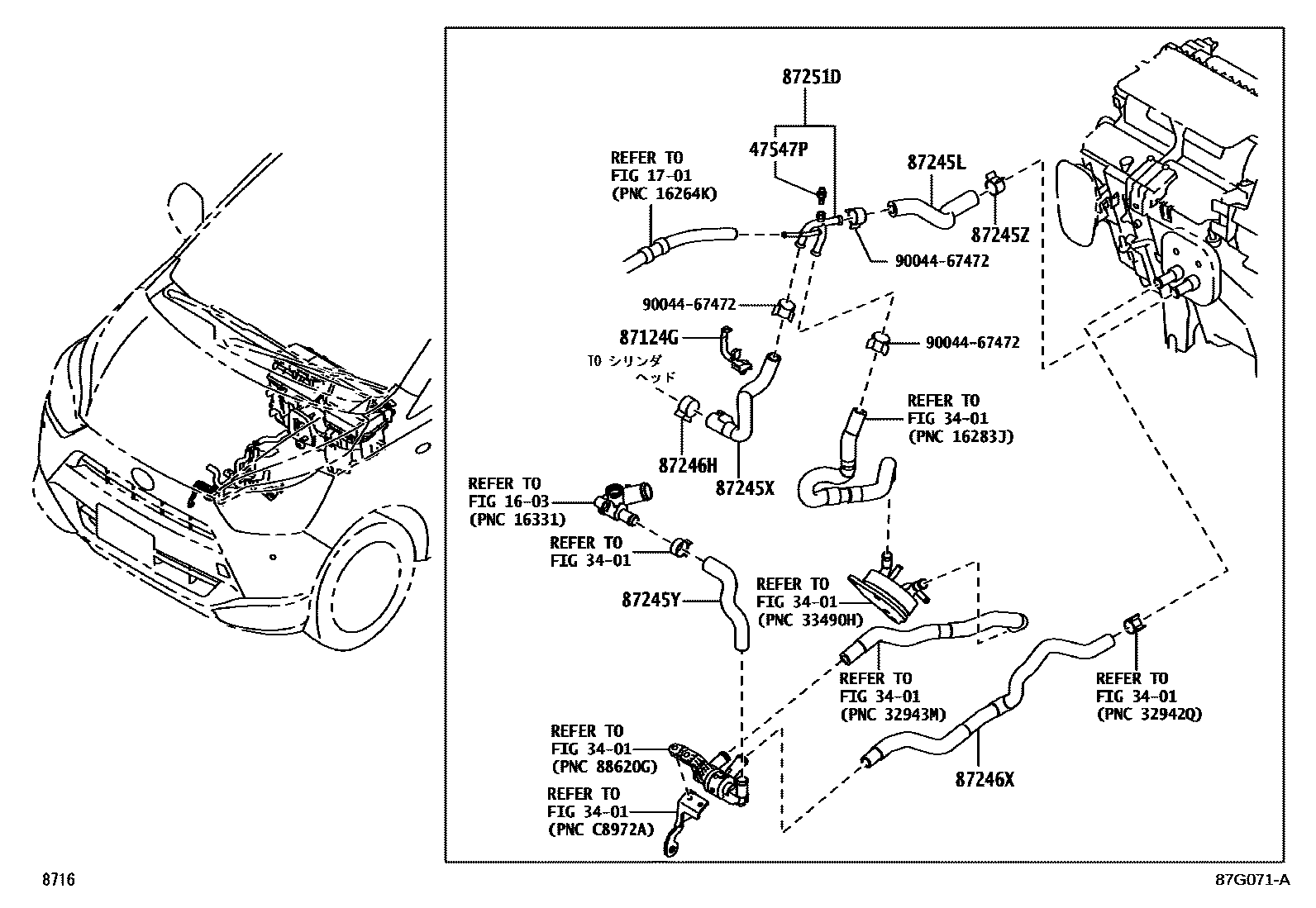

HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1701MANIFOLD

→ Go to FIG 17-01

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

47547PPLUG, BLEEDER(FOR WATER JOINT)

main47547-B2030iLA350,360201705

87124GCLAMP, HEATER HOSE, NO.2

main87124-B2060iLA350,360201705

87245LHOSE, HEATER WATER, L

main87245-B2240iLA350,360201705

87245XHOSE, HEATER WATER

main87242-B2060iLA350,360201705

87245YHOSE, HEATER WATER

main87242-B2110iLA350,360201705

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96136-42101iLA350,360201705

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main96136-42501iLA350,360201705

87246XHOSE, HEATER WATER

main87246-B2270iLA350,360201705

87251DJOINT, WATER, NO.1

main16035-B2040iLA350,360201705

9004467472

main90044-67472

13 parts on this diagram · 1 diagram in section
