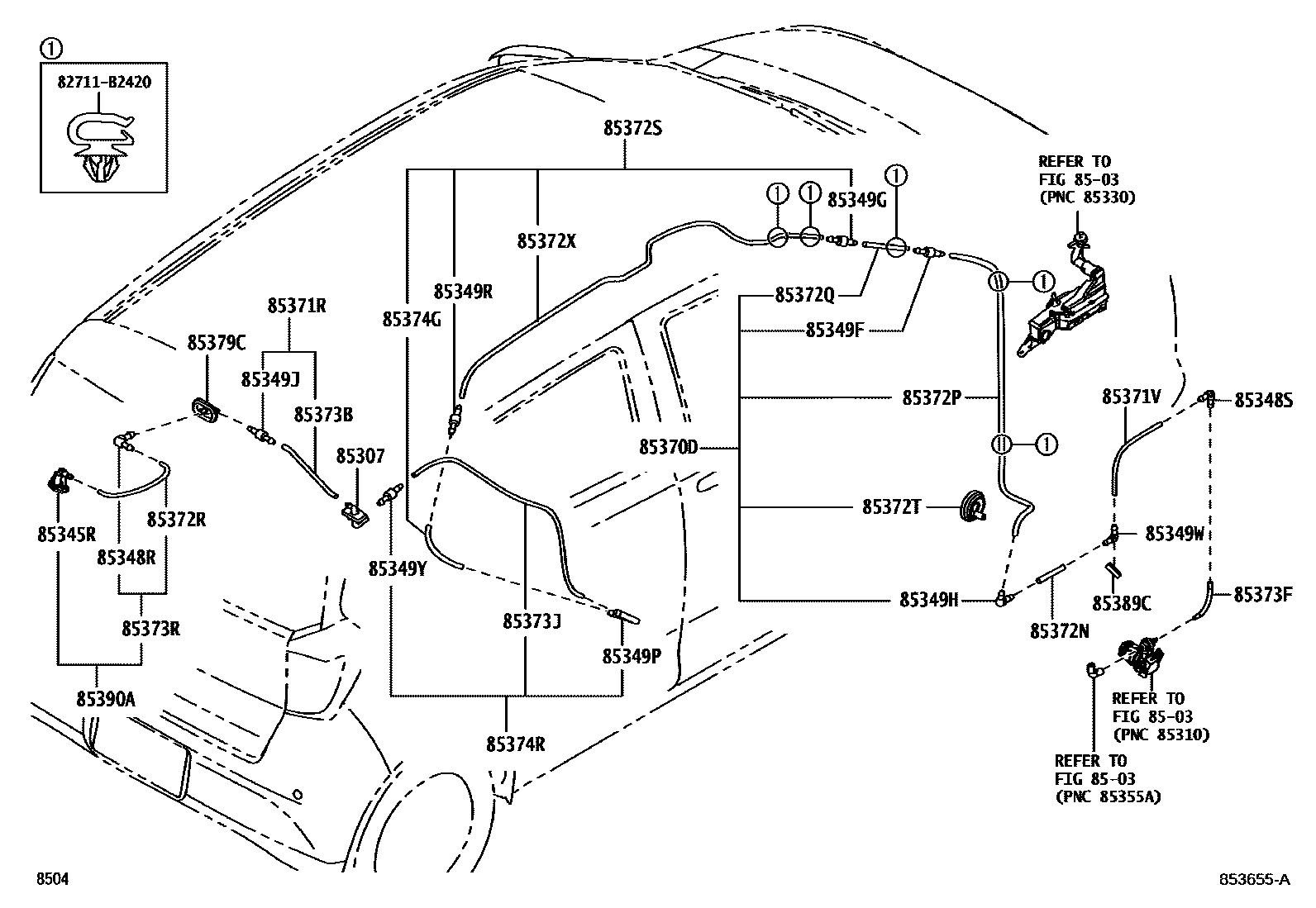

REAR WASHER
8503WINDSHIELD WASHER
85307GROMMET SUB-ASSY, WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349HJOINT, REAR WASHER HOSE, NO.3
85349JJOINT, REAR WASHER HOSE, NO.4
85349PJOINT, REAR WASHER ELBOW, NO.3
85349RJOINT, REAR WASHER HOSE, NO.5
85349WJOINT, REAR WASHER ELBOW, NO.4
85349YJOINT, REAR WASHER ELBOW, NO.5
85370DHOSE ASSY, REAR WASHER, NO.1
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372TGROMMET, WASHER
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85373BHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7
85373FHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8
85373JHOSE, REAR WASHER(FROM JOINT TO JOINT), NO.11
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85374GHOSE,WINDSHIELD WASHER (FROM JOINT TO JOINT NO.6)
85374RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
HEAD SIDE
85379CGROMMET, REAR WASHER HOSE NO.1
85389CPROTECTOR, WASHER
85390ANOZZLE & HOSE ASSY, RR WASHER
82711B2420WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-B2420
33 parts on this diagram · 1 diagram in section
