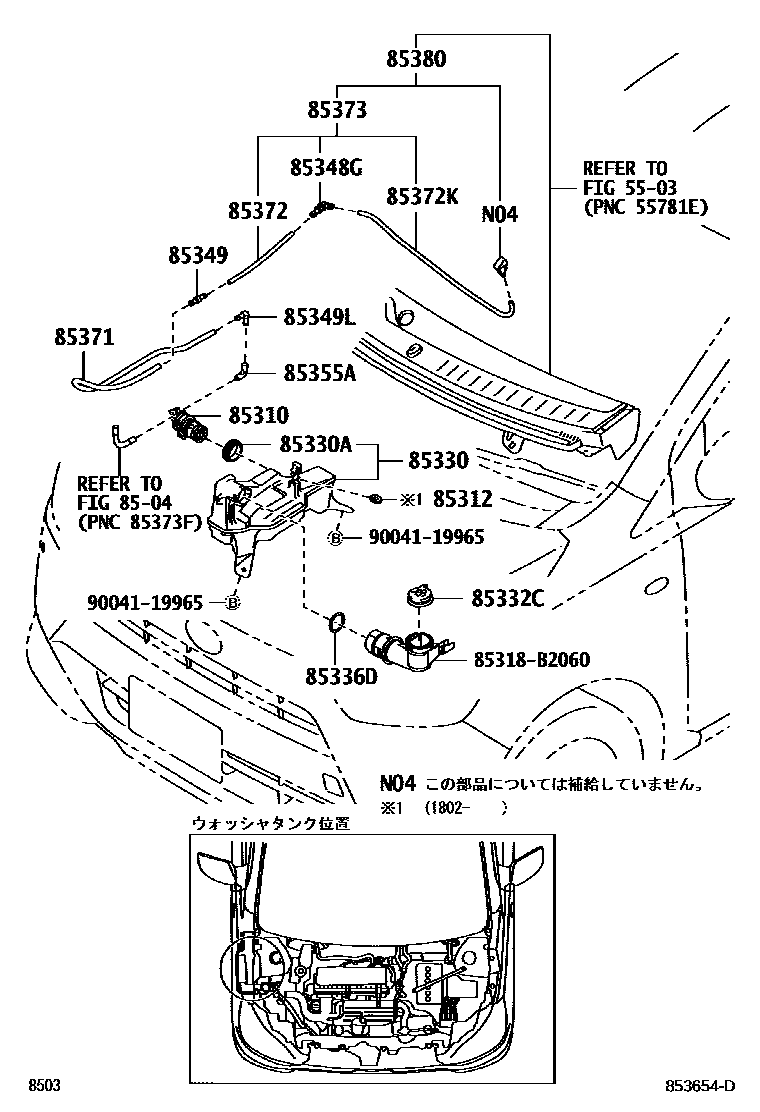

WINDSHIELD WASHER

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-B2030supersedes 85310-97202iLA360201705

85312PACKING, WINDSHIELD WASHER TANK

main85346-B2010iLA350,360201802-201807

85330JAR ASSY, WINDSHIELD WASHER

main85315-B2130iLA350,360201705

85330ABUSH, WINDSHIELD WASHER JAR

main85373-97202iLA350,360201705

85332CCAP, FRONT WASHER TANK

main85332-B1020iLA350,360201705

85336DPACKING, WINDSHIELD WASHER JAR

main85336-B2060iLA350,360201705

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85317-B2030iLA350,360201705

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-87201iLA350,360201705

85349LJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85349-87602iLA360201705

85355AJOINT, WINDSHIELD WASHER ELBOW

main85355-87701iLA360201705

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85343-97401iLA360201705

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85343-97401iLA350,360201705

85372KHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5

main85376-87202iLA350,360201705

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85370-B2K50iLA350,360201705

85380NOZZLE & HOSE ASSY, FR WASHER

main85380-B2570iLA350,360201705

85318B2060JOINT, WINDSHIELD WASHER MOTOR

main85318-B2060

9004119965

main90041-19965

19 parts on this diagram · 1 diagram in section
