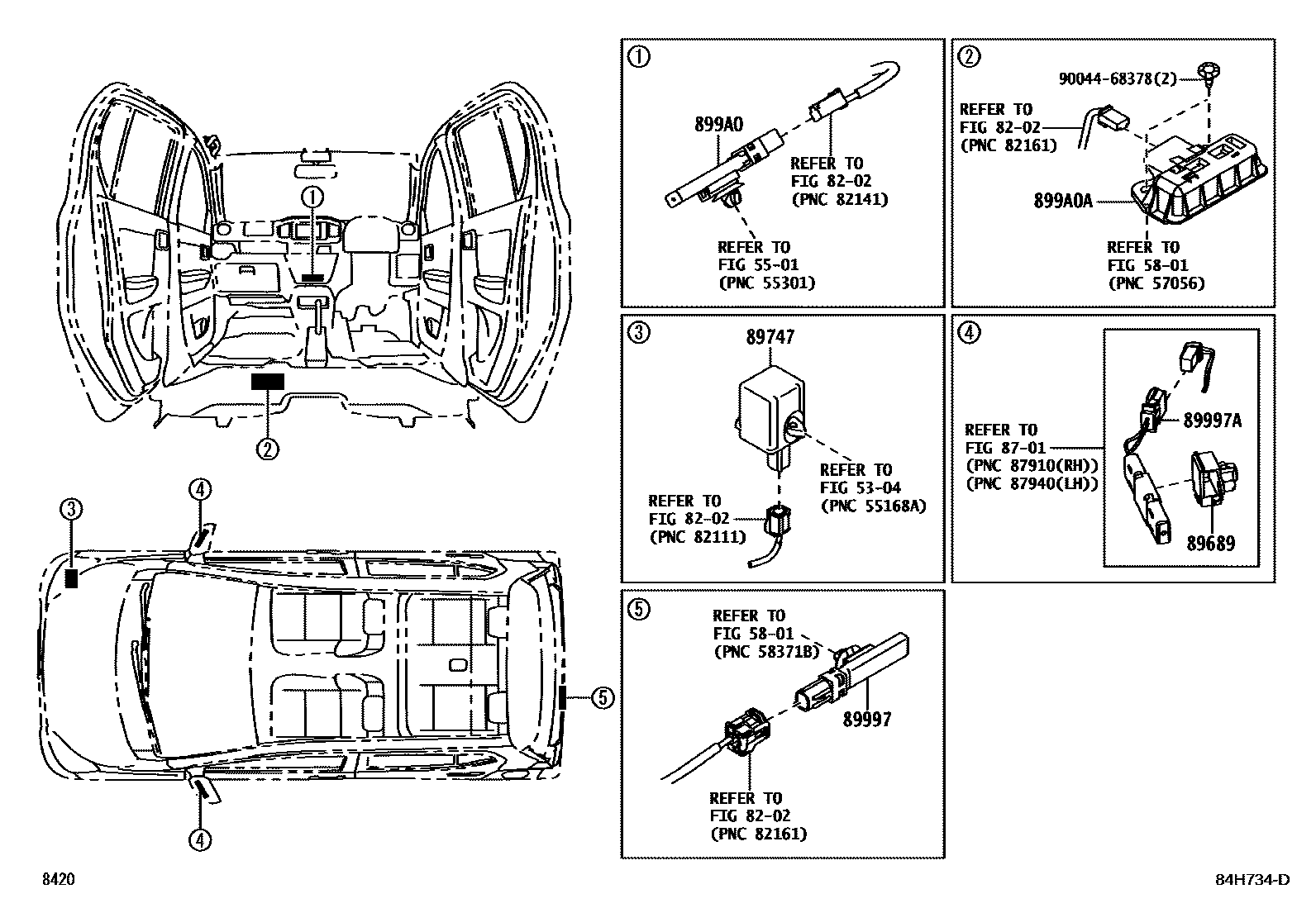

WIRELESS DOOR LOCK

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8701MIRROR

→ Go to FIG 87-01

89689CLAMP, WIRELESS DOOR LOCK

main87616-B2010×2iLA350,360..G201705-202004

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iLA350,360..G201705

89997ANTENNA, ELECTRICAL KEY

main89997-B1100iLA350,360..G201705

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-B2380×2iLA350,360..G201705

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main89997-B2360iLA350,360..G201705

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main89997-B2430iLA350,360..G201705

9004468378

main90044-68378

12 parts on this diagram · 1 diagram in section
