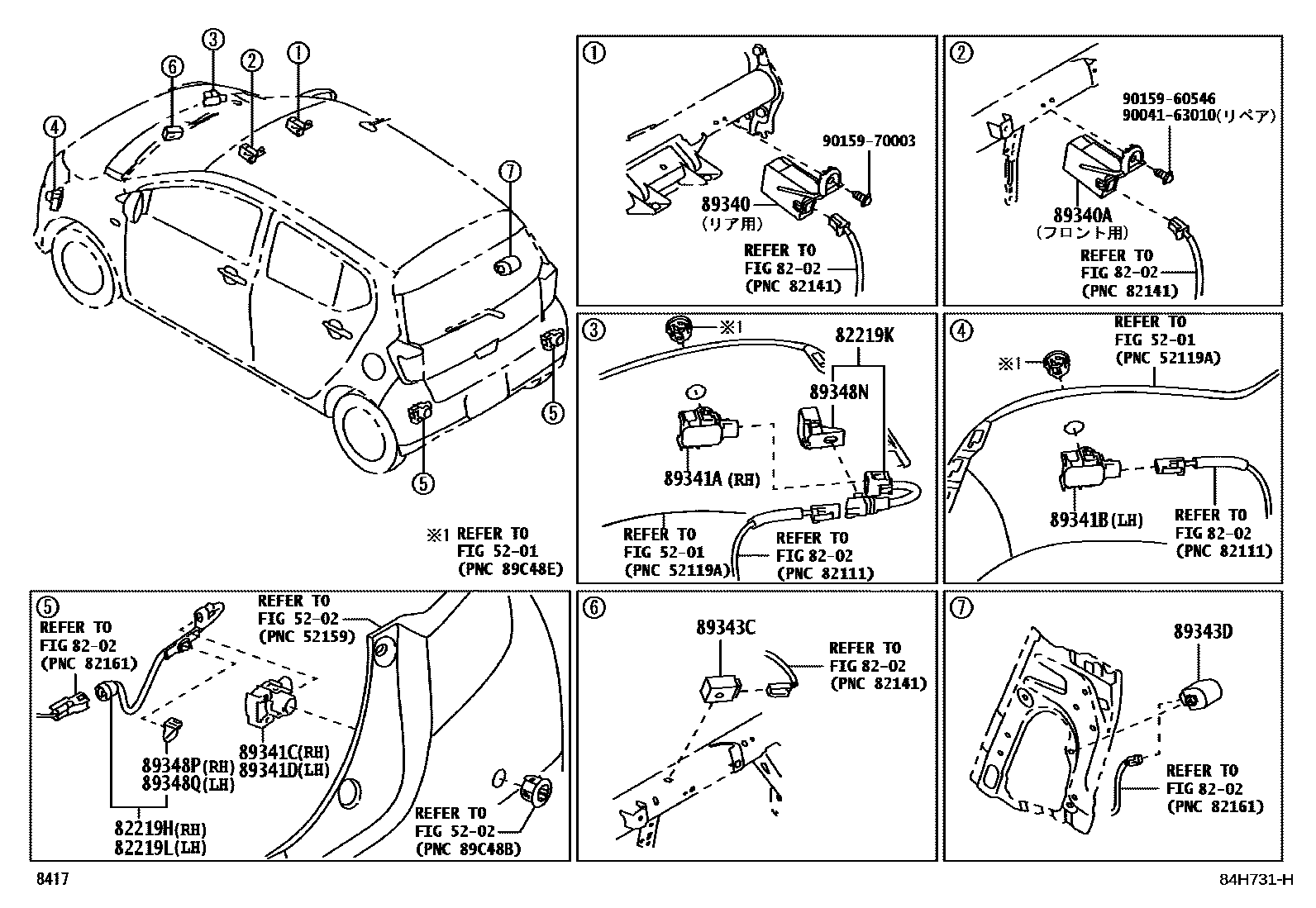

CLEARANCE & BACK SONAR

0001 1 0002 1 0003 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

8202WIRING & CLAMP

→ Go to FIG 82-02

82219HWIRE, SENSOR

main82219-B2180iLA350,360..B,L; LA350,360..G,X201705-202410

main82219-B2430iLA350,360202410

82219KWIRE, SENSOR

main82219-B2160iLA350,360..G,X201705

82219LWIRE, SENSOR

main82219-B2170iLA350,360..B,L; LA350,360..G,X201705-202410

main82219-B2420iLA350,360202410

89340COMPUTER ASSY, REAR CLEARANCE WARNING

main89340-B2090iLA350,360..B,L; LA350,360..G,X201705-201807

main89340-B2130iLA350,360..B,L; LA350,360..G,X201808-202410

main89340-B2260iLA350,360202410

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-B2100iLA350,360..B,L; LA350,360..G,X201705-202410

main89340-B2270iLA350,360202410

89341ASENSOR, ULTRASONIC, NO.1

main89341-B2020-A0iLA350,360..G,X201705

WHITE,W19

main89341-B2020-A1iLA350,360..G,X; LA350,360..L201705-202010

main89341-B2020-A3iLA350,360..L202410

WHITE PEARL SE.,W25

main89341-B2020-B0iLA350,360..B,L202410

SILVER ME.,S28

main89341-B2020-C0iLA350,360..L202410

BLACK M.M.,X07

main89341-B2020-D0iLA350,360..G,X201705

BROWN MC.CS,R59

main89341-B2020-D1iLA350,360..G,X202001

RED ME.,R67

main89341-B2020-D4iLA350,360..G,X; LA350,360..L201705-202001

main89341-B2020-F0iLA350,360..L202410

YELLOW SE.,Y13

main89341-B2020-J2iLA350,360..L202410

BLUE,B80

main89341-B2020-J8iLA350,360..B,L202410

LT. BLUE ME.,B83

89341BSENSOR, ULTRASONIC, NO.2

main89341-B2020-A0iLA350,360..B,L202410

WHITE,W19

main89341-B2020-A1iLA350,360..G,X; LA350,360..L201705-202010

main89341-B2020-A3iLA350,360..G,X202010

WHITE PEARL SE.,W25

main89341-B2020-B0iLA350,360..G,X201705

SILVER ME.,S28

main89341-B2020-C0iLA350,360..G,X201705

BLACK M.M.,X07

main89341-B2020-D0iLA350,360..G,X201705

BROWN MC.CS,R59

main89341-B2020-D1iLA350,360..G,X202001

RED ME.,R67

main89341-B2020-D4iLA350,360..G,X; LA350,360..L201705-202001

main89341-B2020-F0iLA350,360..L202410

YELLOW SE.,Y13

main89341-B2020-J2iLA350,360..L202410

BLUE,B80

main89341-B2020-J8iLA350,360..G,X201705

LT. BLUE ME.,B83

89341CSENSOR, ULTRASONIC, NO.3

main89341-B2020-A0iLA350,360..B,L202410

WHITE,W19

main89341-B2020-A1iLA350,360..G,X; LA350,360..L201705-202010

main89341-B2020-A3iLA350,360..G,X202010

WHITE PEARL SE.,W25

main89341-B2020-B0iLA350,360..B,L202410

SILVER ME.,S28

main89341-B2020-C0iLA350,360..G,X201705

BLACK M.M.,X07

main89341-B2020-D0iLA350,360..L202410

BROWN MC.CS,R59

main89341-B2020-D1iLA350,360..L202410

RED ME.,R67

main89341-B2020-D4iLA350,360..G,X; LA350,360..L201705-202001

main89341-B2020-F0iLA350,360..L202410

YELLOW SE.,Y13

main89341-B2020-J2iLA350,360..L202410

BLUE,B80

main89341-B2020-J8iLA350,360..B,L202410

LT. BLUE ME.,B83

89341DSENSOR, ULTRASONIC, NO.4

main89341-B2020-A0iLA350,360..G,X201705

WHITE,W19

main89341-B2020-A1iLA350,360..G,X; LA350,360..L201705-202010

main89341-B2020-A3iLA350,360..L202410

WHITE PEARL SE.,W25

main89341-B2020-B0iLA350,360..G,X201705

SILVER ME.,S28

main89341-B2020-C0iLA350,360..G,X201705

BLACK M.M.,X07

main89341-B2020-D0iLA350,360..G,X201705

BROWN MC.CS,R59

main89341-B2020-D1iLA350,360..L202410

RED ME.,R67

main89341-B2020-D4iLA350,360..G,X; LA350,360..L201705-202001

main89341-B2020-F0iLA350,360..L202410

YELLOW SE.,Y13

main89341-B2020-J2iLA350,360..L202410

BLUE,B80

main89341-B2020-J8iLA350,360..G,X201705

LT. BLUE ME.,B83

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iLA350,360..G,X201705

89343DBUZZER, CLEARANCE WARNING, NO.2

main89747-52010iLA350,360..G,X201705

89348NCLIP, ULTRASONIC SENSOR, NO.1

main89348-76010iLA350,360..G,X201705

89348PCLIP, ULTRASONIC SENSOR, NO.2

main89348-35030iLA350,360..G,X201705

89348QCLIP, ULTRASONIC SENSOR, NO.3

main89348-35030iLA350,360..B,L; LA350,360..G,X201705-202410

9004163010

main90041-63010

9015960546

main90159-60546

9015970003

main90159-70003

20 parts on this diagram · 3 diagrams in section
