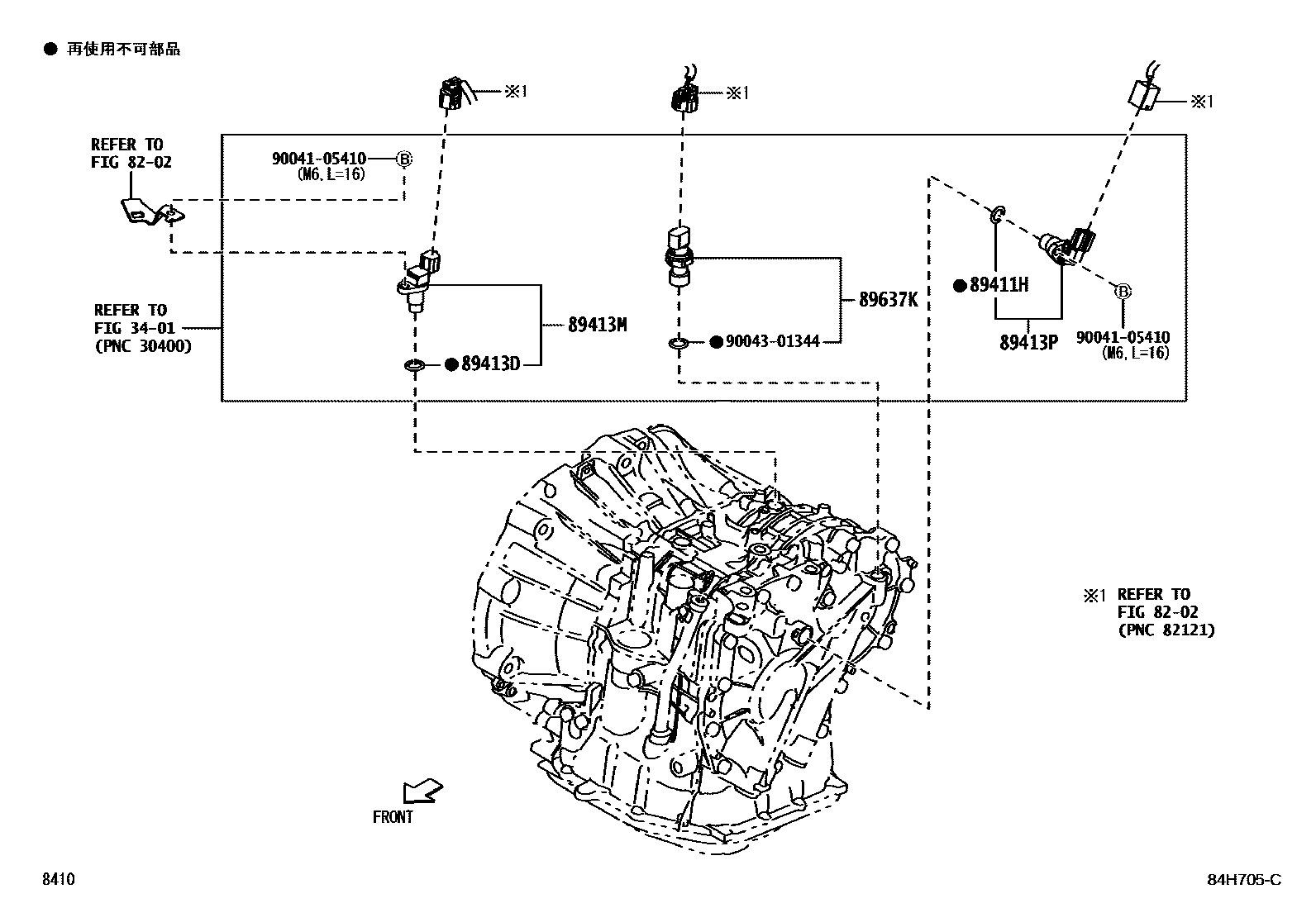

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

8202WIRING & CLAMP

→ Go to FIG 82-02

89411HRING, O

main90043-01278iLA350,360201705

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90043-01278iLA350,360201705

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-97202iLA350,360201705

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-B2010iLA350,360201705

89637KSENSOR, OIL PRESSURE

main89637-B2010iLA350,360201705

9004105410

main90041-05410

9004301344

main90043-01344

9 parts on this diagram · 1 diagram in section
