WIRING & CLAMP

0001 1�������� ���� 0002 1�������� 0003 1�������� 0004 1������������ 0005 1��� & ��� 0006 1��� 0007 1�������� 0008 1���������� 0009 1���� 0010 1����

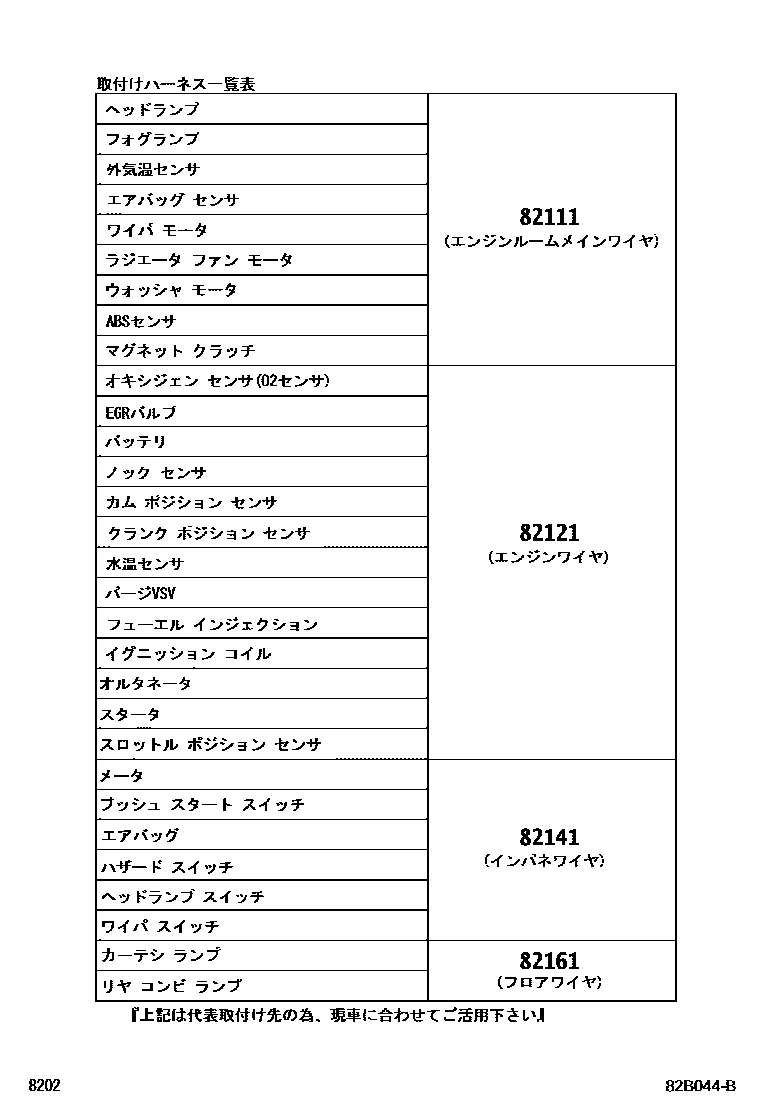

82111WIRE, ENGINE ROOM MAIN

main82116-B2L40supersedes 82116-B2L30iLA350,360..B,L202410

main82116-B2L50iLA350,360..G,X201705

82121WIRE, ENGINE

main82121-B2830iLA350,360201705-202207

main82121-B2831iLA350,360202207

82141WIRE, INSTRUMENT PANEL

main82141-BAC40supersedes 82141-BAC20iLA350,360..B,L; LA350,360..X201705-202012

main82141-BAC41supersedes 82141-BAC21iLA350,360..B,L; LA350,360..X202012-202410

main82141-BAC42iLA350,360..B,L,X202410

main82141-BAC50iLA350,360..G201705-202410

main82141-BAC51iLA350,360..G202410

82161WIRE, FLOOR

main82161-BAE70iLA350,360..G201705-202410

main82161-BAE71iLA350,360..G202410

main82161-BAE80supersedes 82161-BA220iLA350,360..B,L; LA350,360..X201705-202410

main82161-BAE81iLA350,360..B,L,X202410

4 parts on this diagram · 10 diagrams in section
