INTERIOR LAMP

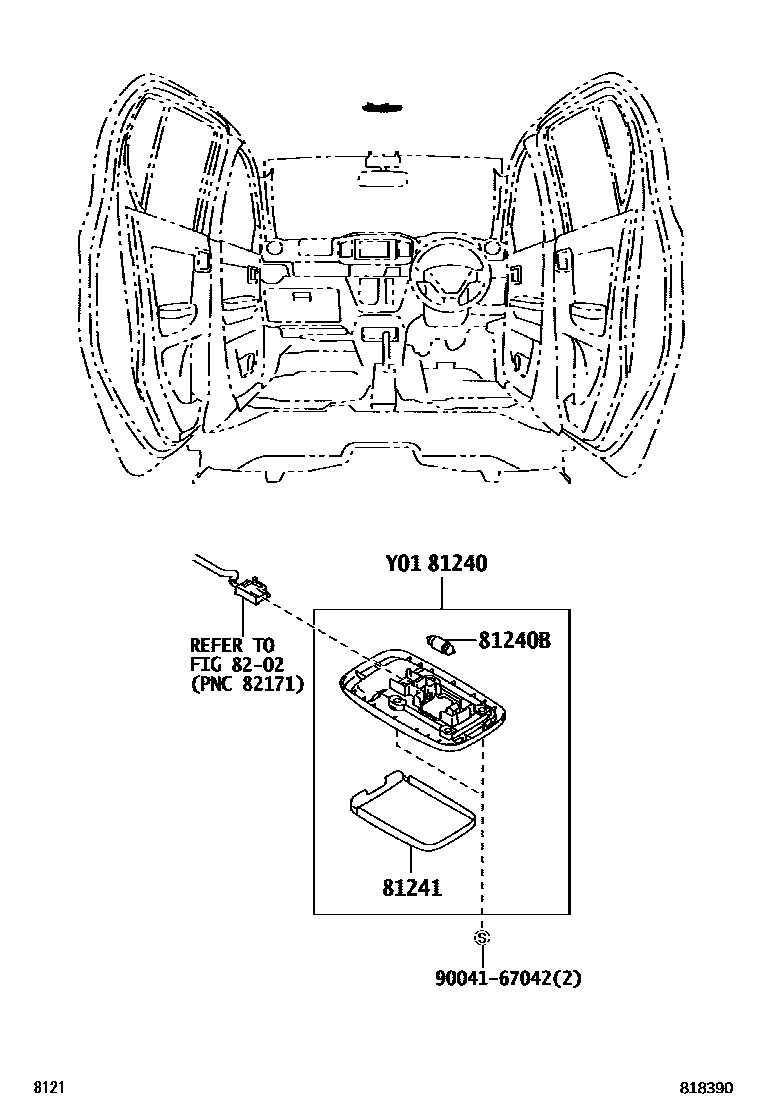

Parts diagram

81240LAMP ASSY, ROOM, NO.1

main81240-B2050-B0i201705

81240BBULB, ROOM LAMP, NO.1

main90049-51153i201705

81241LENS, ROOM LAMP, NO.1

main81241-97201i201705

8202WIRING & CLAMP

→ Go to FIG 82-02

9004167042

main90041-67042

5 parts on this diagram · 1 diagram in section
