Toyota PIXIS EPOCH — REAR COMBINATION LAMP

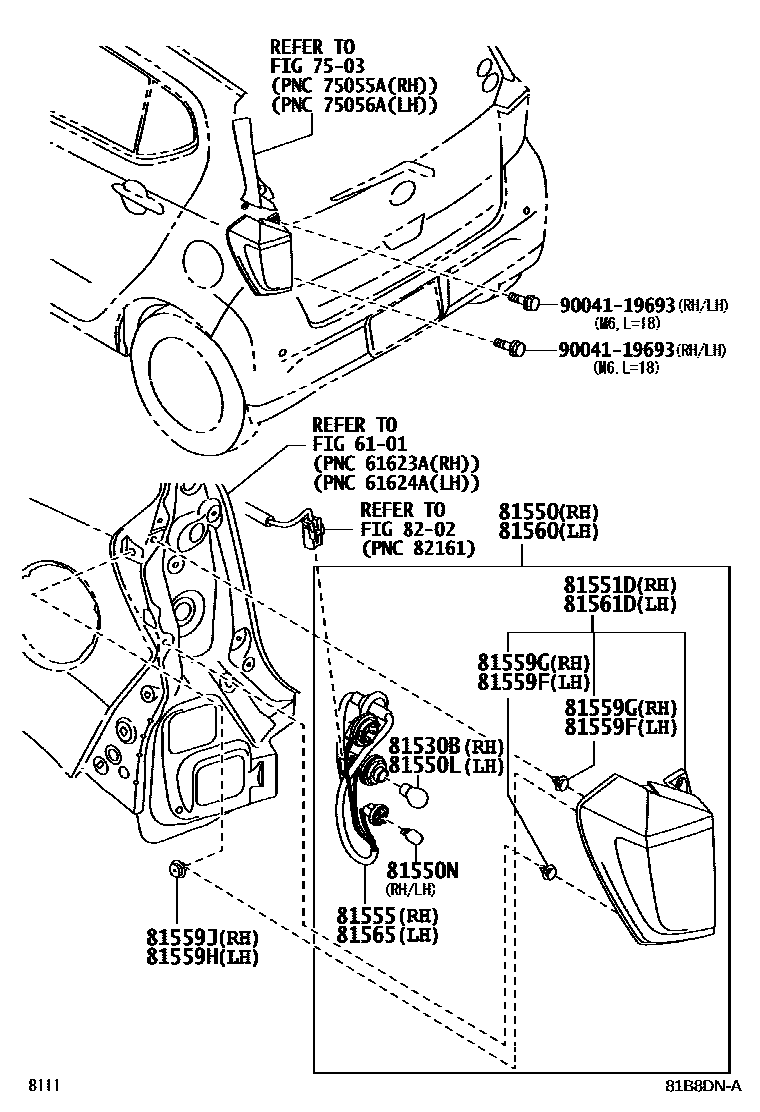

Parts diagram
6101SIDE MEMBER
→ Go to FIG 61-01
7503SIDE MOULDING
→ Go to FIG 75-03
81530BBULB, REAR TURN SIGNAL LAMP
81550LAMP ASSY, REAR COMBINATION, RH
90981-11059
90049-51148
81550-B2740
81550LBULB, REAR TURN SIGNAL LAMP
81550NBULB, BACK UP LAMP
81551DLENS & BODY, REAR COMBINATION LAMP, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-B2360
81559FCLIP, RR COMBINATION LAMP, LH
81559GCLIP, RR COMBINATION LAMP, RH
81559HCLIP, RR COMBINATION LAMP, LH
81559JCLIP, RR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81560-B2740
81561DLENS & BODY, REAR COMBINATION LAMP, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81555-B2360
8202WIRING & CLAMP
→ Go to FIG 82-02
9004119693
90041-19693

17 parts on this diagram · 1 diagram in section

REAR COMBINATION LAMP for Toyota PIXIS EPOCH

This section contains 17 genuine Toyota parts for the REAR COMBINATION LAMP system of the Toyota PIXIS EPOCH. Key components include: SIDE MEMBER, SIDE MOULDING, BULB, REAR TURN SIGNAL LAMP, LAMP ASSY, REAR COMBINATION, RH.
