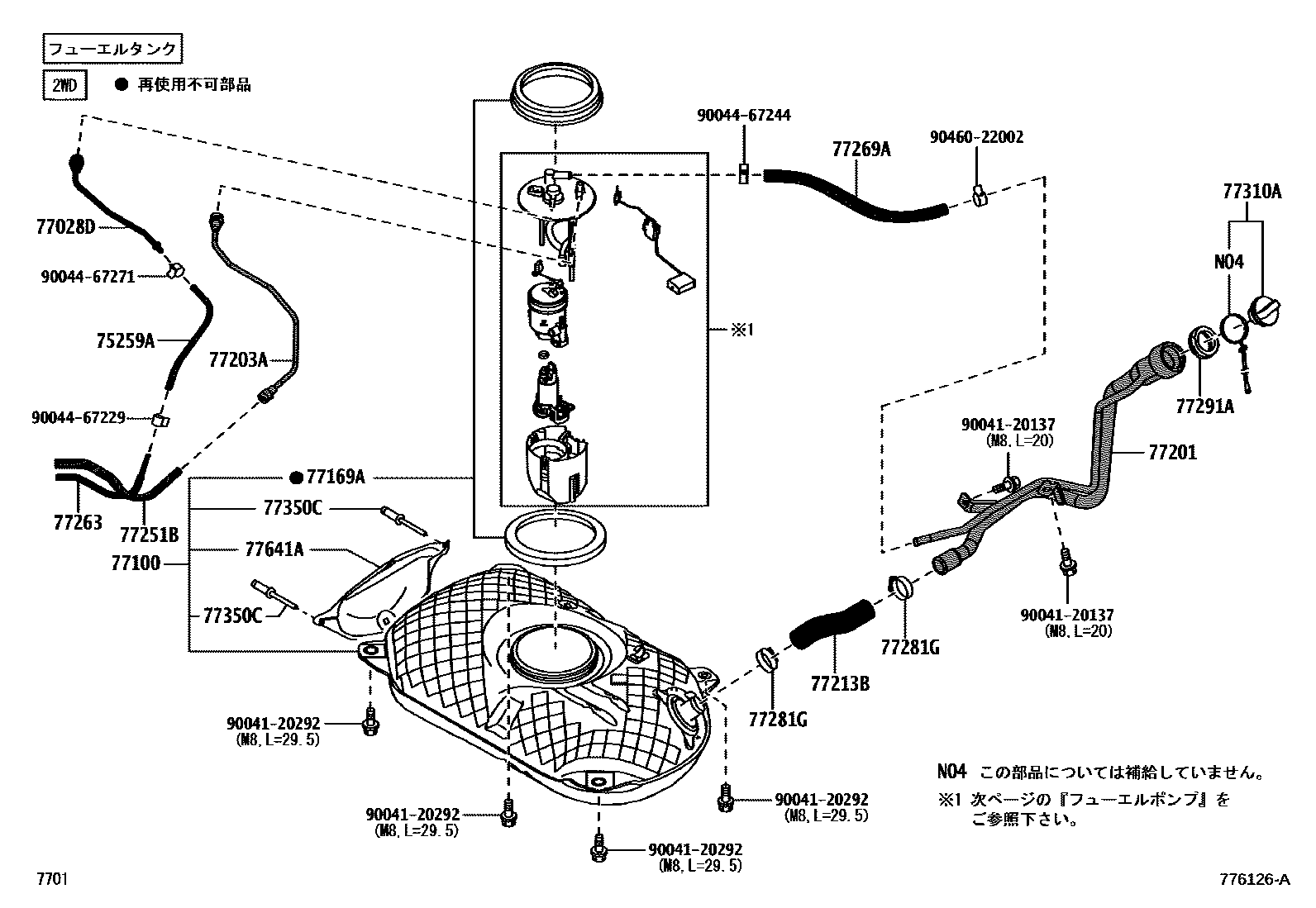

FUEL TANK & TUBE

0001 1��������(2WD) 0002 1����� �����(2WD) 0003 1�������� 4WD 0004 1����� �����(4WD) 0005 1���������� 0006 1����� ����� 0007 1����� ���� �����

75259AHOSE, FUEL

main77259-B2050iLA350,360201705

77028DTUBE SUB-ASSY, FUEL EMISSION, REAR

main77028-B2010iLA350201705

77100TANK ASSY, FUEL

main77001-B2120iLA360201705

main77001-B2320iLA350201705

77169AGASKET, FUEL SUCTION TUBE SET

main23232-87401iLA360201705

main77169-B2030iLA350201705

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-B2430iLA350201705

main77201-B2440iLA360201705

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-B2020iLA360201705

main77203-B2060iLA350201705

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-B2030iLA360201705

main77213-B2110iLA350201705

77251BTUBE, FUEL MAIN

main77251-B2300iLA350,360201705

77263TUBE, FUEL TANK TO CANISTER, NO.3

main77263-B2300iLA350,360201705

77269AHOSE, FUEL TANK BREATHER

main77269-B2020iLA360201705

main77269-B2080iLA350201705

77281GCLAMP, FUEL HOSE

main90044-60129×2iLA350201705

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-B2060iLA350,360201705

77310ACAP ASSY, FUEL TANK

main77300-52030iLA350,360201705

77350LID ASSY, FUEL FILLER OPENING

main77351-B2420iLA350,360201705

77350CRIVET

main77645-B2030×2iLA350201705

77641APROTECTOR, FUEL TANK, NO.1

main77641-B2050iLA350201705

9004120137

main90041-20137

9004120292

main90041-20292

9004467229

main90044-67229

9004467244

main90044-67244

9004467271

main90044-67271

9046022002

main90460-22002

22 parts on this diagram · 7 diagrams in section
