SIDE MOULDING

62225BGARNISH, FRONT PILLAR, LOWER RH

main62225-B2170iLA350,360201705

62226AGARNISH, FRONT PILLAR, LOWER LH

main62226-B2170iLA350,360201705

62231APAD, QUARTER PILLAR, RH

main62213-B2020iLA350,360201705

62232APAD, QUARTER PILLAR, LH

main62213-B2020iLA350,360201705

75055AGARNISH SUB-ASSY, QUARTER, OUTER RH

main75577-B2060iLA350,360201705

75056AGARNISH SUB-ASSY, QUARTER, OUTER LH

main75578-B2060iLA350,360201705

75496BCLIP, ROOF DRIP SIDE FINISH MOULDING, RH

main75561-B1020iLA350,360201705

75497ACLIP, ROOF DRIP SIDE FINISH MOULDING, LH

main75561-B1020iLA350,360201705

75498CLIP, QUARTER GARNISH, NO.1

main90044-67616×2iLA350,360201705

75499CLIP, QUARTER GARNISH, NO.2

main90044-67616×2iLA350,360201705

75545ECLIP, ROOF DRIP SIDE FINISH MOULDING, RH

main75561-B1020iLA350,360201705

75546CCLIP, ROOF DRIP SIDE FINISH MOULDING, LH

main75561-B1020iLA350,360201705

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-B2290iLA350,360201705

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-B2290iLA350,360201705

75564ARETAINER, QUARTER GARNISH, LOWER RH

main67771-B2080iLA350,360201705

75565ARETAINER, QUARTER GARNISH, LOWER LH

main67771-B2080iLA350,360201705

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

9004119693

main90041-19693

9004468378

main90044-68378

9046705172

main90467-05172

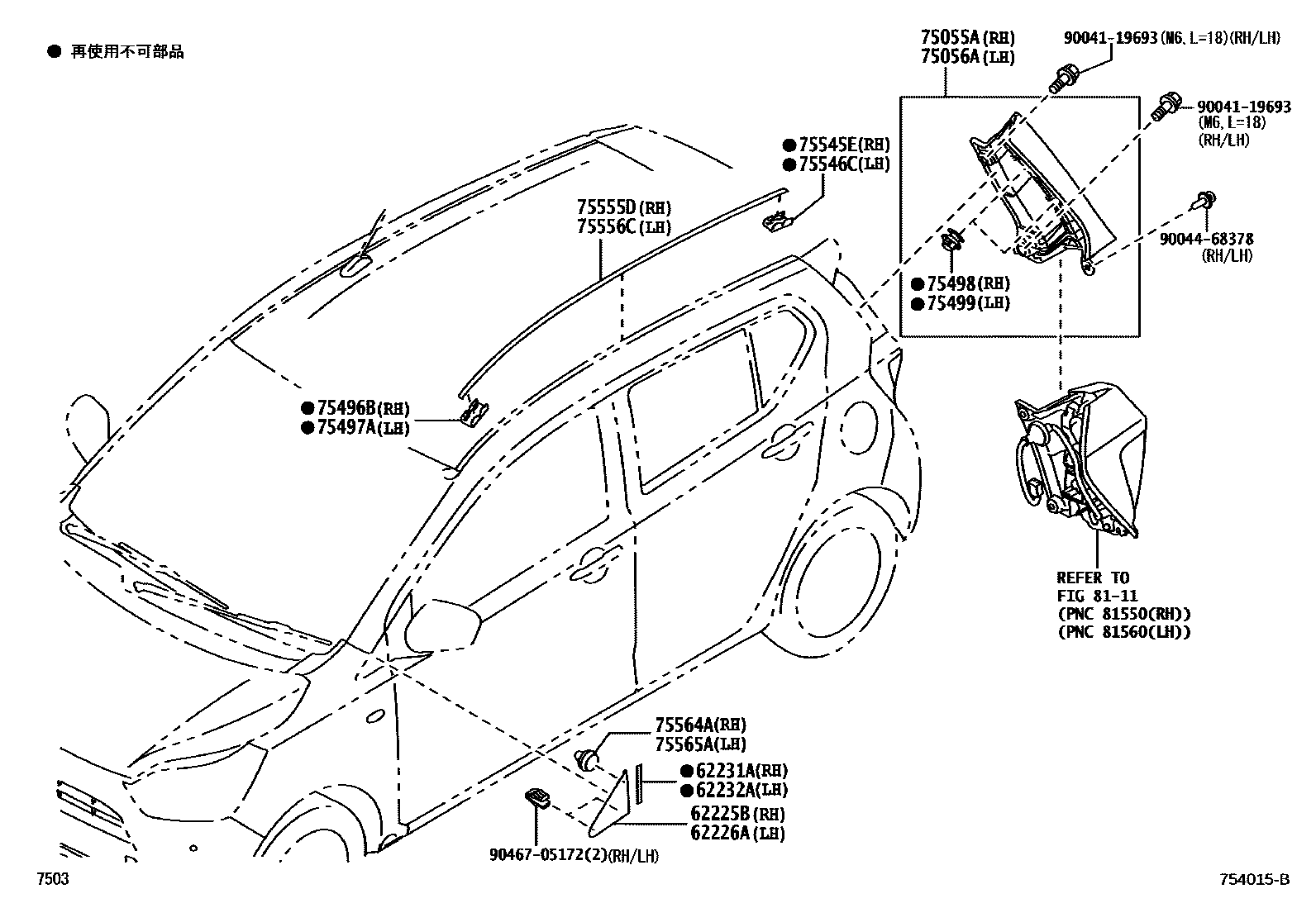

20 parts on this diagram · 1 diagram in section
