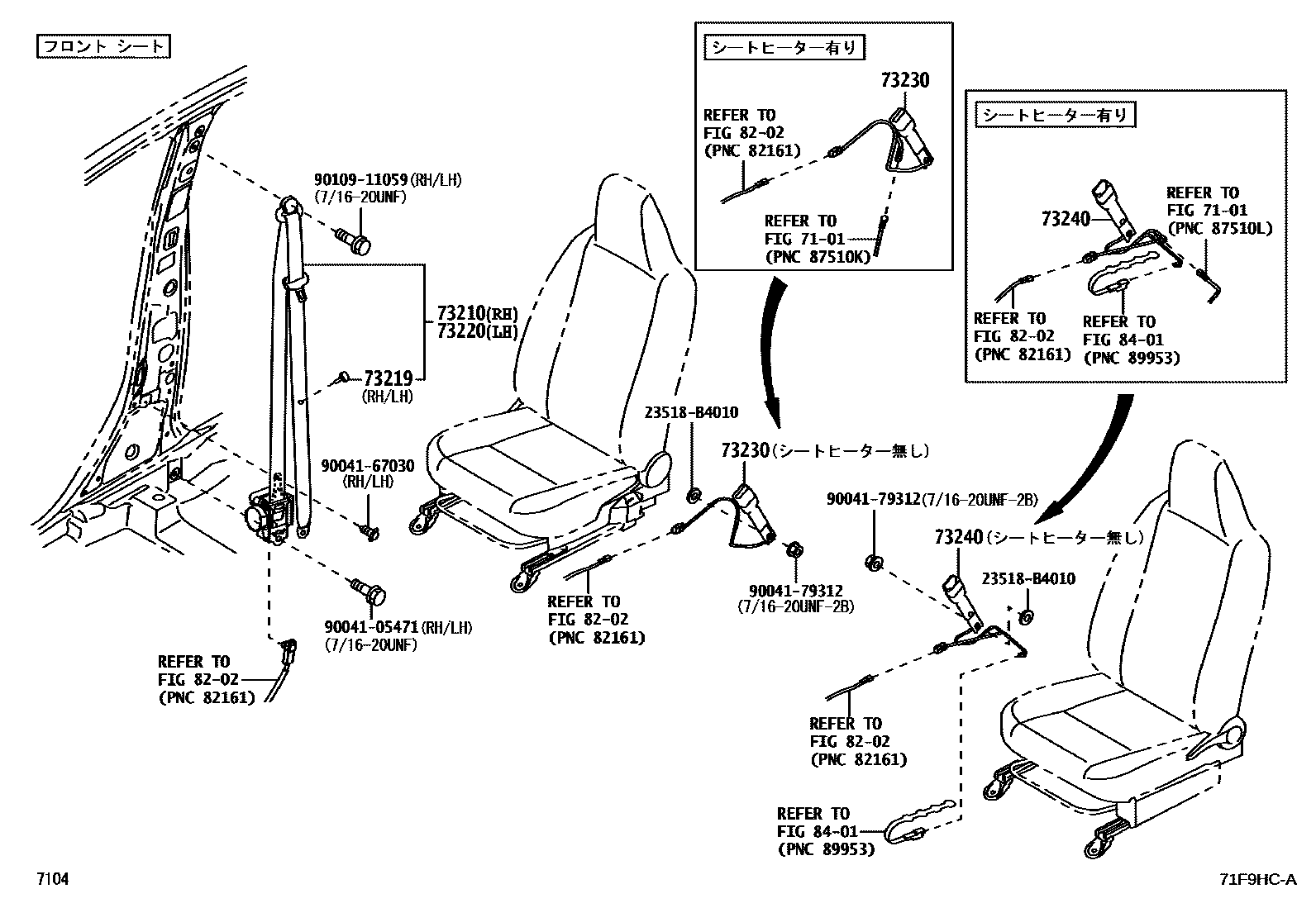

SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� ��� 0002 1�� ���

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-B2B30-C1iLA350,360201705

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73690-87401iLA350,360201705

main73690-B1010iLA350,360201705

main73690-B1020iLA350,360201705

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-B2C00-C1iLA350,360201705

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-B2480-C0iLA350,360..B,L,X201705-201707

BLACK,TRIM2#

main73230-B2481-C0iLA350,360..B,L,X201708

BLACK,TRIM2#

main73230-B2490-C0iLA350,360..G201705-201707

BLACK,TRIM2#

main73230-B2491-C0iLA350,360..G201708

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-B2640-C0iLA350,360..B,L,X201705-201707

BLACK,TRIM2#

main73230-B2641-C0iLA350,360..B,L,X201708

BLACK,TRIM2#

main73230-B2840-C0iLA350,360..G201705-201707

BLACK,TRIM2#

main73230-B2841-C0iLA350,360..G201708

BLACK,TRIM2#

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

23518B4010WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-B4010

9004105471

main90041-05471

9004167030

main90041-67030

9004179312

main90041-79312

9010911059

main90109-11059

13 parts on this diagram · 2 diagrams in section
