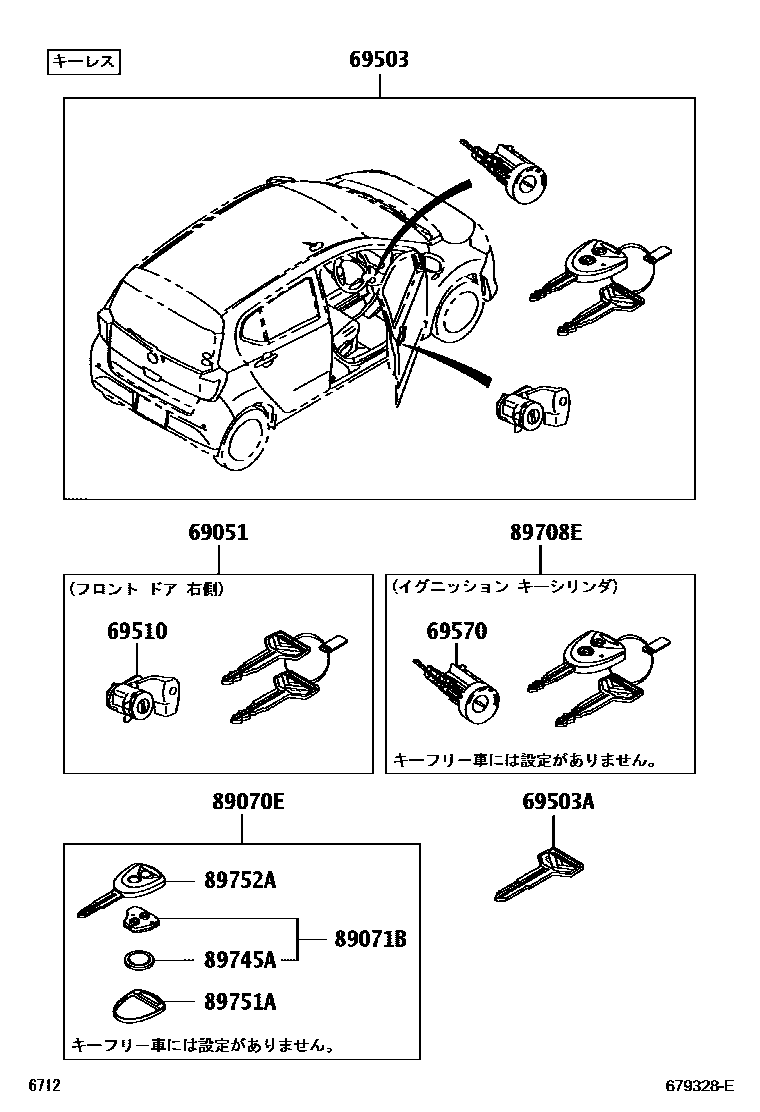

LOCK CYLINDER SET

0001 1���� 0002 1�����

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-B1290iLA350,360..B,L,X201705

69503CYLINDER SET, LOCK

main69005-B1600iLA350,360..B,L,X201705

main69005-B1610iLA350,360..G201705

69503AKEY, BLANK

main90999-00153iLA350,360..B,L,X201705

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-B1050iLA350,360..B,L,X201705

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-B2040iLA350,360..B,L,X201705

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-B1070iLA350,360..B,L,X201705

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-B2070iLA350,360..B,L,X201705

89708ECYLINDER SET, LOCK W/TRANSMITTER

main89708-B1110iLA350,360..B,L,X201705

89745ABATTERY, TRANSMITTER

main89745-B2050iLA350,360..B,L,X201705

main89745-B2060iLA350,360..G201705

89751ACOVER, TRANSMITTER HOUSING

main89751-B1050iLA350,360..B,L,X201705

main89751-B2120×2iLA350,360..G201705

89752ACASE, TRANSMITTER HOUSING

main89752-B1030iLA350,360..G201705

main89752-B1050iLA350,360..B,L,X201705

11 parts on this diagram · 2 diagrams in section
