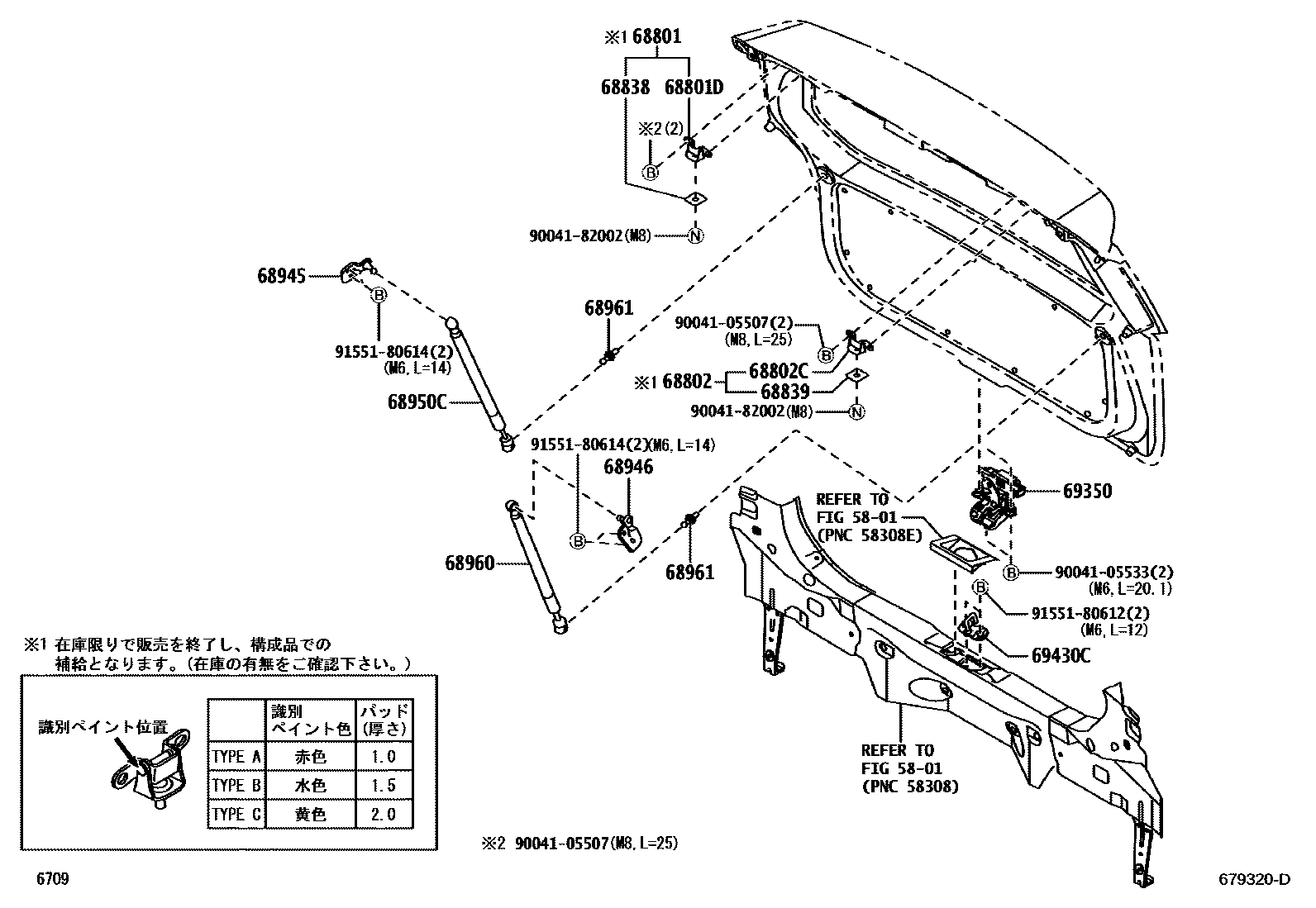

BACK DOOR LOCK & HANDLE

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

68801HINGE SUB-ASSY, BACK DOOR, UPPER RH

main68801-B1050iLA350,360201705

main68801-B1060iLA350,360201705

main68801-B1070iLA350,360201705

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-B1080iLA350,360202005

68802HINGE SUB-ASSY, BACK DOOR, UPPER LH

main68802-B1010iLA350,360201705

main68802-B1020iLA350,360201705

main68802-B1030iLA350,360201705

68802CHINGE SUB-ASSY, BACK DOOR, LH

main68802-B1040iLA350,360202005

68838PAD, BACK DOOR HINGE, NO.1

main68838-B1020iLA350,360202005

main68838-B1030iLA350,360202005

main68838-B1040iLA350,360202005

68839PAD, BACK DOOR HINGE, NO.2

main68838-B1020iLA350,360202005

main68838-B1030iLA350,360202005

main68838-B1040iLA350,360202005

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-B2110iLA350,360201705

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-B2110iLA350,360201705

68950CSTAY ASSY, BACK DOOR, RH

main68950-B2440supersedes 68950-B2430iLA360201705

68960STAY ASSY, BACK DOOR, LH

main68960-B2290supersedes 68960-B2280iLA360201705

68961BOLT, BACK DOOR STAY

main68961-B2040×2iLA350,360201705

69350LOCK ASSY, BACK DOOR

main69350-B2400iLA350,360201705

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-B2070iLA350,360201705

9004105507

main90041-05507

9004105533

main90041-05533

9004182002

main90041-82002

9155180612

main91551-80612

9155180614

main91551-80614

19 parts on this diagram · 1 diagram in section
