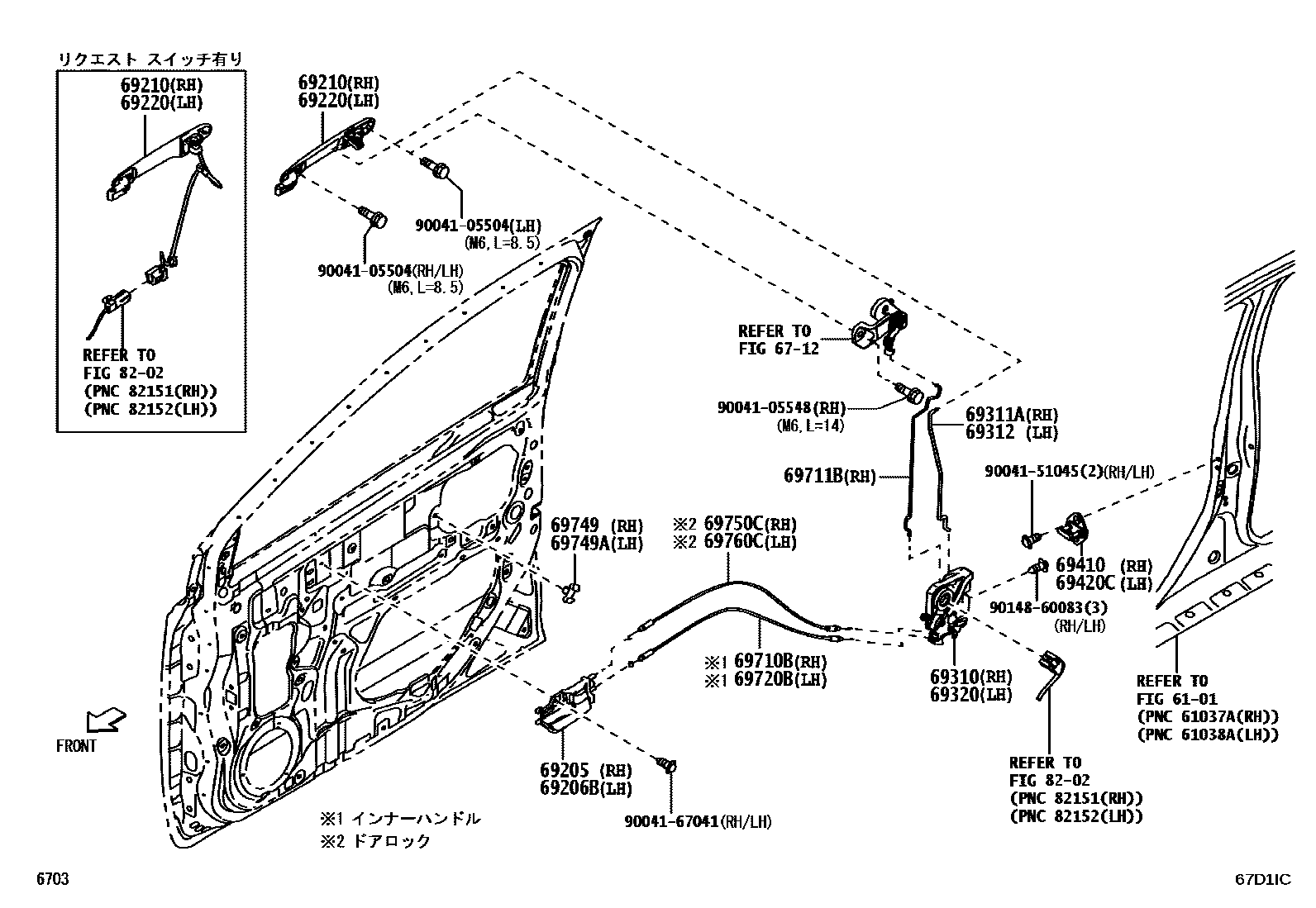

FRONT DOOR LOCK & HANDLE
6101
6712
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#
BLACK,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SILVER ME.,B80 ,B83 ,R59 ,R67 ,R72 ,S28 ,W19 ,W24 ,W25 ,X07 ,Y13
sub69210-B1110
SILVER ME.,B80 ,B83 ,R59 ,R67 ,R72 ,S28 ,W19 ,W24 ,W25 ,X07 ,Y13
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SILVER ME.,B80 ,B83 ,R59 ,R67 ,R72 ,S28 ,W19 ,W24 ,W25 ,X07 ,Y13
sub69220-B1070
SILVER ME.,B80 ,B83 ,R59 ,R67 ,R72 ,S28 ,W19 ,W24 ,W25 ,X07 ,Y13
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69420CPLATE ASSY, DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69749CLAMP, FRONT DOOR LOCK LINK
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8202
9004105504
main90041-05504
9004105548
main90041-05548
9004151045
main90041-51045
9004167041
main90041-67041
9014860083
main90148-60083
25 parts on this diagram · 1 diagram in section
