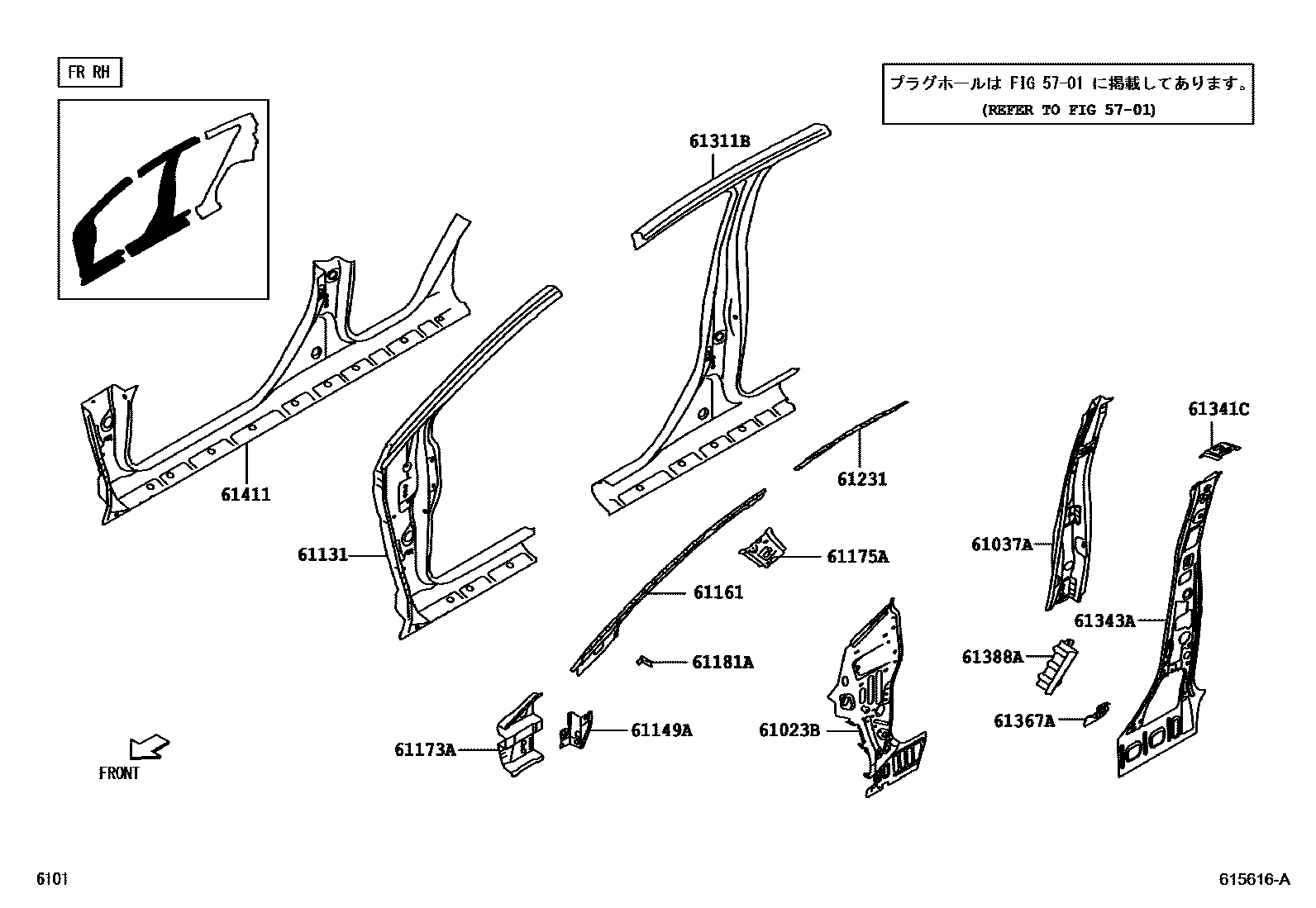

SIDE MEMBER

0001 1FR RH 0002 1RR RH 0003 1FR LH 0004 1RR LH 0005 1SIDE PANEL CUT

5701HOLE PLUG

→ Go to FIG 57-01

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-B2300iLA350,360201705

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-B2440iLA350,360201705

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-B2460iLA350,360201705

61149AREINFORCEMENT, FRONT DOOR CHECK, RH

main61157-B2200iLA350,360201705

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-B2290iLA350,360201705

61173AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH

main61173-B2200iLA350,360201705

61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

main61175-B2250iLA350,360201705

61181ABRACKET, INSTRUMENT SIDE, RH

main61183-B2010iLA350,360201705

61231RAIL, ROOF SIDE, INNER RH

main61231-B2330iLA350,360201705

61311BPILLAR, CENTER BODY, OUTER RH

main61311-B2420iLA350,360201705

61341CPILLAR, CENTER BODY, INNER UPPER RH

main61341-B2120iLA350,360201705

61343APILLAR, CENTER BODY, INNER RH

main61343-B2280iLA350,360201705

61367AREINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER RH

main61367-B2150iLA350,360201705

61388APLATE, CENTER BODY PILLAR END, RH

main61388-B2050iLA350,360201705

61411PANEL, ROCKER, OUTER RH

main61411-B2550iLA350,360201705

16 parts on this diagram · 5 diagrams in section
