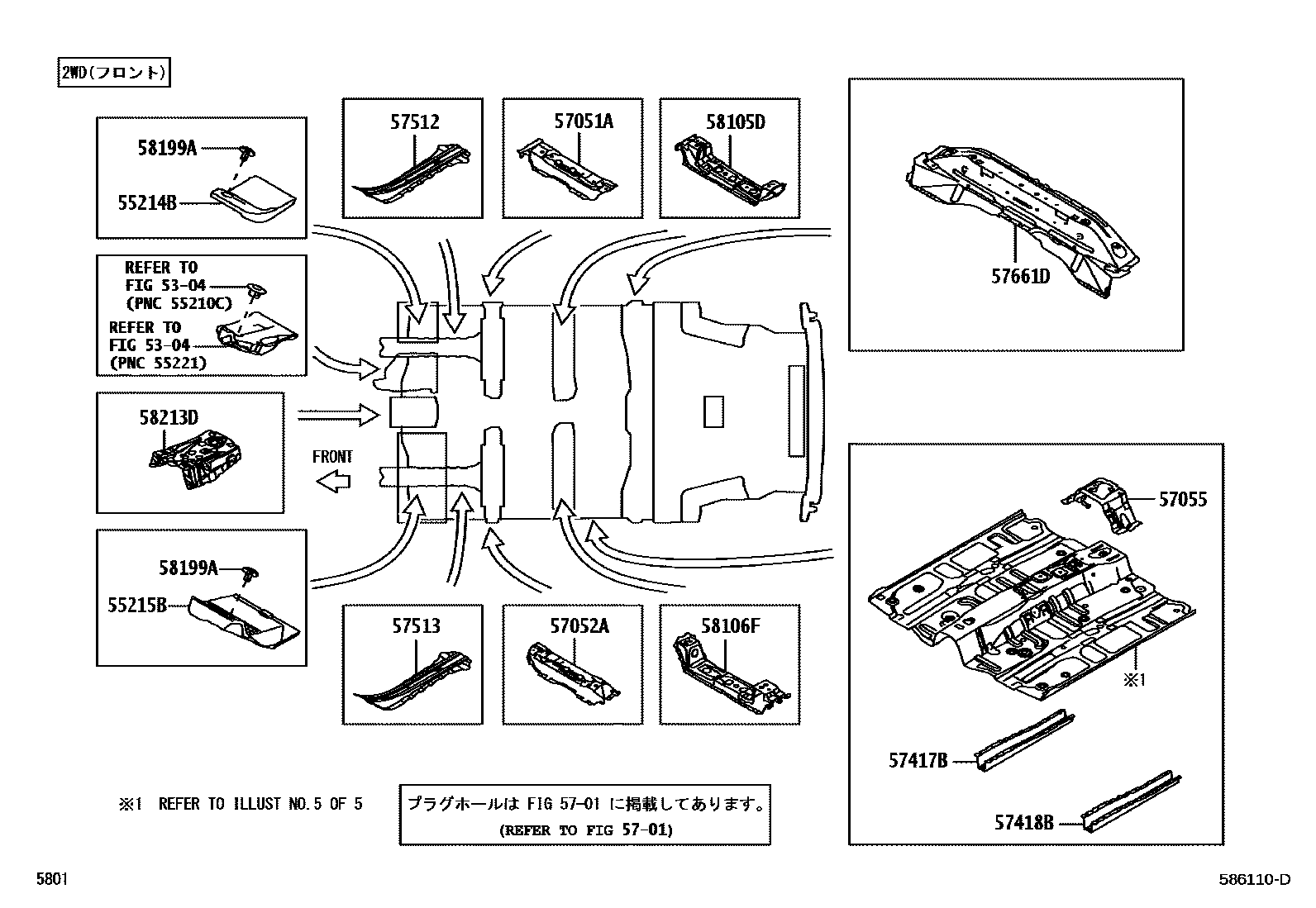

FLOOR PAN & LOWER BACK PANEL

0001 12WD FR 0002 12WD RR 0003 14WD FR 0004 14WD RR 0005 1����������

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

55214BPAD, DASH PANEL INSULATOR, NO.2

main55214-B2150iLA350,360201705

55215BPAD, DASH PANEL INSULATOR, NO.3

main55215-B2090iLA350,360201705

5701HOLE PLUG

→ Go to FIG 57-01

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-B2180iLA350,360201705

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-B2220iLA350,360201705

57055REINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.5

main57055-B2090iLA350..B,G,L,X201705

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-B2130iLA350,360201705

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-B2130iLA350,360201705

57512REINFORCEMENT, FRONT FLOOR, RH

main57427-B2060iLA350,360201705

57513REINFORCEMENT, FRONT FLOOR, LH

main57427-B2060iLA350,360201705

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57661-B2360iLA350..B,G,L,X201705

58105DRETAINER SUB-ASSY, SEAT RAIL, REAR RH

main58105-B2120iLA350,360201705

58106FBRACKET SUB-ASSY, FRONT SEAT MOUNTING, OUTSIDE LH

main58106-B2070iLA350,360201705

58199ACLIP, FOOTREST, NO.2

main58199-B2010-C0×2iLA350,360201705-201812

BLACK

main90044-67397×2iLA350,360201901

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-B2280iLA350,360201705

16 parts on this diagram · 5 diagrams in section
