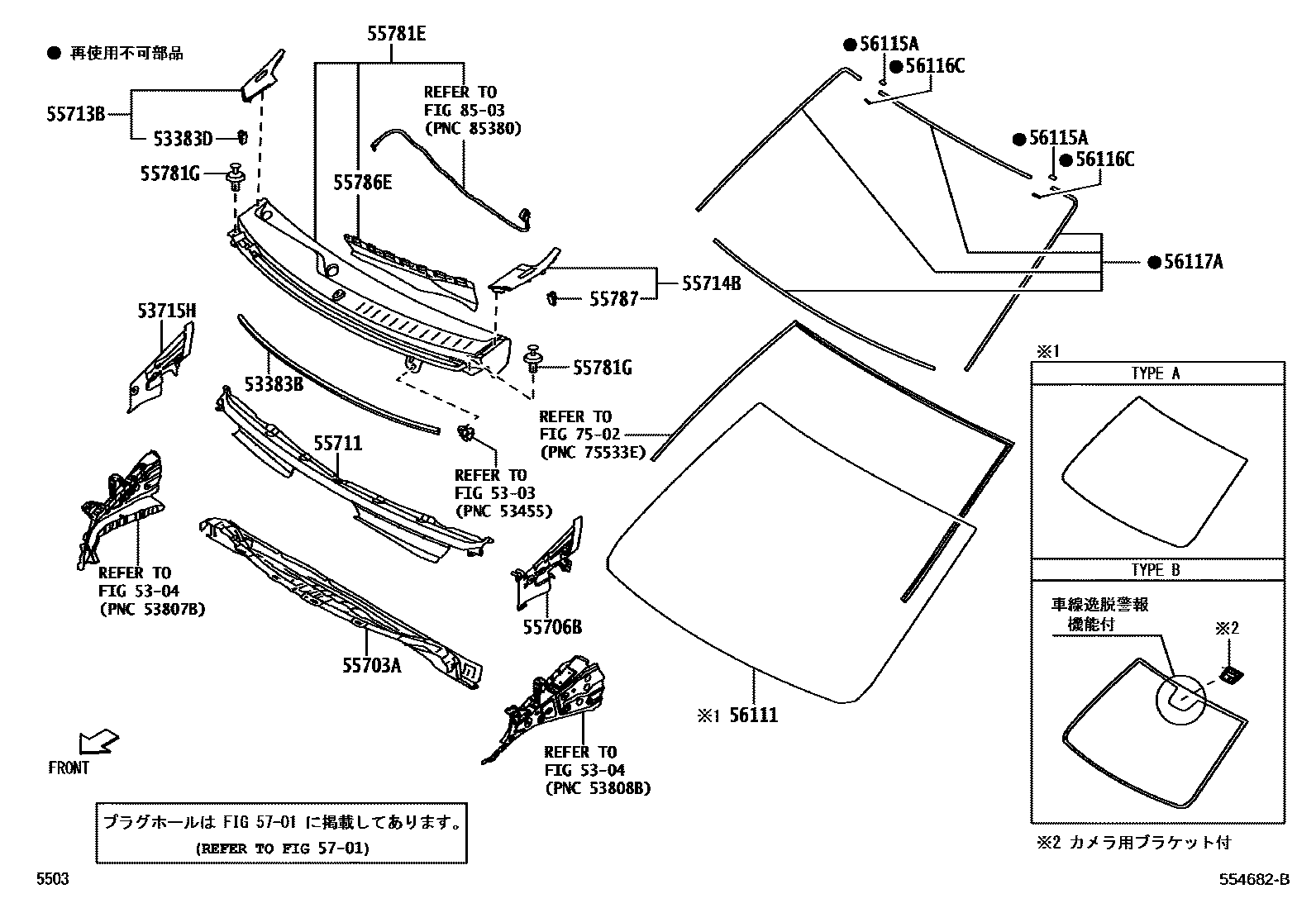

COWL PANEL & WINDSHIELD GLASS

5303HOOD LOCK & HINGE

→ Go to FIG 53-03

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53383BSEAL, HOOD TO COWL TOP

main53383-B2160iLA350,360201705

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main90467-05172×4iLA350,360201705

53715HAPRON, FENDER SIDE, RH

main53715-B2190iLA350,360201705

55703APANEL SUB-ASSY, COWL TOP, INNER

main55703-B2550iLA350,360201705

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55707-B2010iLA350,360201705

55711PANEL, COWL TOP, OUTER

main55711-B2330iLA350,360201705

55713BCOVER, COWL SIDE PANEL HOLE, RH

main53445-B2200iLA350,360201705

55714BCOVER, COWL SIDE PANEL HOLE, LH

main53446-B2200iLA350,360201705

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-B2310iLA350,360201705

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90044-67569×2iLA350,360201705

55786EPLATE, COWL TOP VENTILATOR LOUVER

main55872-B2190iLA350,360201705

55787CLIP, COWL VENTILATOR LOUVER, INNER

main90467-05172×4iLA350,360201705

56111GLASS, WINDSHIELD

main56101-B2340iLA350,360..B,L; LA350,360..G,X201705-201802

main56101-B2341iLA350,360..B,L; LA350,360..G,X201803-201804

main56101-B2342supersedes 56111-B2830iLA350,360..G,X201805

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-97402×2iLA350,360201705

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-97401×2iLA350,360201705

56117ADAM, WINDOW GLASS ADHESIVE

main56117-B2330iLA350,360201705-202207

main56117-B2331iLA350,360202208

5701HOLE PLUG

→ Go to FIG 57-01

7502FRONT MOULDING

→ Go to FIG 75-02

8503WINDSHIELD WASHER

→ Go to FIG 85-03

21 parts on this diagram · 1 diagram in section
