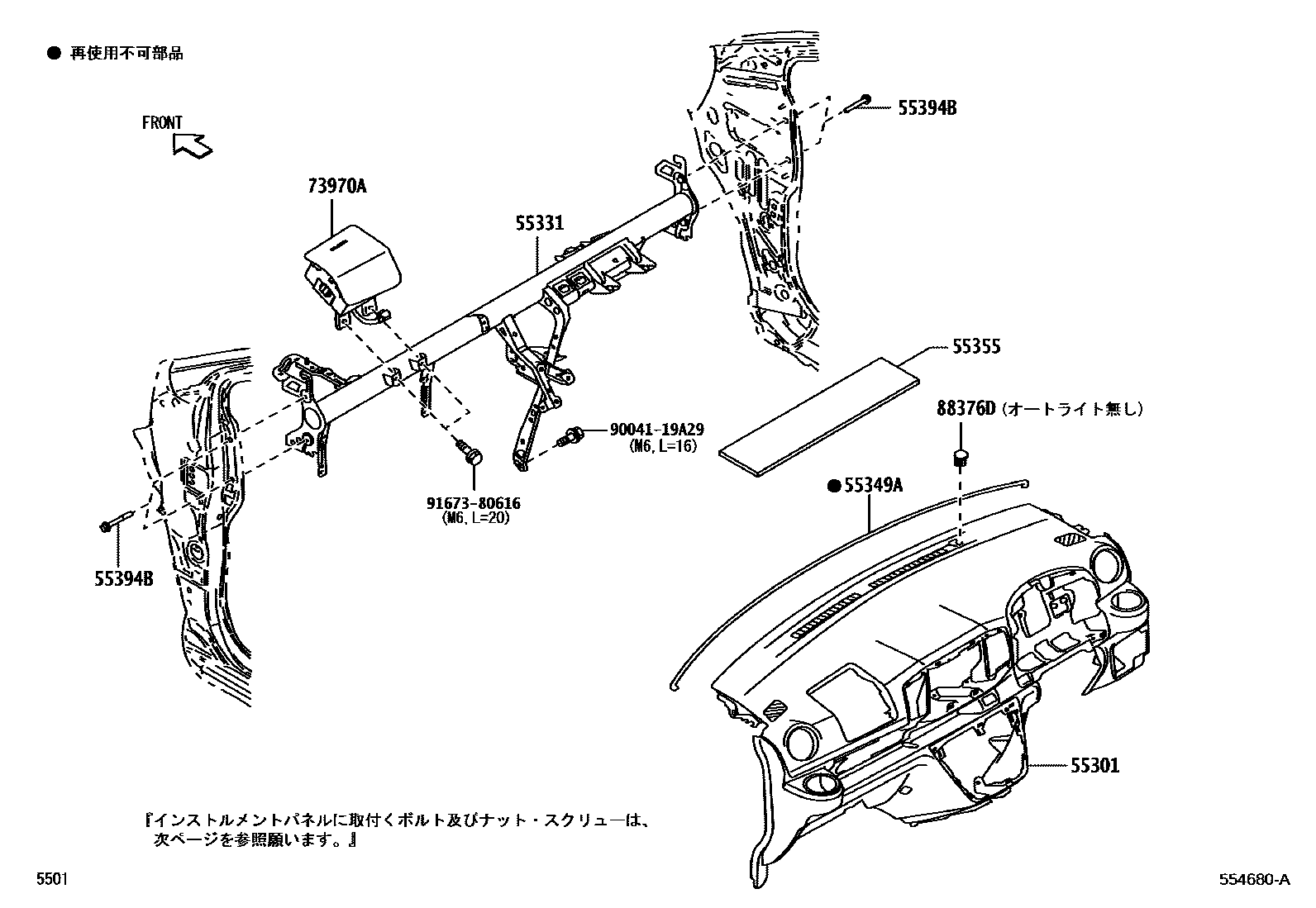

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-B2550-C0iLA350,360..G,X201705

BLACK,TRIM2#

main55311-B2560-C0iLA350,360..B,L201705

BLACK,TRIM2#

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-B2510iLA350,360201705-201908

main55305-B2511iLA350,360201909

55349ACUSHION, INSTRUMENT PANEL

main55349-B1020iLA350,360201705

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-B2210iLA350,360..G,X201705

55394BBOLT, INSTRUMENT PANEL

main90041-19A09×4iLA350,360201705

main90041-19A26×4iLA350,360201705

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-B2350-C0iLA350,360201705

88376DCAP, BLIND

main88376-B2010iLA350,360..B,L,X201705-202012

9004119A29

main90041-19A29

9167380616

main91673-80616

9 parts on this diagram · 4 diagrams in section
