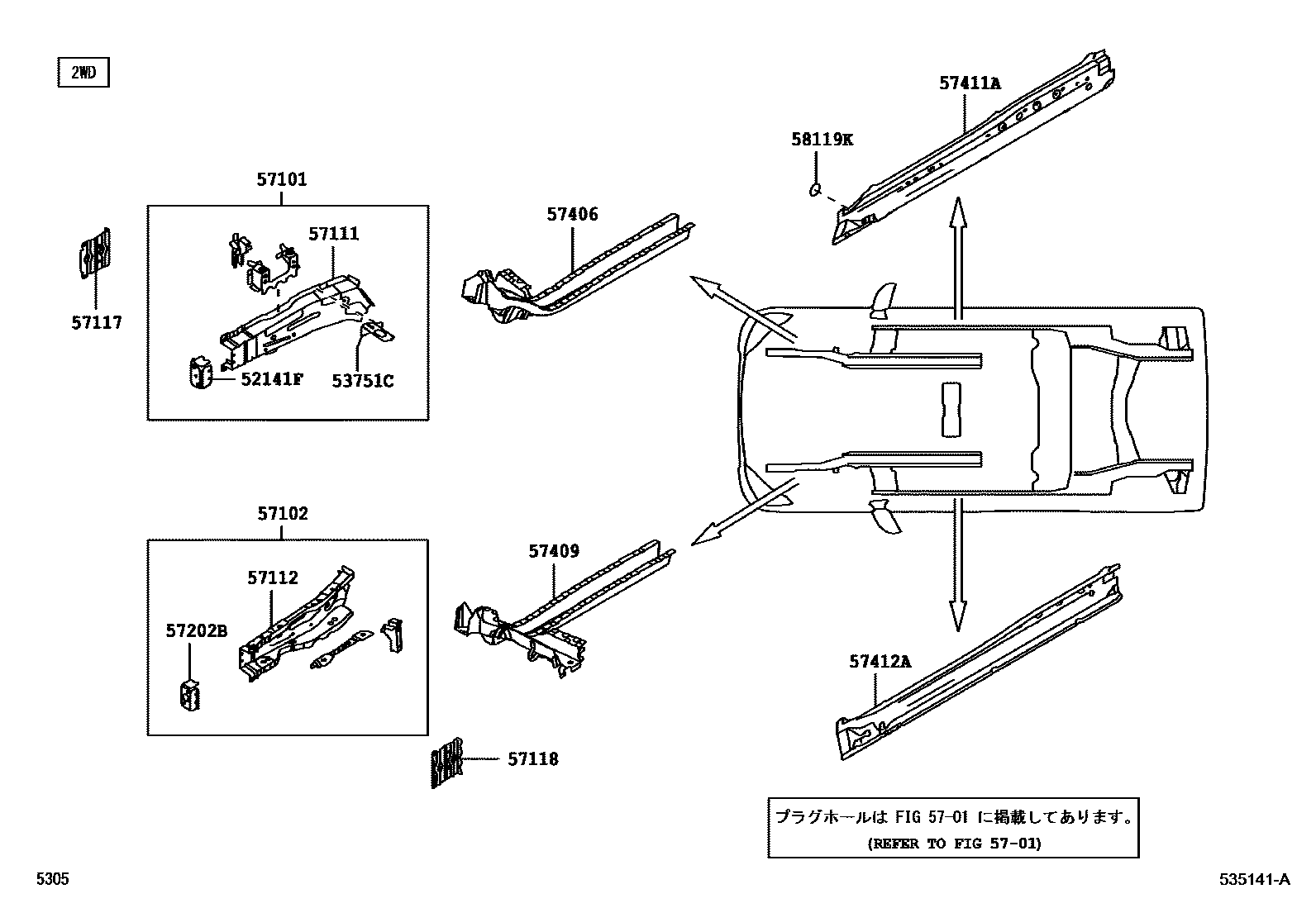

FLOOR SIDE MEMBER

0001 12WD FR 0002 12WD RR 0003 14WD FR 0004 14WD RR

52141FARM, FRONT BUMPER, RH

main53077-B2050iLA350,360201705

53751CBRACKET, CHARCOAL CANISTER MOUNTING

main53751-B2040iLA350,360201705

5701HOLE PLUG

→ Go to FIG 57-01

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main53701-B2470iLA350,360201705

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-B2230iLA350,360201705

57111MEMBER, FRONT SIDE, RH

main57111-B2080iLA350,360201705

57112MEMBER, FRONT SIDE, LH

main57112-B2090iLA350,360201705

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-B2020iLA350,360201705

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57117-B2020iLA350,360201705

57202BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main53078-B2070iLA350,360201705

57406MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57406-B2080iLA350,360201705

57409MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57409-B2090iLA350,360201705

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-B2120iLA350,360201705

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-B2130iLA350,360201705

58119KCOVER, FRONT FLOOR SIDE, FRONT

main58119-B2050iLA350,360201705

15 parts on this diagram · 4 diagrams in section
