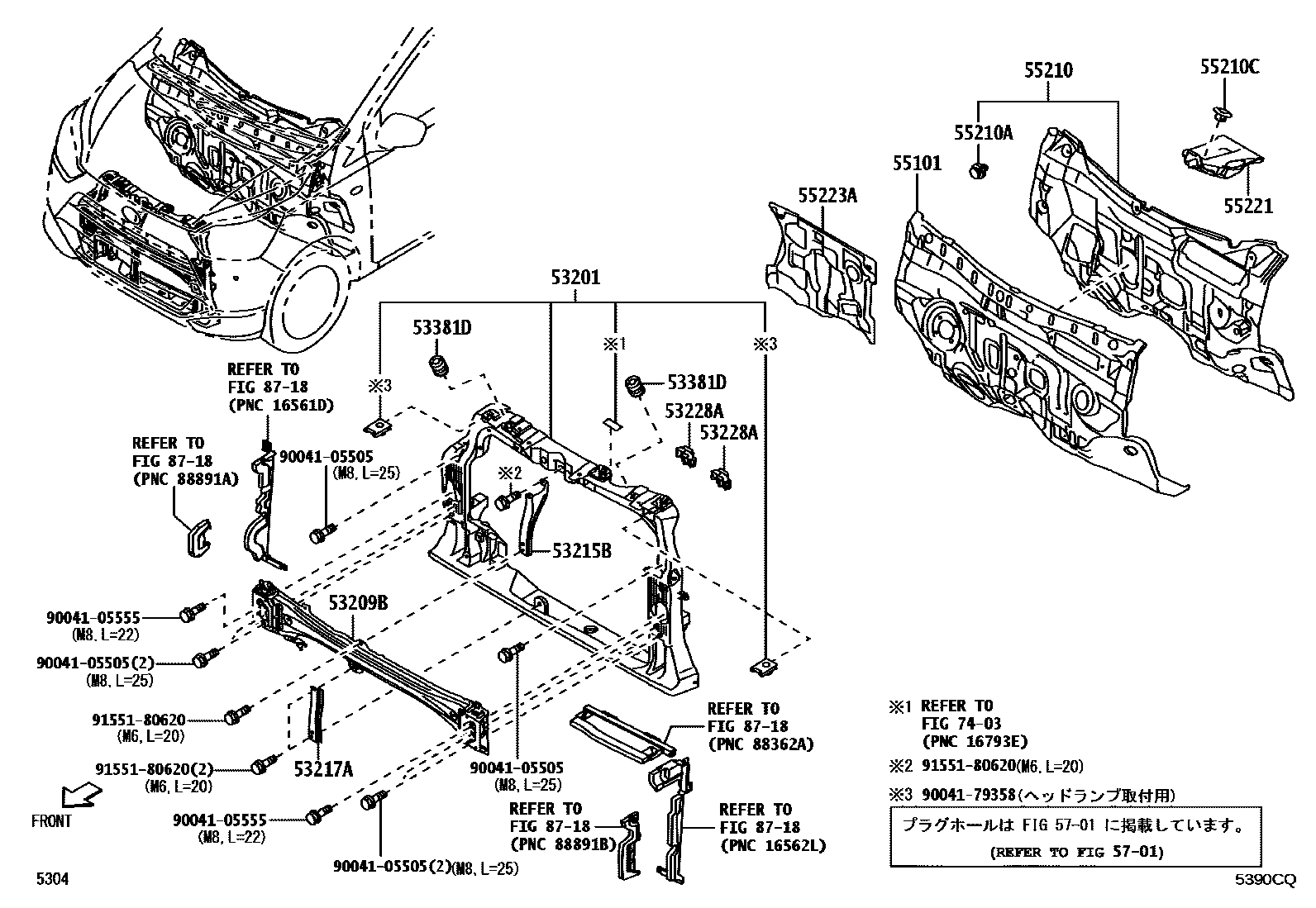

FRONT FENDER APRON & DASH PANEL

0001 1����������� 0002 1����������

53201SUPPORT SUB-ASSY, RADIATOR

main53201-B2390iLA350,360201705

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53210-B2010iLA350,360201705

53215BSUPPORT, HOOD LOCK

main53215-B2210iLA350,360201705

53217ABRACE, HOOD LOCK SUPPORT

main53217-B2070iLA350,360201705

53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-B2060×2iLA350,360201705

53381DBUMPER, HOOD TO FRONT SHROUD

main53381-B2210×2iLA350,360201705

55101PANEL SUB-ASSY, DASH

main55101-B2580iLA350,360201705

55210INSULATOR ASSY, DASH PANEL

main55210-B2420iLA350,360201705

55210ACLIP

main90467-11122×4iLA350,360201705

55210CCLIP

main58199-B2010-C0iLA350,360201705-201812

BLACK

main90044-67397iLA350,360201901

55221BOARD, DASH PANEL SILENCER

main55221-B2040iLA350,360201705

55223AINSULATOR, DASH PANEL, OUTER

main55223-B2120iLA350,360201705

5701HOLE PLUG

→ Go to FIG 57-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8718HEATING & AIR CONDITIONING - COOLER PIPING

→ Go to FIG 87-18

9004105505

main90041-05505

9004105555

main90041-05555

9004179358

main90041-79358

9155180620

main91551-80620

19 parts on this diagram · 2 diagrams in section
