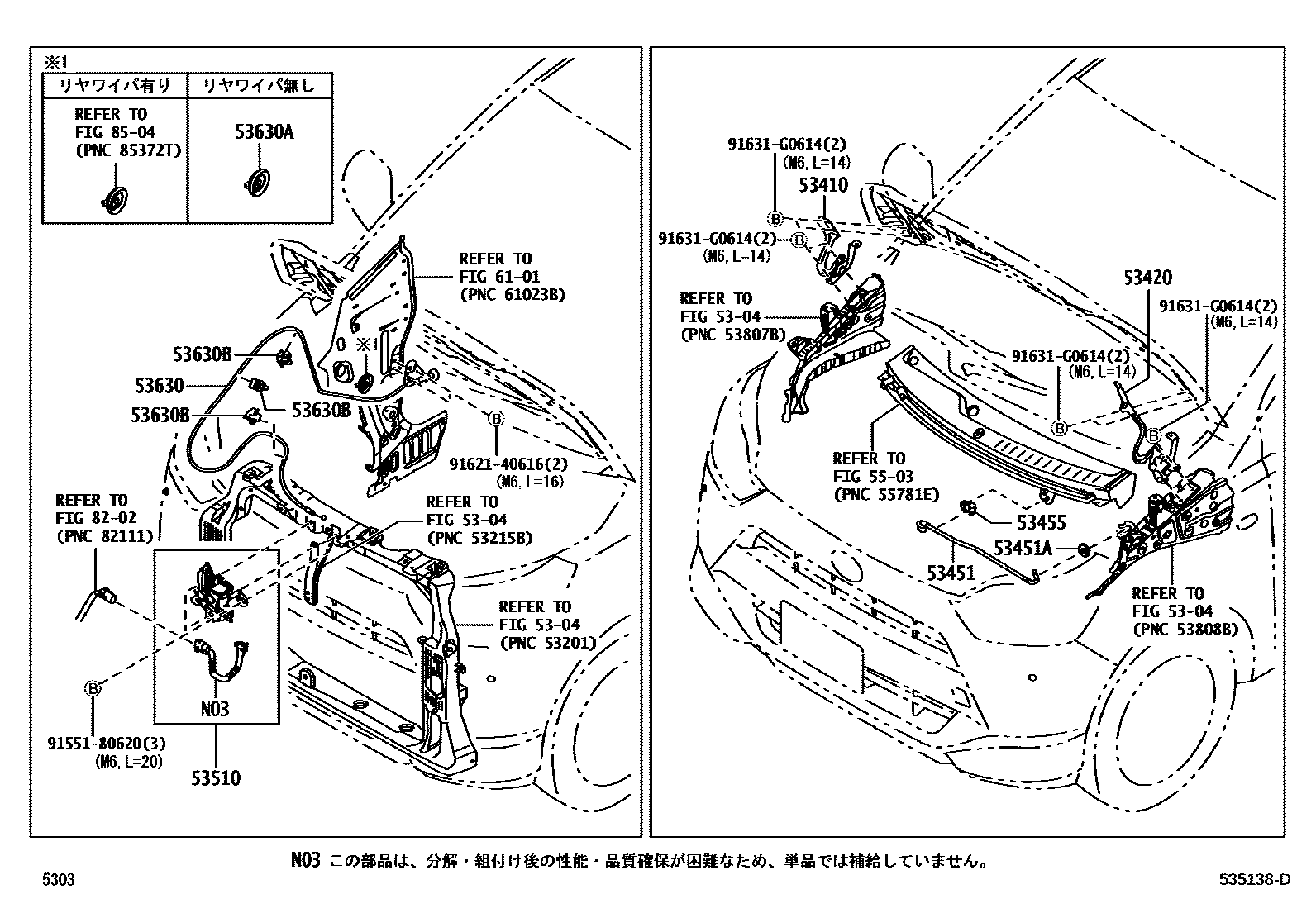

HOOD LOCK & HINGE

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53410HINGE ASSY, HOOD, RH

main53401-B2290iLA350,360201705

53420HINGE ASSY, HOOD, LH

main53402-B2290iLA350,360201705

53451ROD, HOOD SUPPORT

main53451-B2220iLA350,360201705

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90044-80667iLA350,360201705-202009

main90044-80679iLA350,360202010

53455CLAMP, HOOD SUPPORT ROD

main53455-B2131iLA350,360201705

53510LOCK ASSY, HOOD

main53510-B2540iLA350,360201705

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-B2430iLA350,360201705

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main85373-B2010iLA350201705-202410

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90044-64735×3iLA350,360201705

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

6101SIDE MEMBER

→ Go to FIG 61-01

8202WIRING & CLAMP

→ Go to FIG 82-02

8504REAR WASHER

→ Go to FIG 85-04

9155180620

main91551-80620

9162140616

main91621-40616

91631G0614

main91631-G0614

17 parts on this diagram · 1 diagram in section
