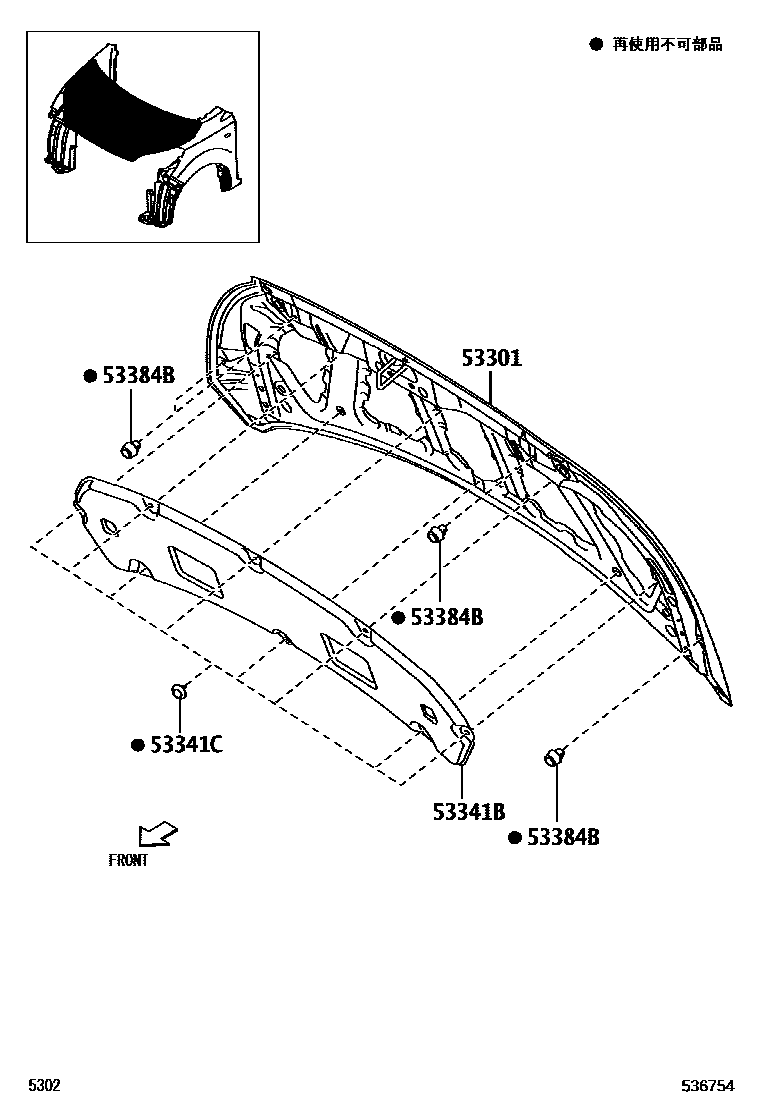

HOOD & FRONT FENDER

0001 1ILLUST NO.1 OF 4 0002 1ILLUST NO.2 OF 4 0003 1ILLUST NO.3 OF 4 0004 1ILLUST NO.4 OF 4

53301HOOD SUB-ASSY

main53301-B2A00iLA350,360201705

53341BINSULATOR, HOOD

main53341-B2290iLA350,360..G,X201705

53341CCLIP(FOR HOOD INSULATOR)

main90044-67470×8iLA350,360..G,X201705-201808

main90044-67634×8iLA350,360..G,X201809

53384BCUSHION, HOOD, CENTER

main53384-B2010×4iLA350,360201705

4 parts on this diagram · 4 diagrams in section
