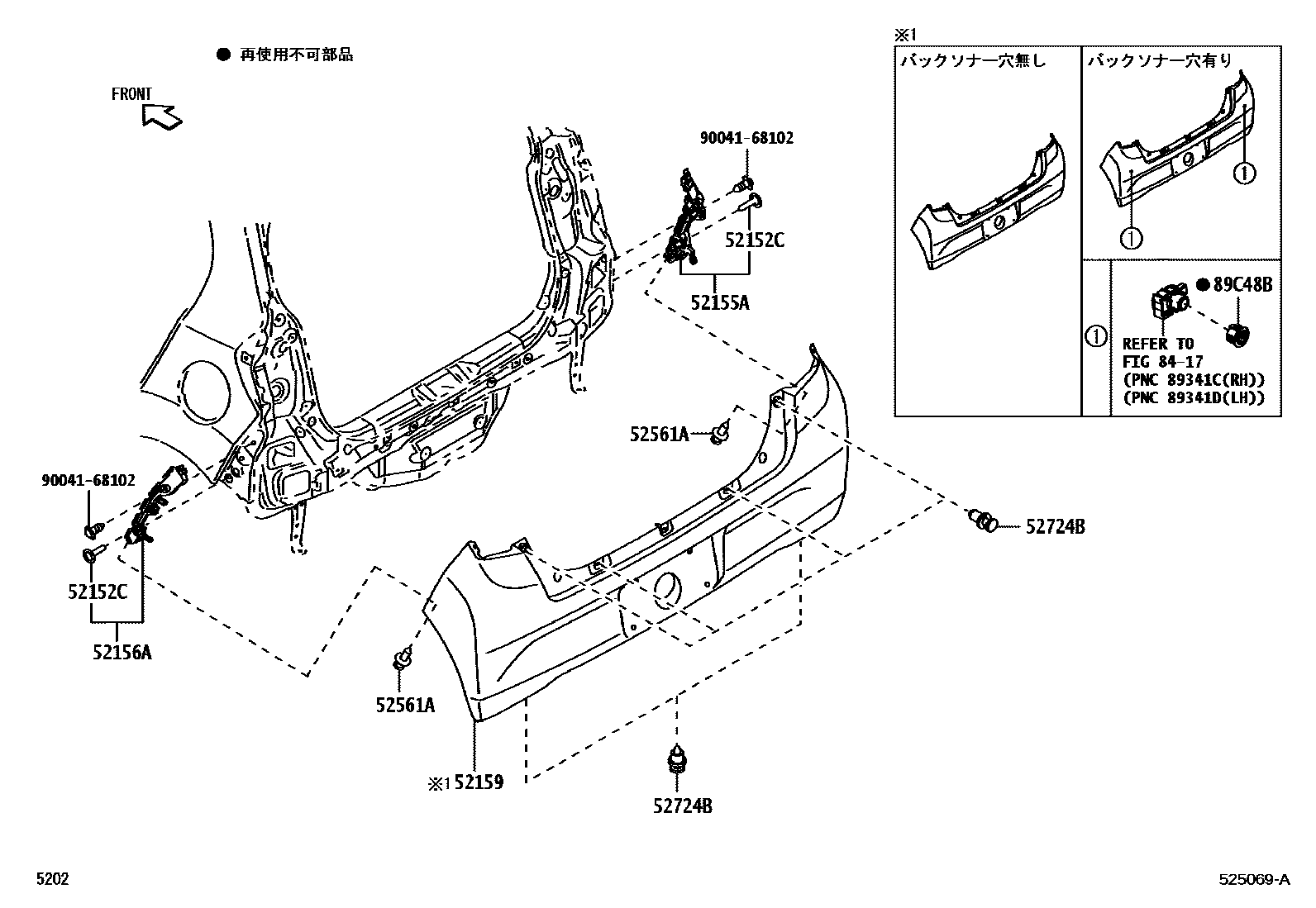

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52152CCLIP, REAR BUMPER SIDE

main90467-09237×2iLA350,360201705

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-B2370iLA350,360201705-201806

main52155-B2371iLA350,360201807

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-B2380iLA350,360201705-201806

main52156-B2381iLA350,360201807

52159COVER, REAR BUMPER

main52159-B2B20-A0supersedes 52159-B2B10-A0iLA350,360..B,L; LA350,360..G,X201705-202410

main52159-B2B20-A1supersedes 52159-B2B10-A1iLA350,360..G,X; LA350,360..L201705-202010

main52159-B2B20-A2supersedes 52159-B2B10-A2iLA350,360..G,X; LA350,360..L202010-202410

main52159-B2B20-B0supersedes 52159-B2B10-B0iLA350,360..B,L; LA350,360..G,X201705-202410

main52159-B2B20-C0supersedes 52159-B2B10-C0iLA350,360..G,X; LA350,360..L201705-202410

main52159-B2B20-D0supersedes 52159-B2B10-D0iLA350,360..G,X; LA350,360..L201705-202410

main52159-B2B20-D1supersedes 52159-B2B10-D1iLA350,360..G,X; LA350,360..L201705-202001

main52159-B2B20-D2supersedes 52159-B2B10-D2iLA350,360..G,X; LA350,360..L202001-202410

main52159-B2B20-F0iLA350,360..G,X; LA350,360..L201705-202410

main52159-B2B20-J0iLA350,360..G,X; LA350,360..L201705-202410

main52159-B2B20-J1supersedes 52159-B2B10-J1iLA350,360..B,L; LA350,360..G,X201705-202410

main52159-B2D10-A0iLA350,360..B,L,X202410

main52159-B2D10-A1iLA350,360..G,L,X202410

main52159-B2D10-B0iLA350,360202410

main52159-B2D10-C0iLA350,360..G,L,X202410

main52159-B2D10-D0iLA350,360..G,L,X202410

main52159-B2D10-D1iLA350,360..G,L,X202410

main52159-B2D10-F0iLA350,360..G,X202410

main52159-B2D10-J0iLA350,360..G,X202410

main52159-B2D10-J1iLA350,360202410

52561ACLIP(FOR REAR BUMPER RETAINER)

main90044-67555×2iLA350,360201901

main90044-67585×2iLA350,360201705-201901

52724BCLIP, REAR BUMPER EXTENSION MOULDING, NO.2

main90044-68320×6iLA350,360201705-201906

main90044-68378×6iLA350,360201907

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-B2020-A0×2iLA350,360..B,L; LA350,360..G,X201705-202410

main89348-B2020-A1×2iLA350,360..G,X; LA350,360..L201705-202010

main89348-B2020-A3×2iLA350,360..G,X; LA350,360..L202010-202410

main89348-B2020-B0×2iLA350,360..B,L; LA350,360..G,X201705-202410

main89348-B2020-C0×4iLA350,360..G,L,X202410

BLACK M.M.,X07

main89348-B2020-D0×2iLA350,360..G,X; LA350,360..L201705-202410

main89348-B2020-D1×2iLA350,360..G,X; LA350,360..L202001-202410

main89348-B2020-D4×2iLA350,360..G,X; LA350,360..L201705-202001

main89348-B2020-F0×2iLA350,360..G,X; LA350,360..L201705-202410

main89348-B2020-J2×2iLA350,360..G,X; LA350,360..L201705-202410

main89348-B2020-J8×2iLA350,360..B,L; LA350,360..G,X201705-202410

9004168102

main90041-68102

9 parts on this diagram · 2 diagrams in section
