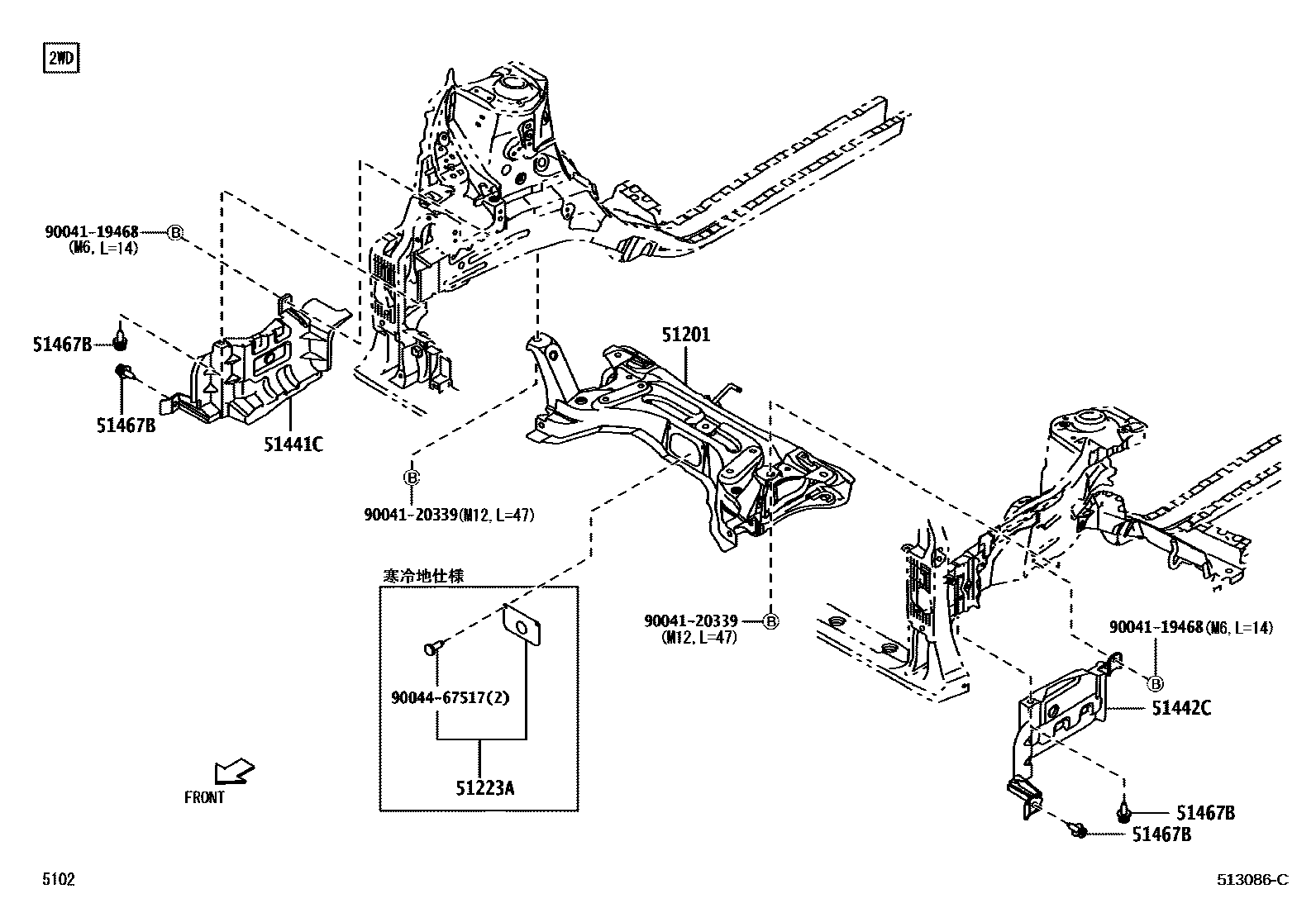

SUSPENSION CROSSMEMBER & UNDER COVER

0001 12WD 0002 12WD 0003 14WD

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-B2210iLA360201705

main51201-B2220iLA350201705

51223ACOVER, ENGINE MOUNTING HOLE

main51223-B2070iLA350202410

51441CCOVER, ENGINE UNDER, RH

main51441-B2060iLA350,360201705

51442CCOVER, ENGINE UNDER, LH

main51442-B2060iLA350,360201705

51467BRETAINER, ENGINE UNDER COVER

main51467-B2020×4iLA350,360201705-201812

main55788-52040×4iLA350,360201901

9004119468

main90041-19468

9004120339

main90041-20339

9004467517

main90044-67517

8 parts on this diagram · 3 diagrams in section
