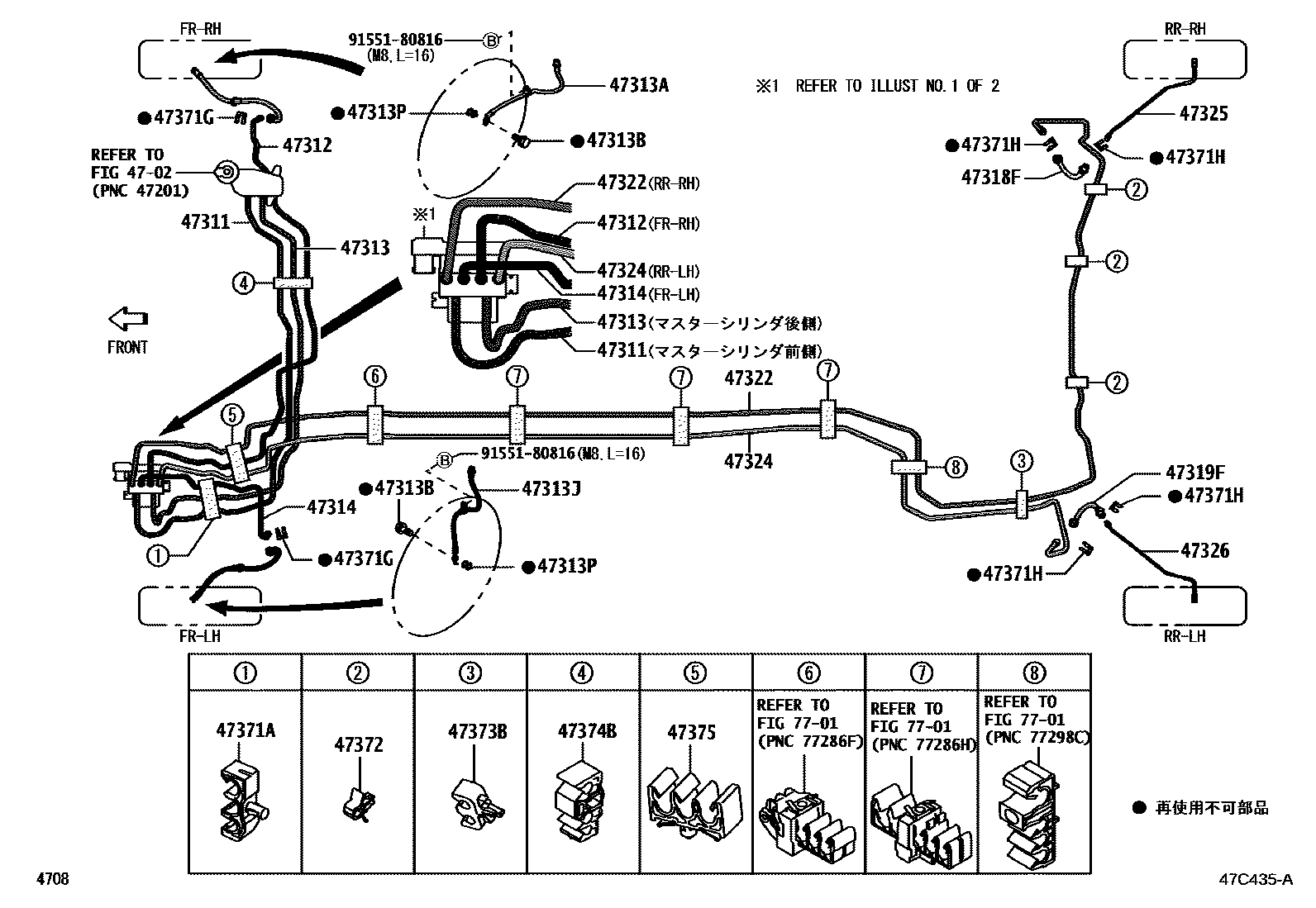

BRAKE TUBE & CLAMP

0001 1ILLUST NO.1 OF 2 0002 1ILLUST NO.2 OF 2

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-B2590iLA350,360201705

47312TUBE, FRONT BRAKE, NO.2

main47312-B2480iLA350,360201705

47313TUBE, FRONT BRAKE, NO.3

main47313-B2600iLA350,360201705

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90049-22315iLA350,360201705

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iLA350,360201705

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90049-22316iLA350,360201705

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iLA350,360201705

47314TUBE, FRONT BRAKE, NO.4

main47314-B2330iLA350,360201705

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90049-22202iLA350..B,G,L,X201705

main90049-22317iLA360..B,G,L,X201705

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90049-22202iLA350..B,G,L,X201705

main90049-22317iLA360..B,G,L,X201705

47322TUBE, REAR BRAKE, NO.2

main47322-B2720iLA350..B,G,L,X201705

main47322-B2730iLA360..B,G,L,X201705

47324TUBE, REAR BRAKE, NO.4

main47324-B2720iLA350..B,G,L,X201705

main47324-B2730iLA360..B,G,L,X201705

47325TUBE, REAR BRAKE, NO.5

main47325-B2030iLA360..B,G,L,X201705

main47325-B2060iLA350..B,G,L,X201705

47326TUBE, REAR BRAKE, NO.6

main47326-B2030iLA360..B,G,L,X201705

main47326-B2060iLA350..B,G,L,X201705

47371ACLAMP, BRAKE TUBE, NO.1

main47372-B2030iLA350,360201705

47371GCLAMP, BRAKE TUBE, NO.11

main90044-65441×2iLA350,360201705

47371HCLAMP, BRAKE TUBE, NO.12

main90044-65441×4iLA350,360201705

47372CLAMP, BRAKE TUBE, NO.2

main90044-64889×2iLA350; LA360201705-201911

main90044-64918×2iLA350; LA360201912

47373BCLAMP, BRAKE TUBE, NO.3

main90044-64891iLA350,360201705

47374BCLAMP, BRAKE TUBE, NO.4

main90044-64892iLA350,360201705

47375CLAMP, BRAKE TUBE, NO.5

main47372-B2070iLA350,360201705

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9155180816

main91551-80816

24 parts on this diagram · 2 diagrams in section
