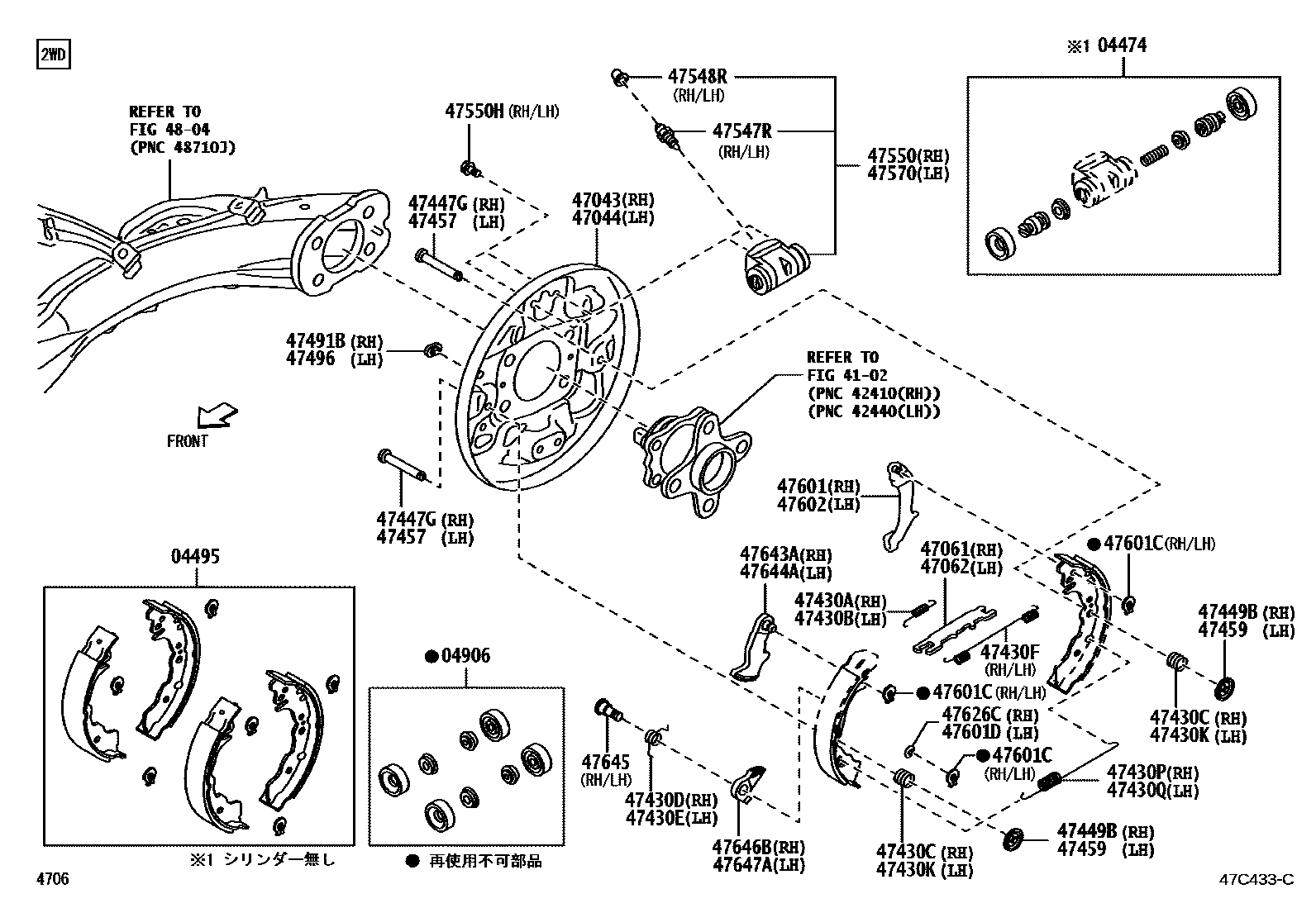

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 12WD 0002 14WD

04474CYLINDER KIT, REAR WHEEL

main04474-B1010×2iLA350,360201705

04495SHOE KIT, REAR BRAKE

main04495-B1081iLA350..B,G,L,X201705

main04495-B2410iLA360..B,G,L,X201705

04906CUP KIT, REAR WHEEL CYLINDER

main04906-B2010iLA350,360201705

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-B1030iLA350201705

main47043-B2100iLA360201705

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-B1030iLA350201705

main47044-B2100iLA360201705

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-B2040iLA360201705-201903

main47061-B2041iLA360201904

main47613-B2050iLA350201705

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-B2040iLA360201705-201903

main47062-B2041iLA360201904

main47613-B2050iLA350201705

47430ASPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90045-06196iLA350..B,G,L,X201705

47430BSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90045-06199iLA350..B,G,L,X201705

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90045-01816×2iLA350201705

main90045-01854×2iLA360201705

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90045-08383iLA350..B,G,L,X201705

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90045-08384iLA350..B,G,L,X201705

47430FSPRING, TENSION(FOR REAR BRAKE ADJUST CABLE)

main90045-06255×2iLA350..B,G,L,X201705

47430KSPRING(FOR REAR BRAKE SHOE HOLD DOWN, NO.2)

main90045-01816×2iLA350201705

main90045-01854×2iLA360201705

47430PSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main44699-B2010iLA350201705

main47459-B2020iLA360201705

47430QSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main44699-B2010iLA350201705

main47459-B2020iLA360201705

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87204×2iLA350201705

main47447-87501×2iLA360201705

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-97201×2iLA350,360201705

47457PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87204×2iLA350201705

main47447-87501×2iLA360201705

47459CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-97201×2iLA350,360201705

47491BPLUG, HOLE(FOR REAR BRAKE)

main47491-B1010iLA350,360201705

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-B1010iLA350,360201705

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-87203×2iLA350,360201705

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-87501×2iLA350,360201705

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-B2020iLA350201705

main47560-B5010iLA360201705

47550HBOLT(FOR REAR WHEEL CYLINDER)

main90041-19848×4iLA350,360201705

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-B2020iLA350201705

main47560-B5010iLA360201705

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-B2040iLA350..B,G,L,X201705

47601CWASHER, C(FOR REAR BRAKE)

main90042-13007×6iLA350201705

47601DWASHER, WAVE(FOR REAR BRAKE)

main90042-06041iLA350201705

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-B2040iLA350..B,G,L,X201705

47626CWASHER, WAVE

main90042-06041iLA350201705

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47608-87201iLA350201705

main47643-B2020iLA360201705

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47609-87201iLA350201705

main47644-B2020iLA360201705

47645PIN, AUTOMATIC ADJUST LEVER(FOR REAR BRAKE)

main47645-87201×2iLA350..B,G,L,X201705

47646BLATCH, AUTOMATIC ADJUST, RH(FOR REAR BRAKE)

main47646-97201iLA350..B,G,L,X201705

47647ALATCH, AUTOMATIC ADJUST, LH(FOR REAR BRAKE)

main47647-97201iLA350..B,G,L,X201705
