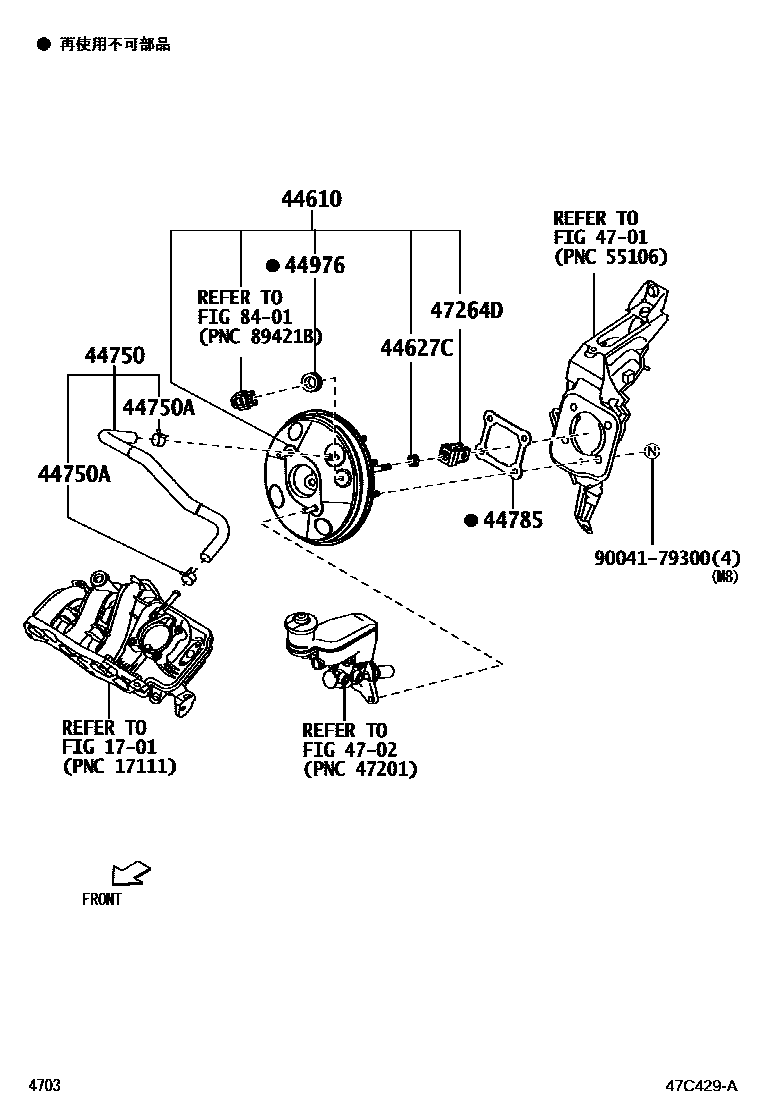

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-B2630iLA350,360201705-201711

main44610-B2631iLA350,360201712-201901

main44610-B2632iLA350,360201902-201910

main44610-B2633iLA350,360201911

44627CNUT, BOOSTER SLEEVE CYLINDER

main94120-40800iLA350,360201705

44750HOSE ASSY, VACUUM

main44750-B2261iLA350,360201705

44750ACLIP(FOR VACUUM HOSE ASSY)

main90044-67161×2iLA350,360201705

44785GASKET, BRAKE BOOSTER

main47278-87703iLA350,360201705

44976SEAL, BOOSTER

main44685-B2010iLA350,360201705

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-B2050iLA350,360201705

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004179300

main90041-79300

12 parts on this diagram · 1 diagram in section
