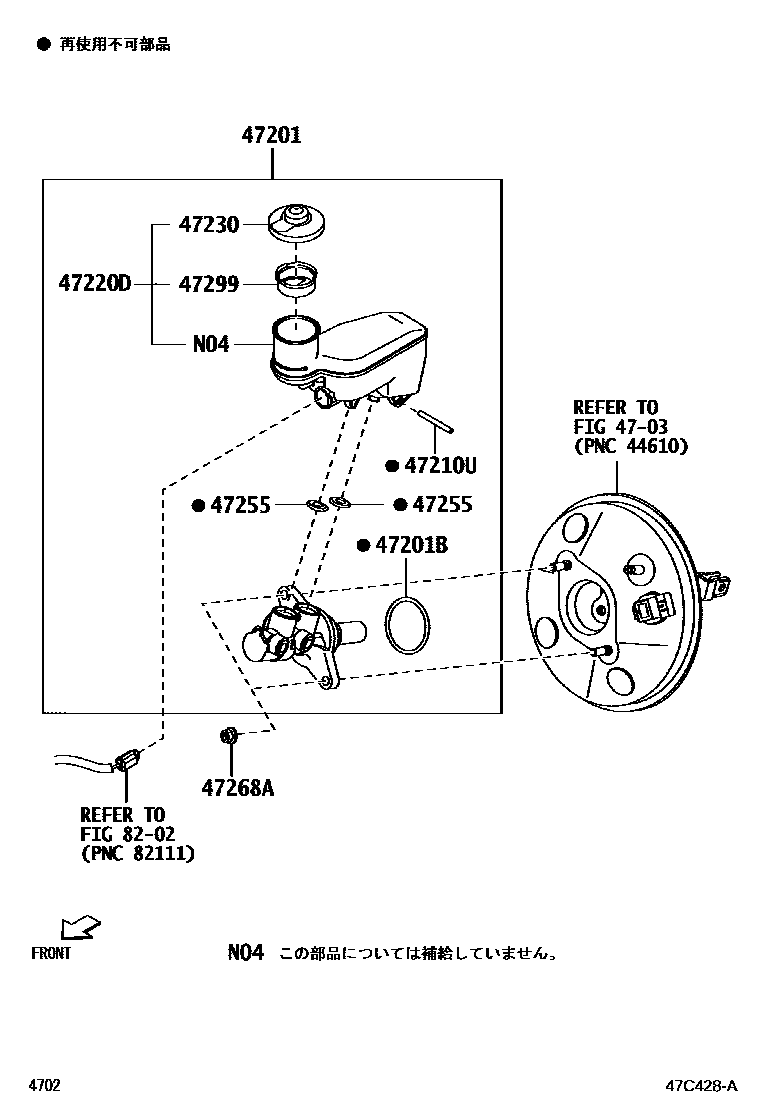

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B2290iLA350,360201705

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01373iLA350,360201705

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90042-43029iLA350,360201705

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-B2250iLA350,360201705

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-B4010iLA350,360201705

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-B2050×2iLA350,360201705

47268ANUT, BRAKE MASTER CYLINDER

main90041-79124×2iLA350,360201705

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-B2030iLA350,360201705
