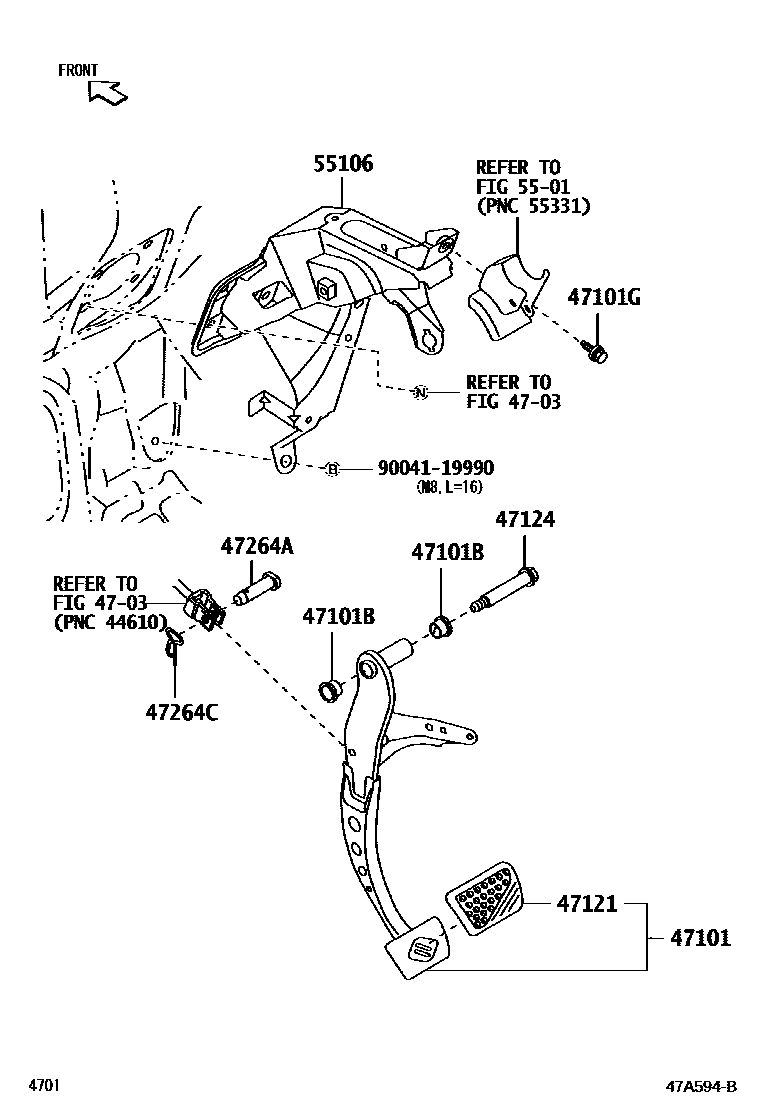

BRAKE PEDAL & BRACKET

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101PEDAL SUB-ASSY, BRAKE

main47110-B2410iLA350,360201705

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121×2iLA350,360201705

47101GBOLT, BRAKE PEDAL STOP, NO.1

main90041-19A17iLA350,360201705

47121PAD, BRAKE PEDAL

main47121-B2010iLA350,360201705

47124SHAFT, BRAKE PEDAL

main31324-B2010iLA350,360201705

47264APIN(FOR PUSH ROD)

main90042-40151iLA350,360201705

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iLA350,360201705

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-B2200iLA350,360201705-201904

main55106-B2440iLA350,360201904

9004119990

main90041-19990

11 parts on this diagram · 1 diagram in section
