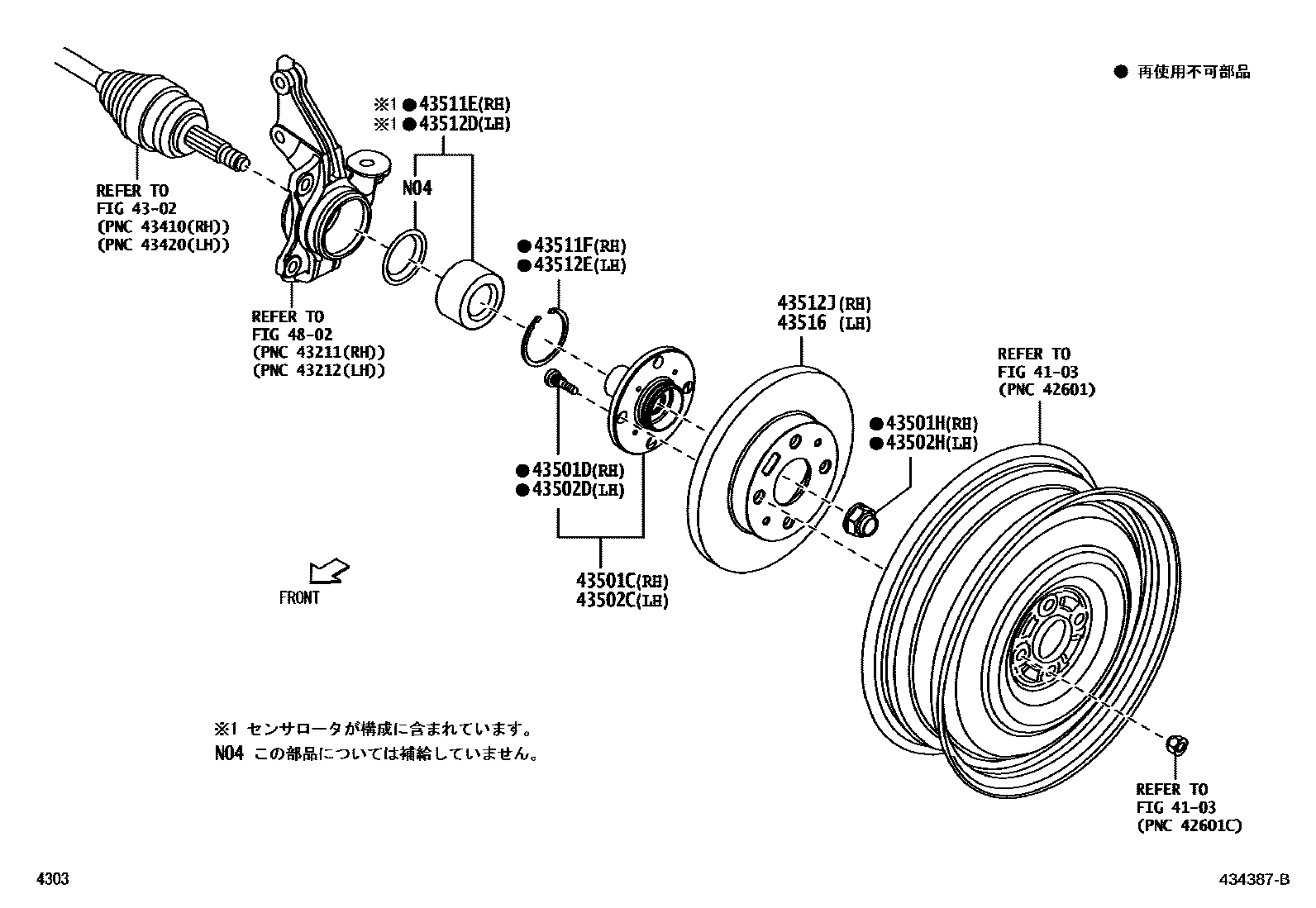

FRONT AXLE HUB

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-B2030iLA350,360201705

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90049-12056×4iLA350,360201705

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90041-79274iLA350,360201705

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-B2030iLA350,360201705

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90049-12056×4iLA350,360201705

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90041-79274iLA350,360201705

43511EBEARING (FOR FRONT AXLE HUB RH)

main43560-B2021iLA350,360201705-201904

main43560-B2022iLA350,360201905

main43560-B2030iLA350,360201705-201904

main43560-B2031iLA350,360201905

43511FRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90045-21163iLA350,360201705

43512DBEARING (FOR FRONT AXLE HUB LH)

main43560-B2021iLA350,360201705-201904

main43560-B2022iLA350,360201905

main43560-B2030iLA350,360201705-201904

main43560-B2031iLA350,360201905

43512ERING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90045-21163iLA350,360201705

43512JDISC, FRONT RH

main43512-B2140iLA350,360201705

43516DISC, FRONT LH

main43512-B2140iLA350,360201705

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

15 parts on this diagram · 1 diagram in section
