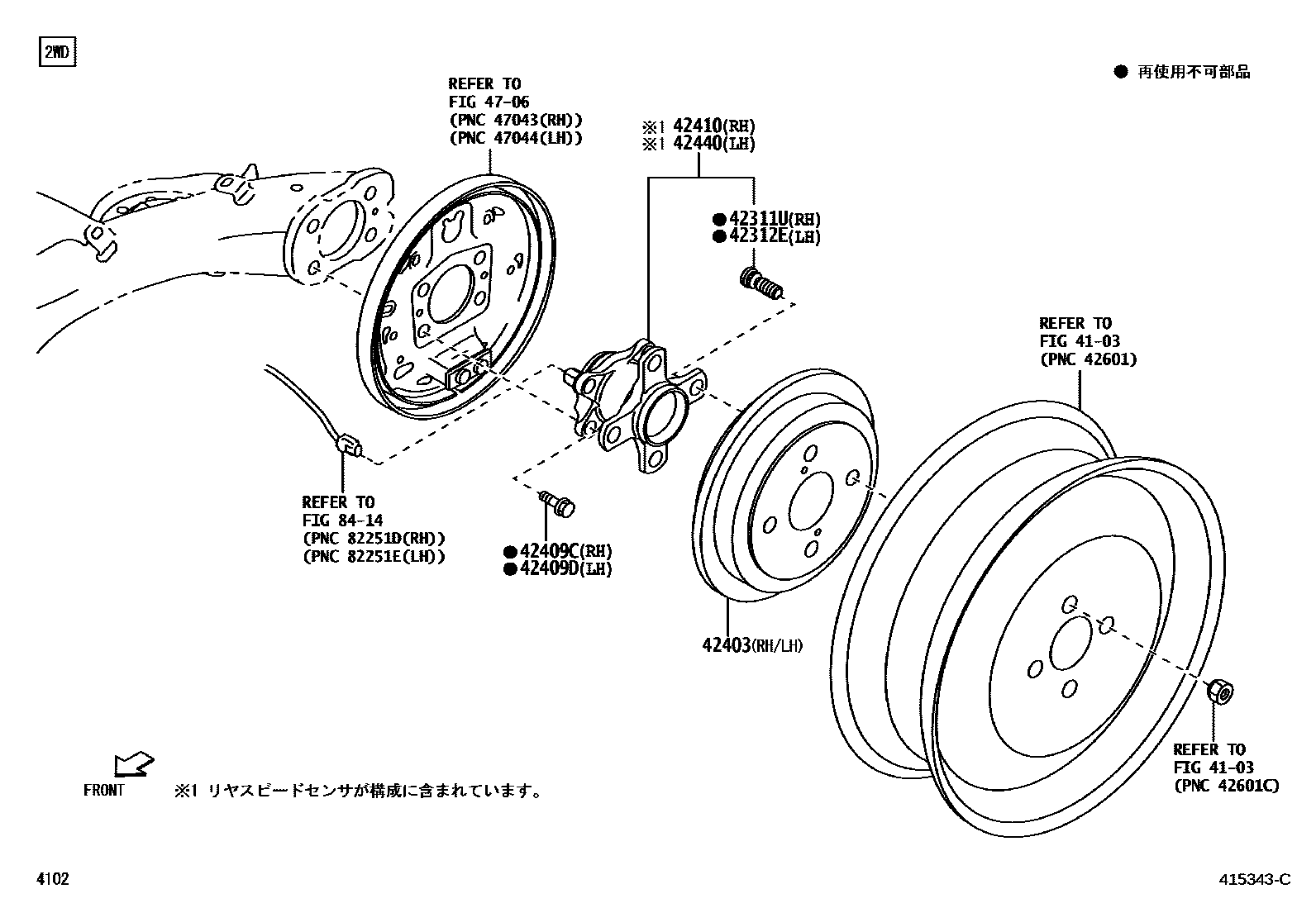

REAR AXLE SHAFT & HUB

0001 12WD 0002 14WD

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42311UBOLT, HUB(FOR REAR AXLE RH)

main90049-12055×4iLA360201705

main90049-12062×4iLA350201705

42312SHAFT, REAR AXLE, LH

main42312-B2030iLA360201811

main42312-B5010iLA360201705-201811

42312EBOLT, HUB(FOR REAR AXLE LH)

main90049-12055×4iLA360201705

main90049-12062×4iLA350201705

42403DRUM SUB-ASSY, REAR BRAKE

main42431-B2080×2iLA360..B,G,L,X201705

main42431-B2090×2iLA350..B,G,L,X201705

42409CBOLT (FOR REAR AXLE BEARING RH)

main90041-01650×4iLA350201705

42409DBOLT (FOR REAR AXLE BEARING LH)

main90041-01650×4iLA350201705

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-B2031iLA350201709

main42410-B2102iLA350201705-201708

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-B2031iLA350201709

main42410-B2102iLA350201705-201708

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

8414ABS & VSC

→ Go to FIG 84-14
