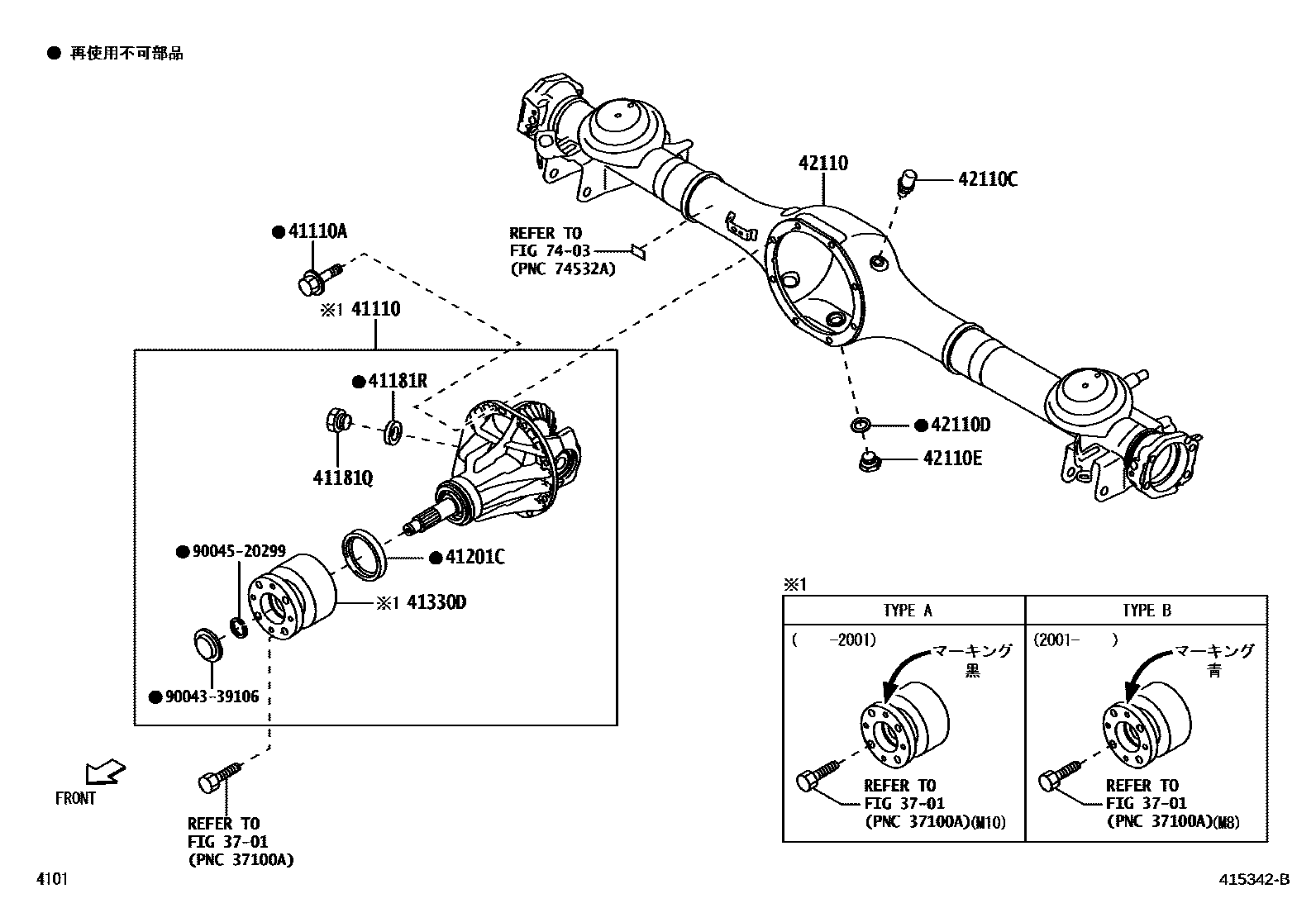

REAR AXLE HOUSING & DIFFERENTIAL

3701PROPELLER SHAFT & UNIVERSAL JOINT

→ Go to FIG 37-01

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-B2190iLA360201705-202001

main41110-B2300iLA360202001

41110ABOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)

main90041-01651×8iLA360201705

41181QPLUG(FOR REAR DIFFERENTIAL CARRIER)

main90043-41046iLA360201705

41181RGASKET(FOR REAR DIFFERENTIAL CARRIER PLUG)

main90044-30311iLA360201705

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90043-11418iLA360201705

41330DCOUPLING ASSY, TRANSMISSION

main41330-B2040iLA360201705-202001

main41330-B2060iLA360202001

42110HOUSING ASSY, REAR AXLE

main42110-B2022iLA360201705-201902

main42110-B2023iLA360201903

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90049-15026iLA360201705-201803

main90049-15059iLA360201804

42110DGASKET (FOR REAR AXLE HOUSING DRAIN PLUG)

main90044-30237iLA360201705

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90043-41046iLA360201705

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9004339106

main90043-39106

9004520299

main90045-20299

14 parts on this diagram · 1 diagram in section
